Regina
ULF UCC Series

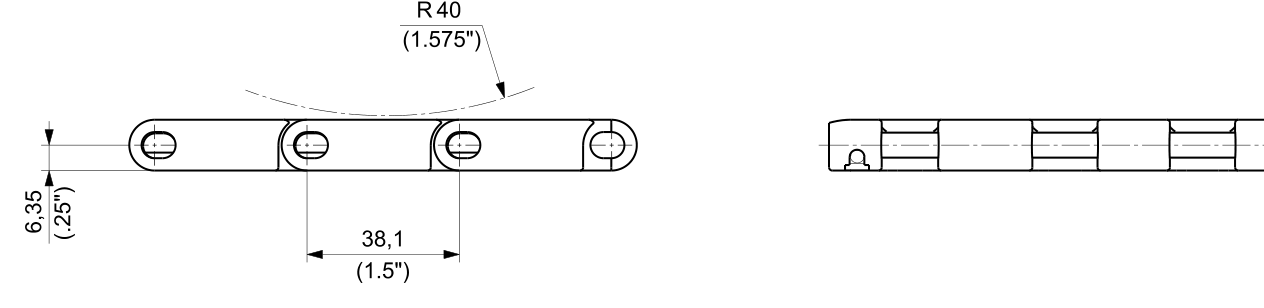

1½" pitch heavy duty chain, 12,7 mm (0.5") thickness, solid top. Stainless steel pins for ideal performance in heavy duty applications. No gap between the plates even when engaging in the sprockets. Particularly suitable for glass bottling lines and the glass manufacturing industry. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
66100111 |
82.6 mm (3.25")
|
12.7 mm
|
2505 N
|
1.26 kg
|
66100141 |
114.3 mm (4.50")
|
12.7 mm
|
3469 N
|
1.74 kg
|
66100161 |
152.4 mm (6.00")
|
12.7 mm
|
4625 N
|
2.32 kg
|
66100151 |
190.5 mm (7.50")
|
12.7 mm
|
5781 N
|
2.93 kg
|
66100191 |
304.8 mm (12.00")
|
12.7 mm
|
9270 N
|
4.64 kg
|
66100181 |
381 mm (15.00")
|
12.7 mm
|
11590 N
|
5.81 kg
|
66100221 |
457.2 mm (18.00")
|
12.7 mm
|
13900 N
|
6.97 kg
|
66100231 |
609.6 mm (24.00")
|
12.7 mm
|
18540 N
|
9.27 kg
|
No products match the selected filters.
Product Information
- Type
- ULTOP
- Pitch
38.1mm- Thickness
12.7mm- Material
- ULF — Ultra Low Friction Polyester Resin
- Packaging
- Rolls of
3.048m
ULF — Ultra Low Friction Polyester Resin
Polyester resin that offers good mechanical strength in combination with low coefficient of friction.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
