Regina

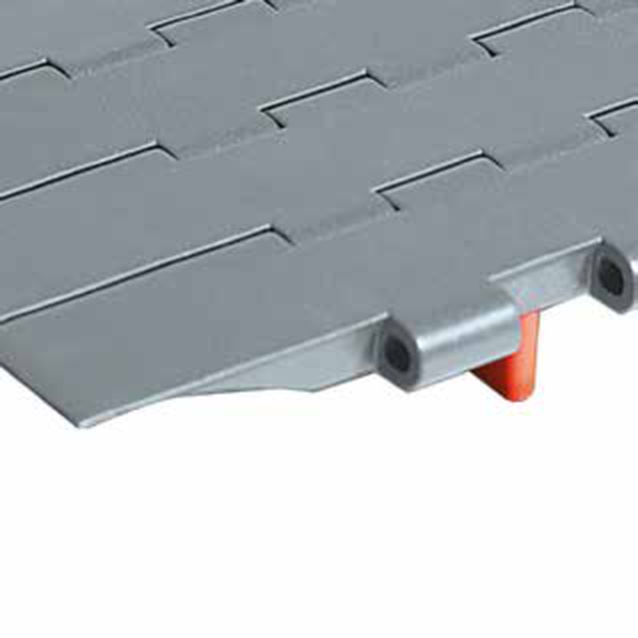

ULF UCCG ATM Series
Active transfer modules UCCG ATM allow transfer of products between two 90° conveyor tracks without using dead plates. The special wing shaped module profile supports the products dynamically during transfer on the take-away belt. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote

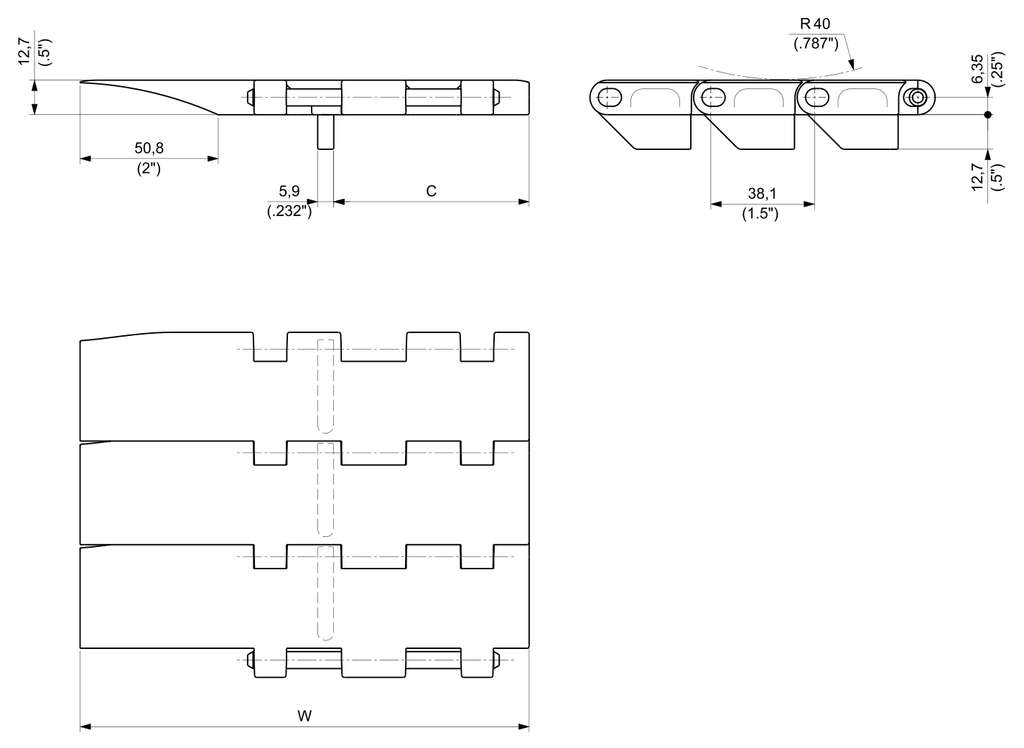

| Code | Width W | Plate thickness | Tracking guide position C | Working load | Weight |
|---|---|---|---|---|---|
66100331 |
165.1 mm (6.50")
|
12.7 mm
|
71.4 mm
|
3469 N
|
2.11 kg
|
66100341 |
241.3 mm (9.50")
|
12.7 mm
|
139.5 mm
|
5781 N
|
3.26 kg
|
No products match the selected filters.
Product Information
- Type
- ULTOP
- Pitch
38.1mm- Thickness
12.7mm- Material
- ULF — Ultra Low Friction Polyester Resin
- Packaging
- Rolls of
3.048m
ULF — Ultra Low Friction Polyester Resin
Polyester resin that offers good mechanical strength in combination with low coefficient of friction.
