UP 1305G ATM Series

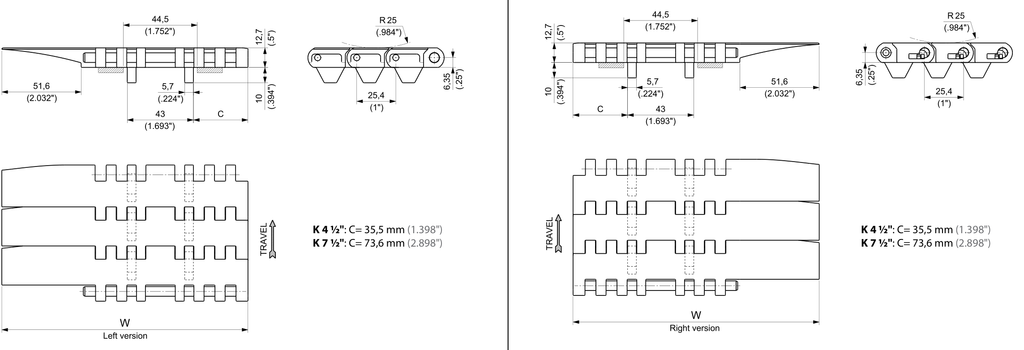

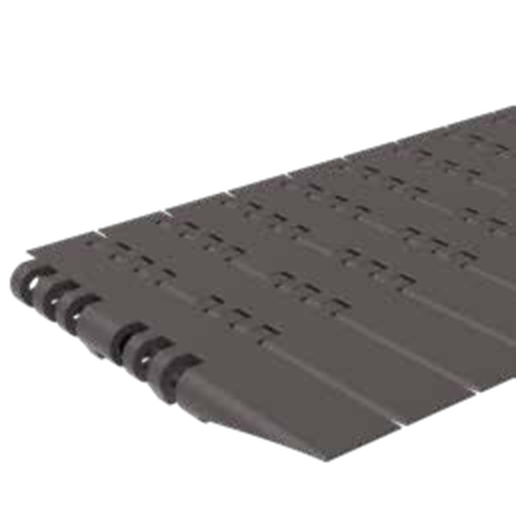

To be used in combination with 1305 belt series. Active transfer modules 1305G ATM series allow the transfer of the products between two 90° conveyor tracks without using dead plates. The special module profile, wing shaped, supports the products dynamically during transfer on the take-away belt. Available left and right version. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
1305GATMUP450LH |
160 mm (6.3")
|
12.7 mm
|
4600 N
|
1.9 kg
|
1305GATMUP450RH |
160 mm (6.3")
|
12.7 mm
|
4600 N
|
1.9 kg
|
1305GATMUP750LH |
236.2 mm (9.3")
|
12.7 mm
|
7800 N
|
2.96 kg
|
1305GATMUP750RH |
236.2 mm (9.3")
|
12.7 mm
|
7800 N
|
2.96 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
