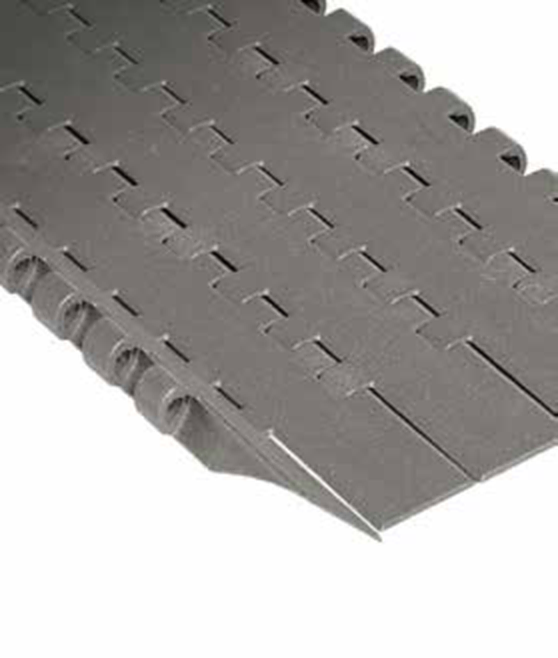

UP 1600G ATM Series
1600G ATM can be used in combination with 1600 modular belts. Active transfer modules 1600G ATM allow the transfer of products between two 90° conveyor tracks without using dead plates. The special wing shaped module profile supports the products dynamically during transfer on the take-away belts. Available in left and right version. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
1600BGATMUP085S |
110 mm (4.33")
|
8.7 mm
|
1840 N
|
0.85 kg
|
1600BGATMUP085D |
110 mm (4.33")
|
8.7 mm
|
1840 N
|
0.85 kg
|
1600BGATMUP170D |
195 mm (7.68")
|
8.7 mm
|
3670 N
|
1.51 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
