Regina
UP 600G ATM Series

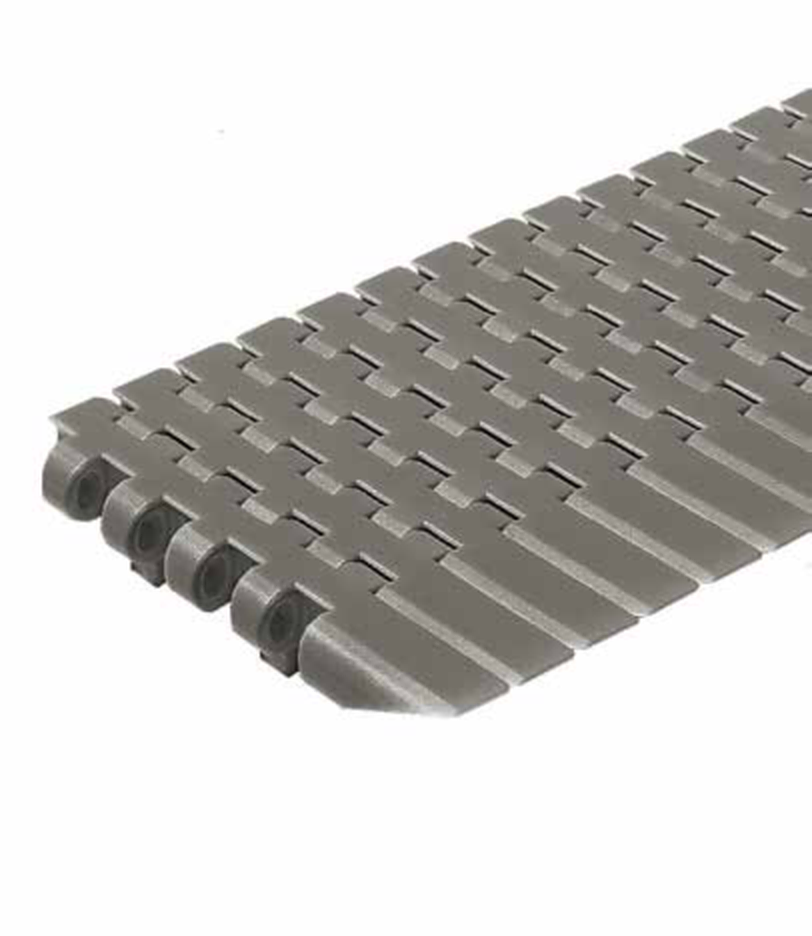

Active transfer modules 600G ATM series allow the transfer of the products between two 90° conveyor tracks without using dead plates. Left and right version available. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
600BGATMUP085S |
110 mm
|
8.7 mm
|
1190 N
|
0.96 kg
|
600BGATMUP085D |
110 mm
|
8.7 mm
|
1190 N
|
0.96 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
12.7mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
