Regina

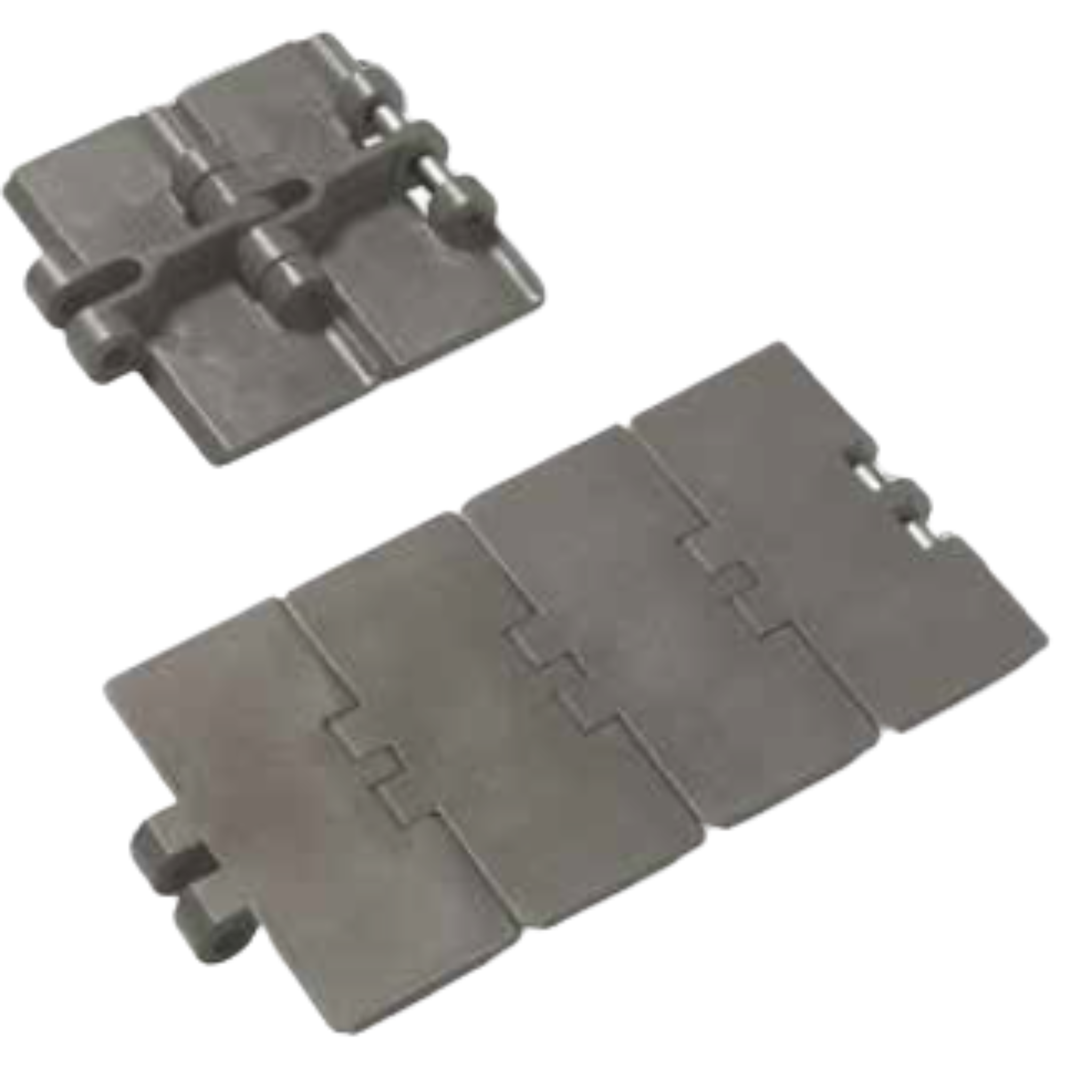

UP 820 Series
Product Configuration
Select a row to add it to your quote

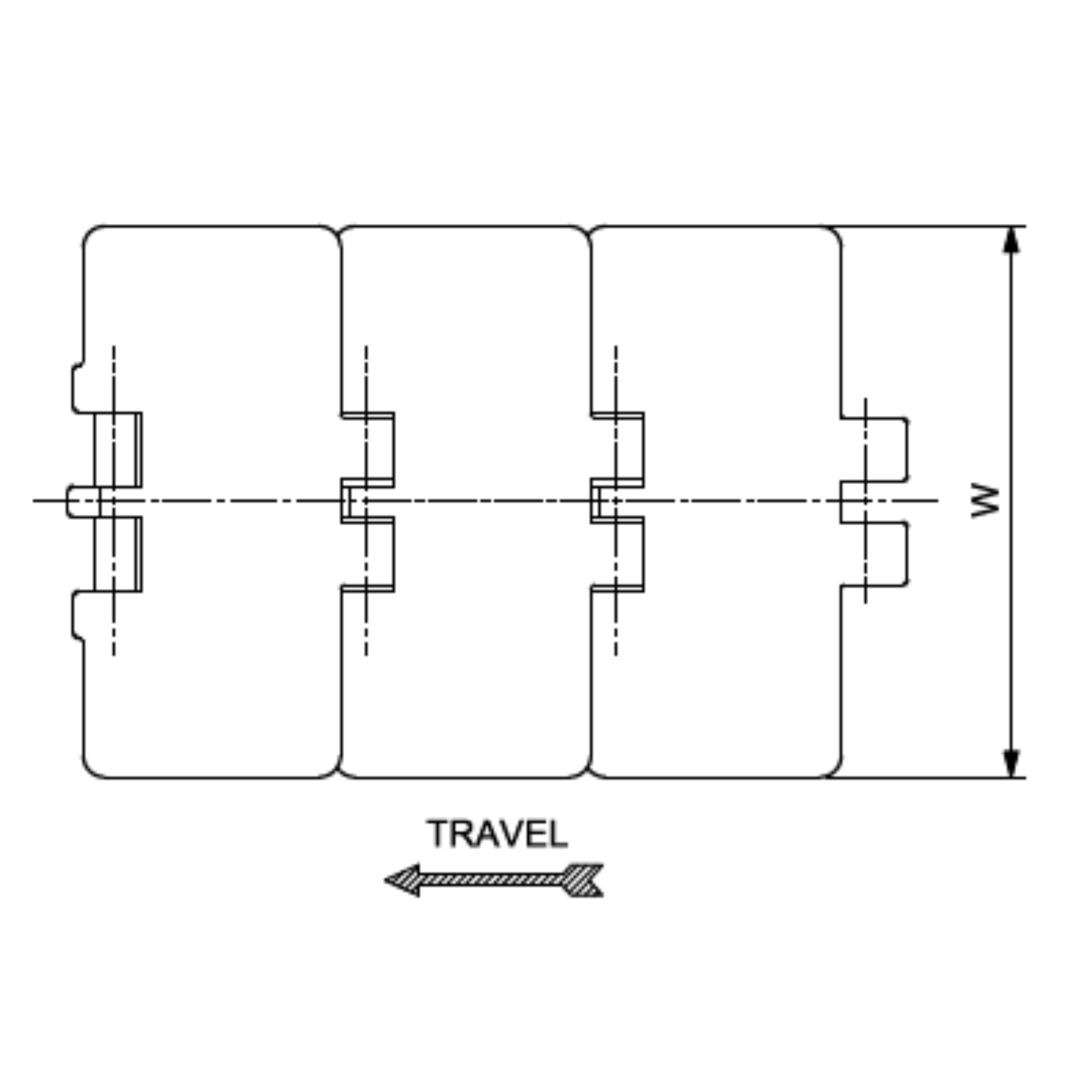

| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
UP820KD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 1600 N |
0.87 kg/m |
UP820KRA/000 |
K 83,8 (83.8 mm) | Austenitic Stainless Steel | 1600 N |
0.88 kg/m |
UP820KF/000 |
K 4 (101.6 mm) | Austenitic Stainless Steel | 1600 N |
0.95 kg/m |
UP820KG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 1600 N |
1.03 kg/m |
UP820KH/000 |
K 6 (152.4 mm) | Austenitic Stainless Steel | 1600 N |
1.25 kg/m |
UP820KL/000 |
K 7 ½ (190.5 mm) | Austenitic Stainless Steel | 1600 N |
1.35 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop
- Hinge
- Single Hinge

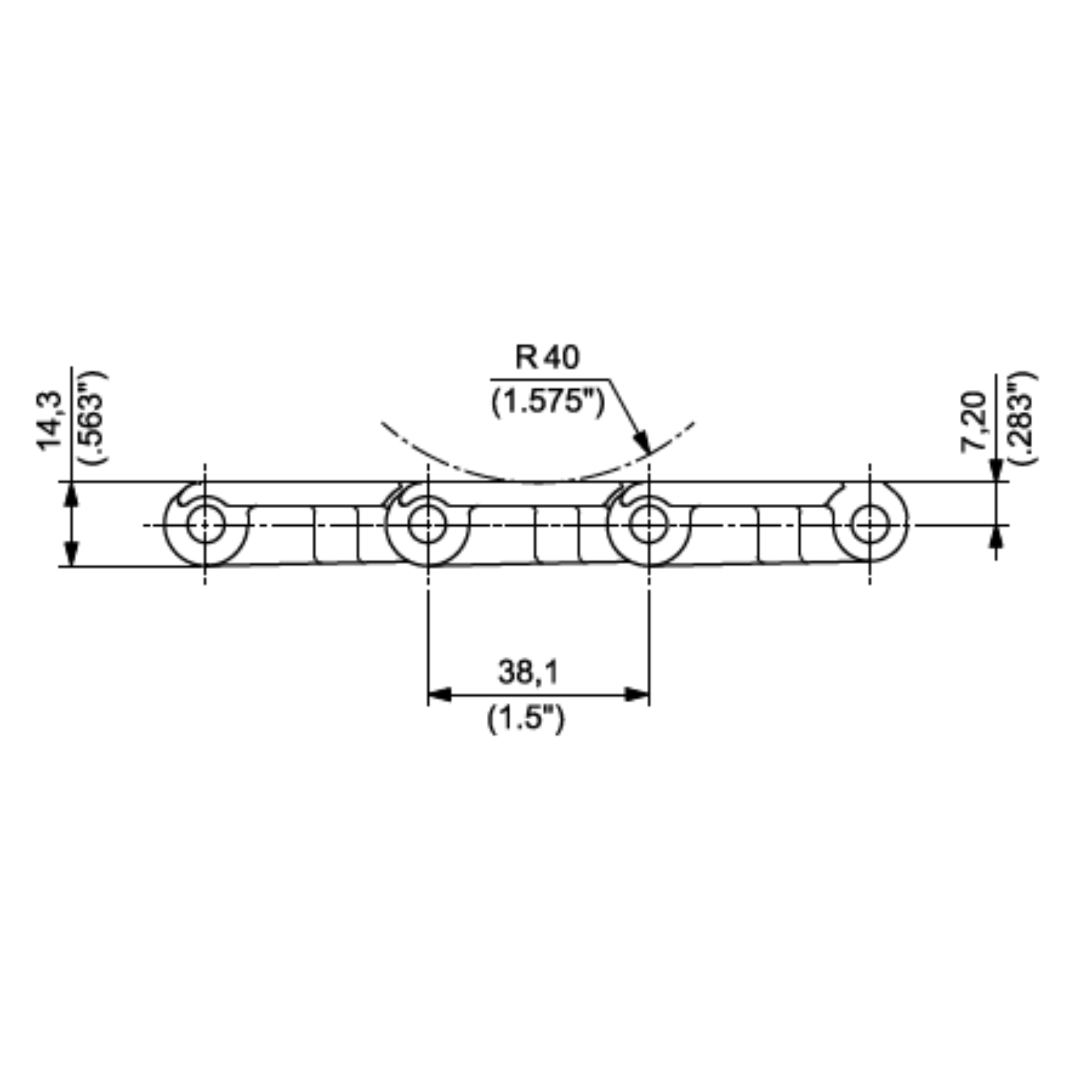

- Pitch
38.1mm- Thickness

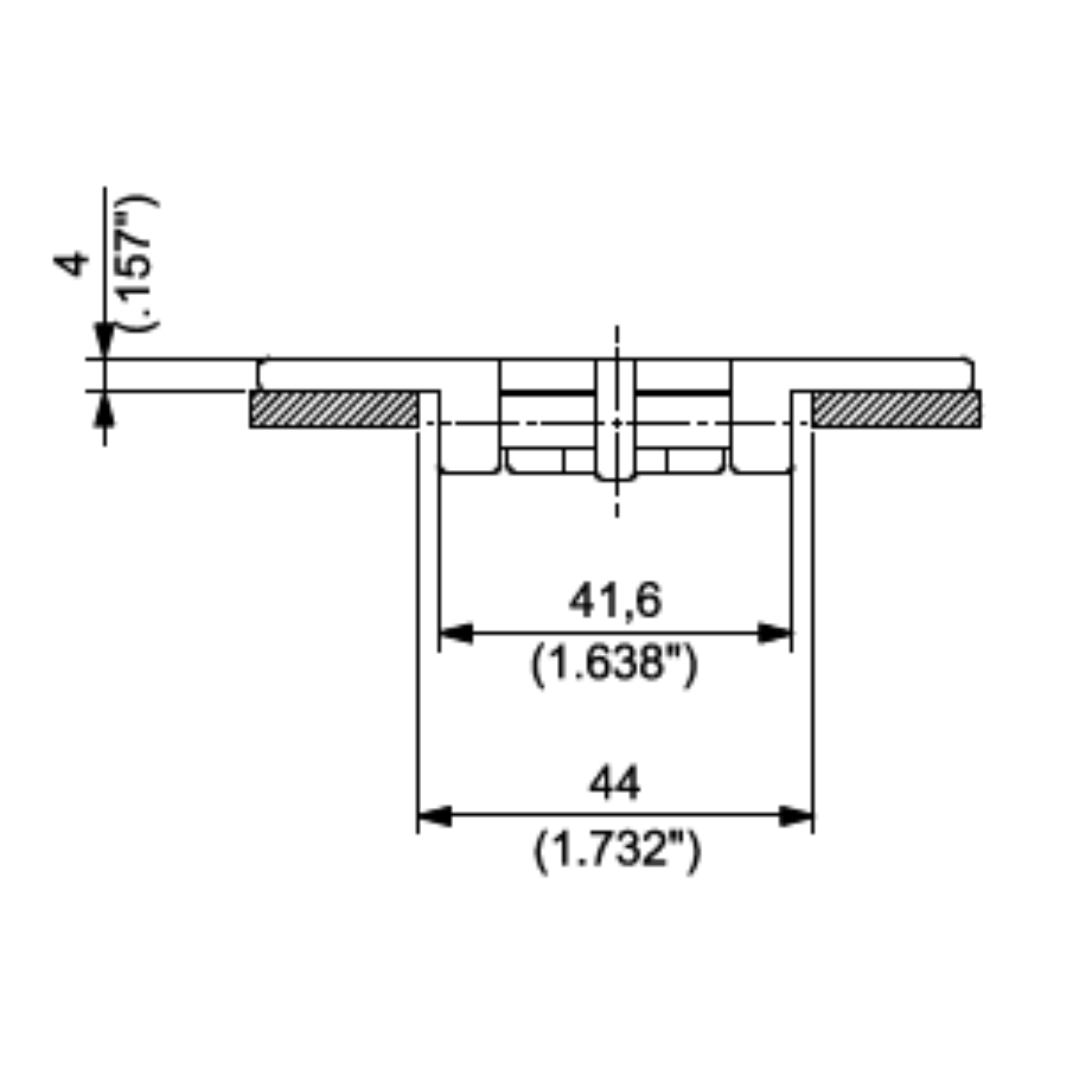

4.0mm- Hinge Width
41.6mm- Material
- UP — Homopolymer Delrin
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Pin material (all variants): Austenitic Stainless Steel
