Regina

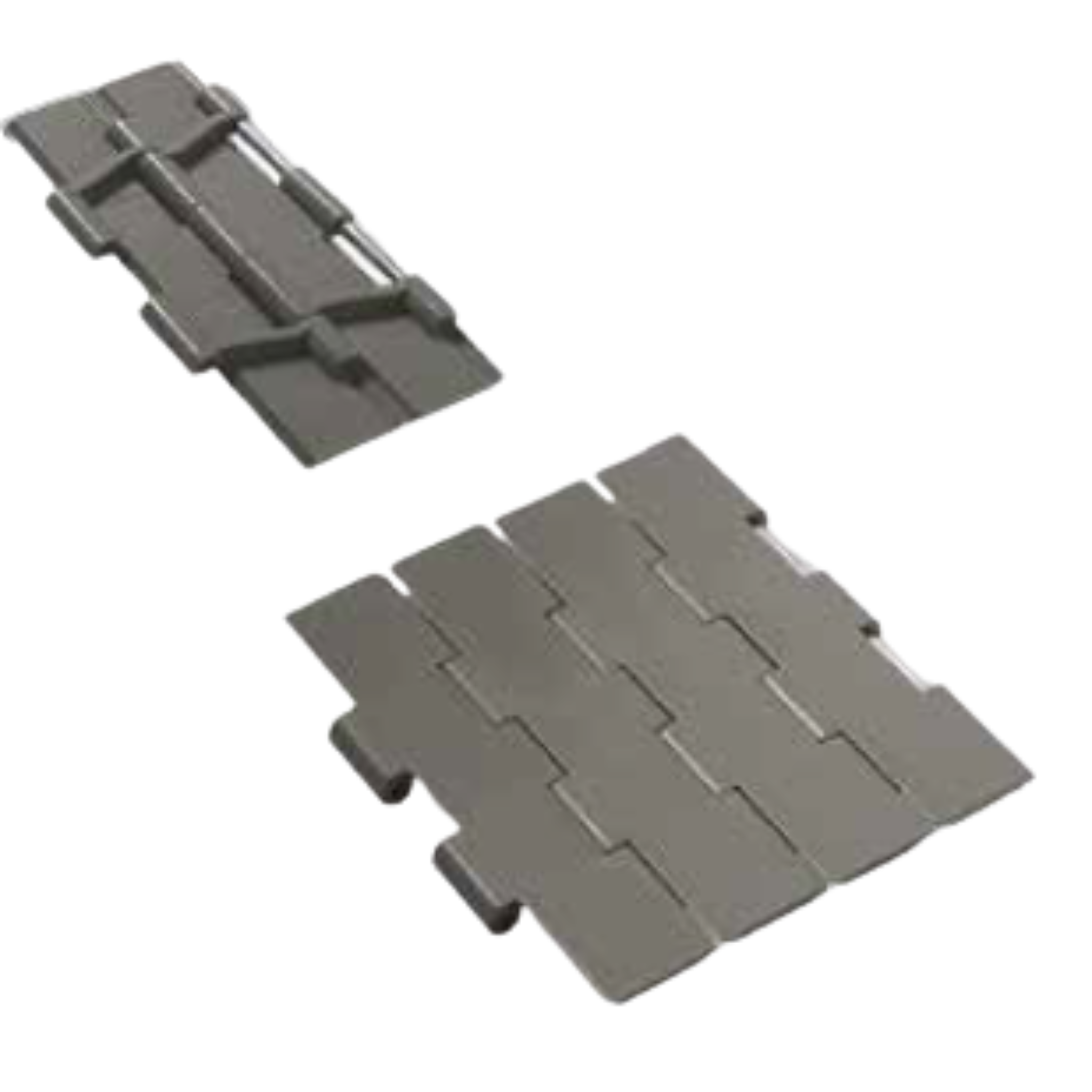

UP 821 Series
Product Configuration
Select a row to add it to your quote

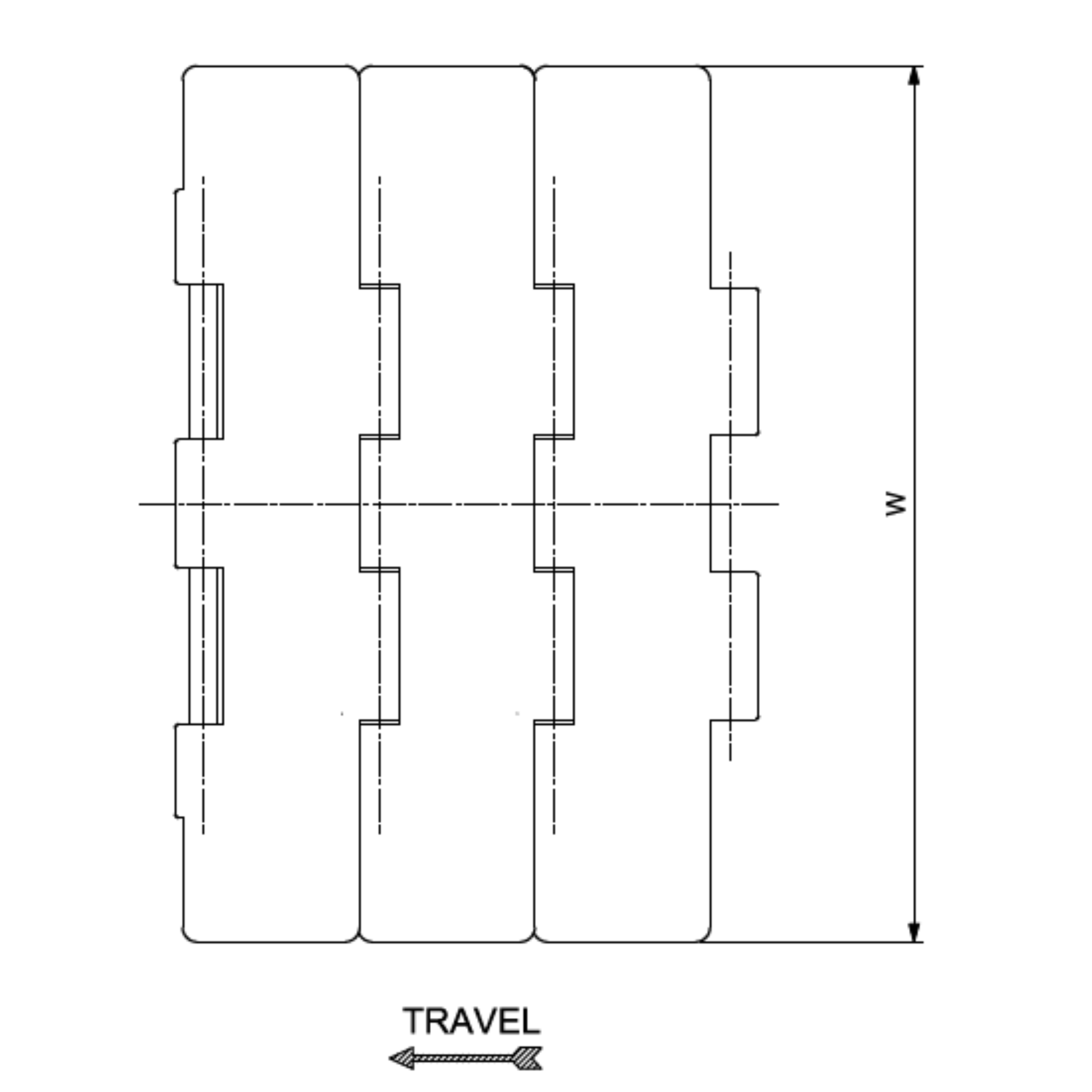

| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
UP821KL/000 |
K 7 ½ (190.5 mm) | Austenitic Stainless Steel | 2750 N |
2.48 kg/m |
UP821KM/000 |
K 10 (254.0 mm) | Austenitic Stainless Steel | 2750 N |
2.86 kg/m |
UP821KN/000 |
K 12 (304.8 mm) | Austenitic Stainless Steel | 2750 N |
3.16 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop
- Hinge
- Double Hinge

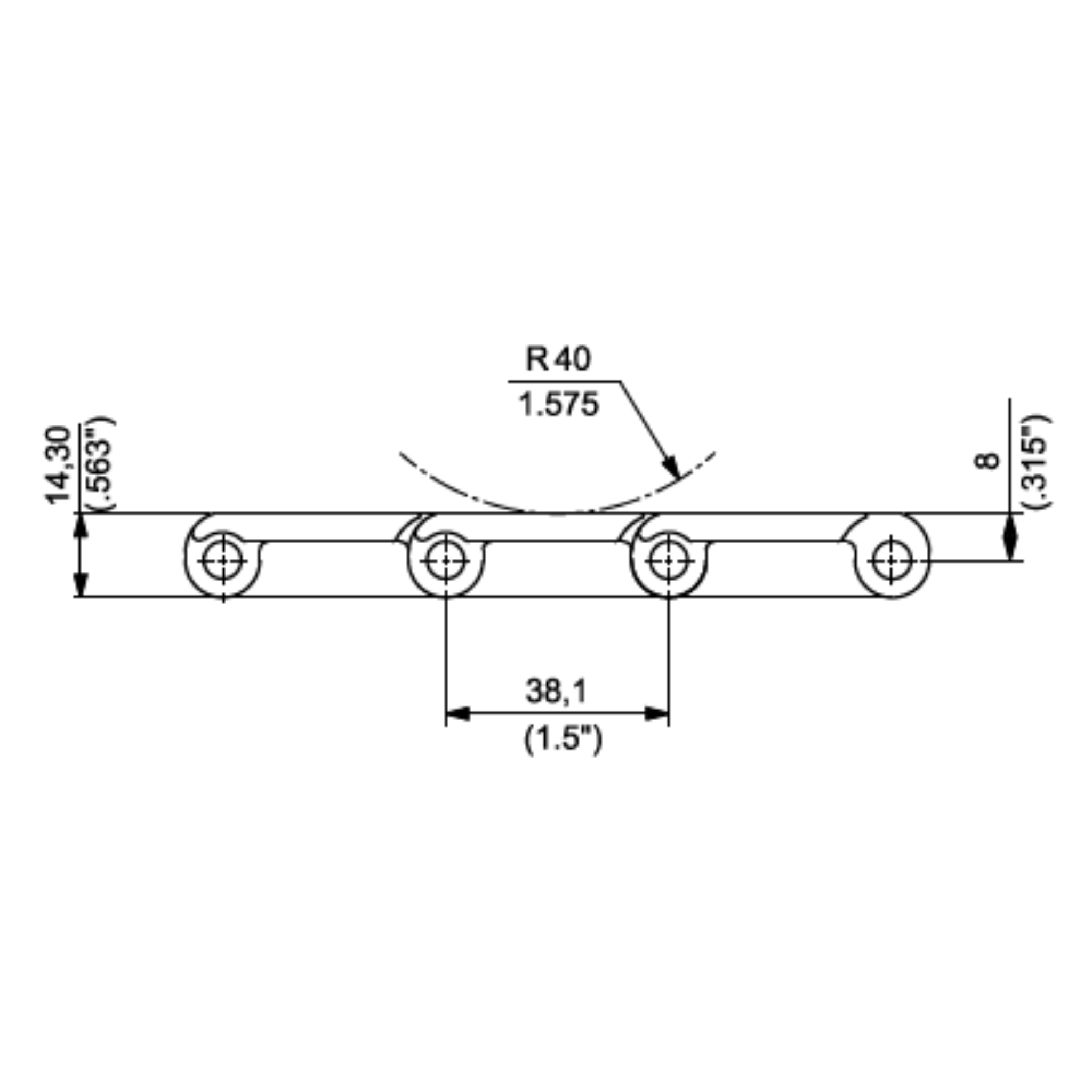

- Pitch
38.1mm- Thickness

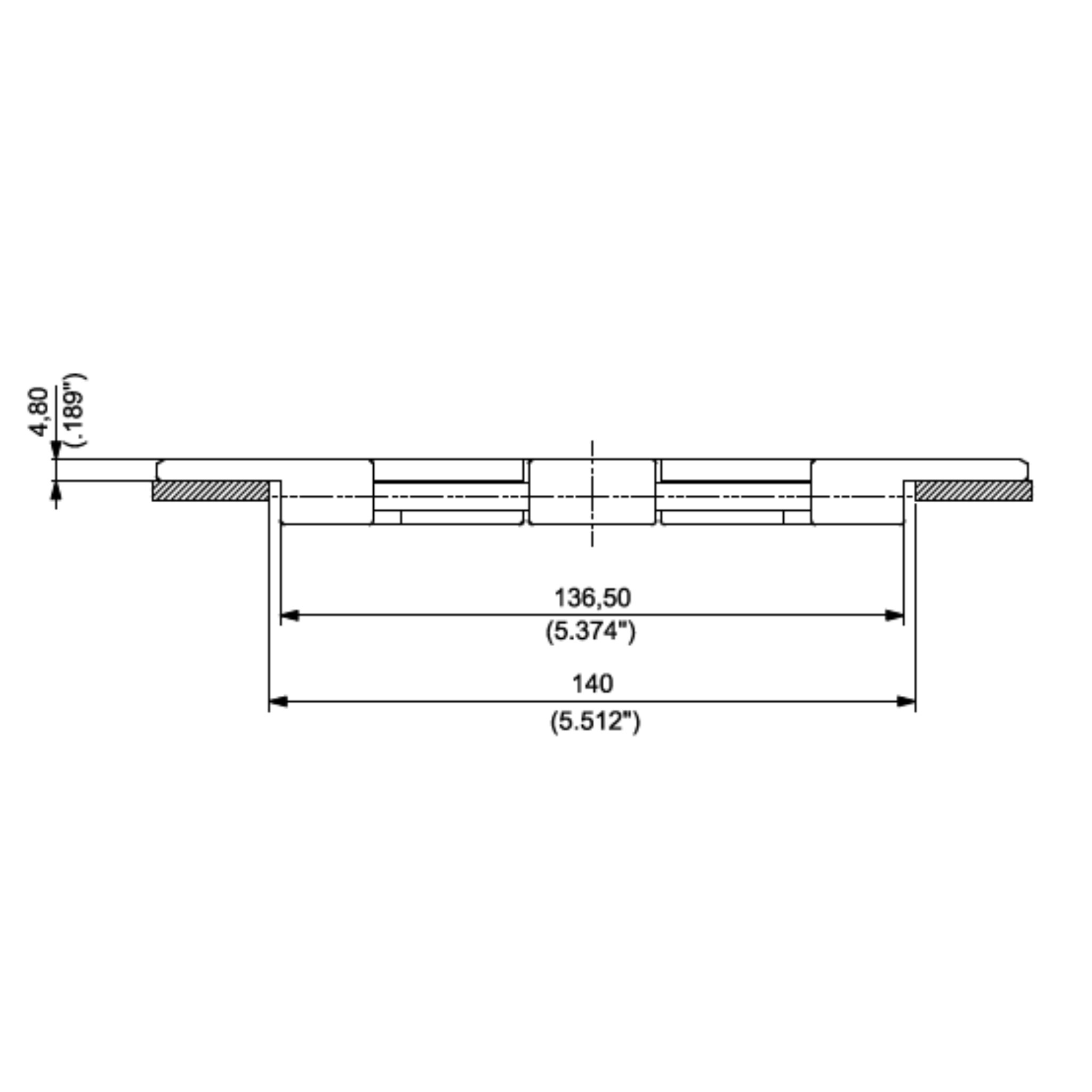

4.8mm- Hinge Width
136.5mm- Material
- UP — Homopolymer Delrin
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Pin material (all variants): Austenitic Stainless Steel
