Regina
UP 828 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
UP828KD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 2000 N |
1.01 kg/m |
UP828KRA/000 |
K 83,8 (83.8 mm) | Austenitic Stainless Steel | 2000 N |
1.02 kg/m |
UP828KG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 2000 N |
1.18 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop
- Hinge
- Single Hinge

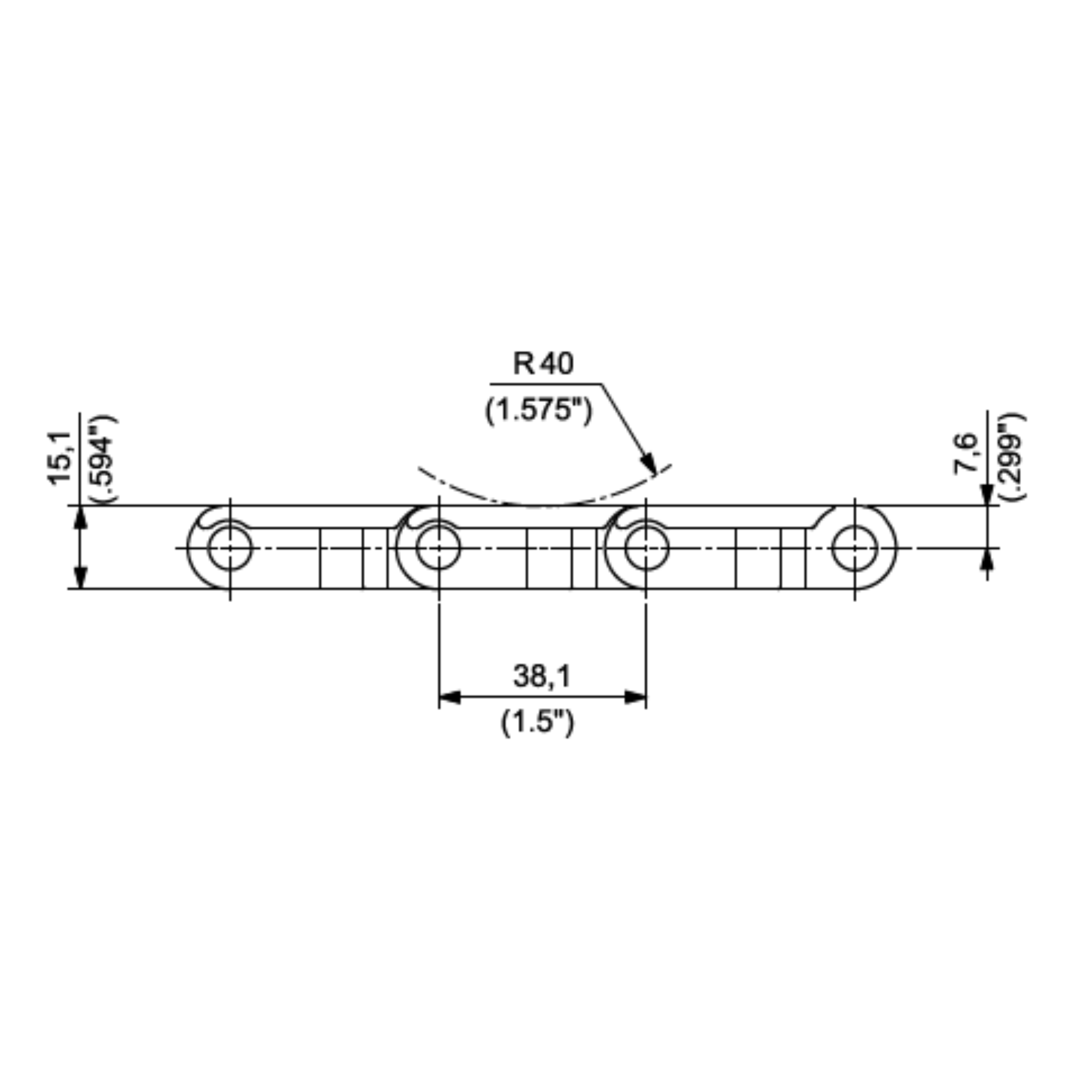

- Pitch

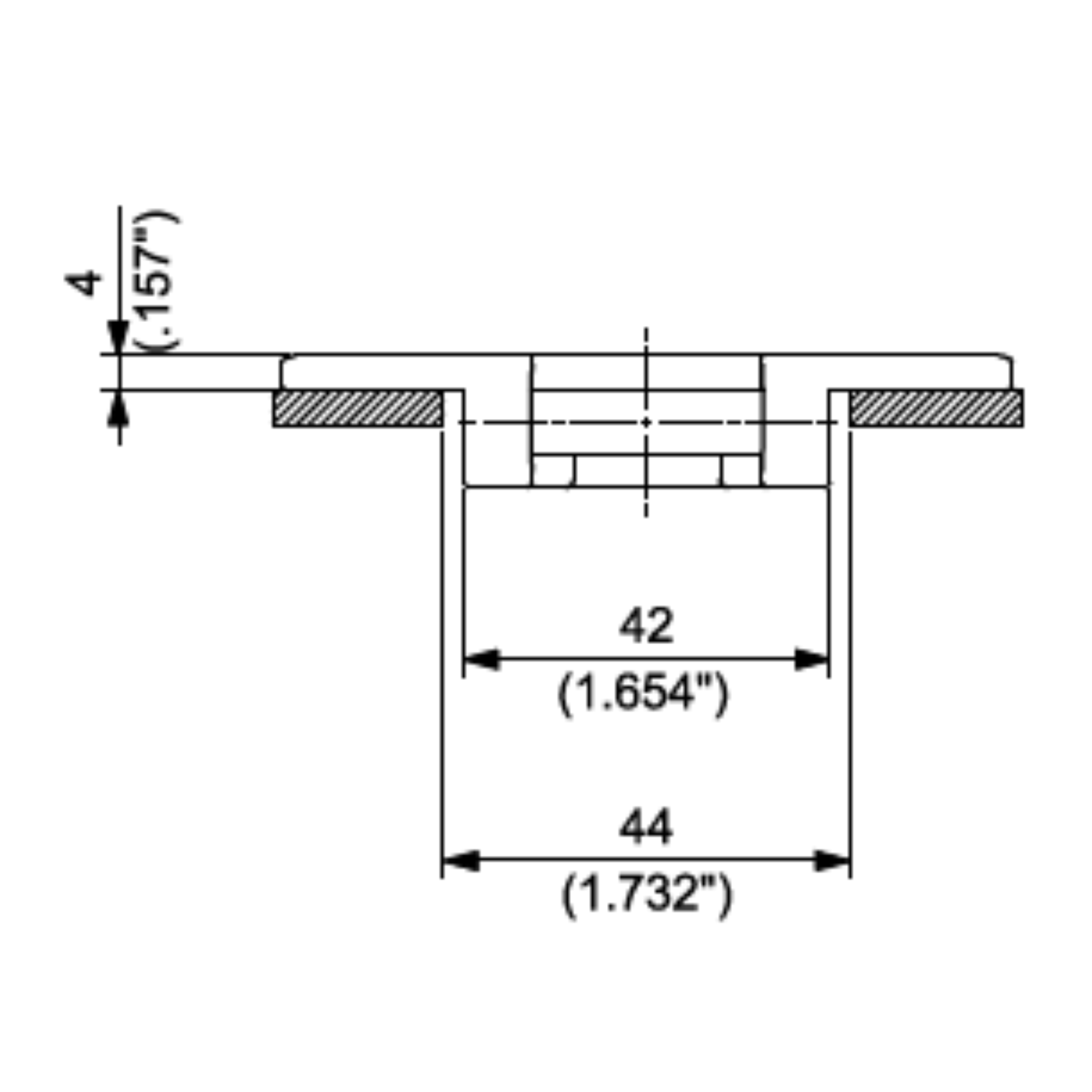

38.1mm- Thickness
4.0mm- Hinge Width
42.0mm- Material
- UP — Homopolymer Delrin
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Pin material (all variants): Austenitic Stainless Steel
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
