UP USPMG ATM Series

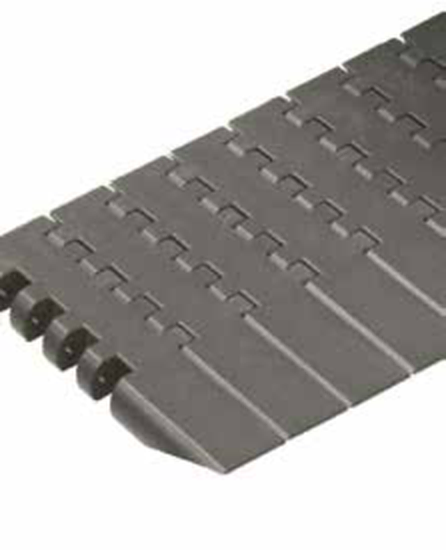

Active transfer modules USPMG ATM series allow the transfer of the products between two 90° conveyor tracks without using dead plates. Extremely good flatness, manufacturing accuracy and low coefficient of friction make the side transfer of the products very easy. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
USPMGATMUP085S |
127.5 mm
|
12.7 mm
|
2975 N
|
1.55 kg
|
USPMGATMUP085D |
127.5 mm
|
12.7 mm
|
2975 N
|
1.55 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
