Regina

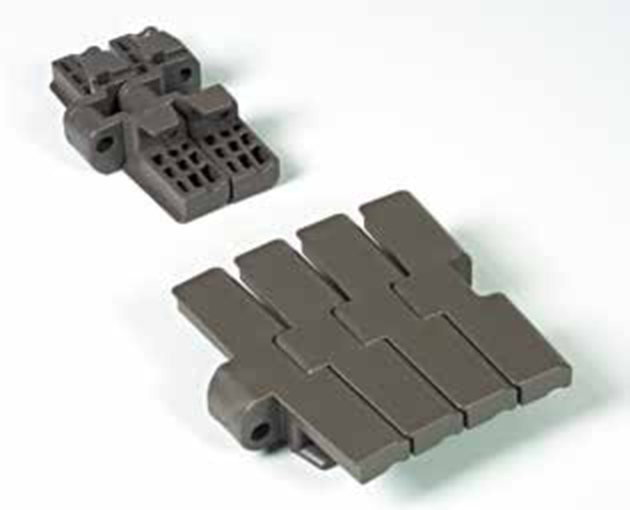

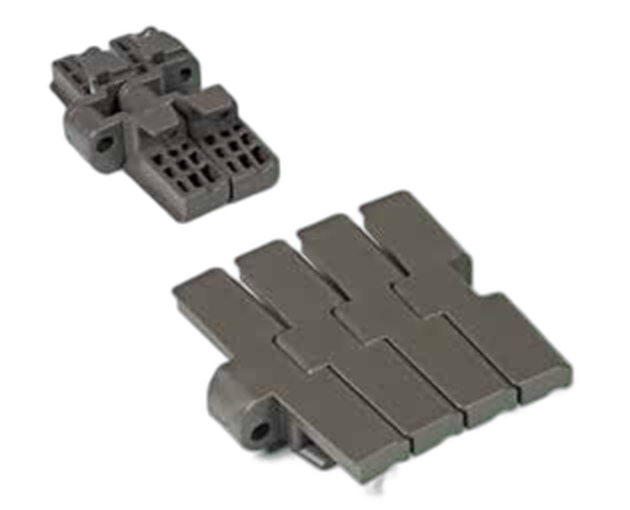

AR 793T Series
TAB sideflexing chain, 12,7 mm (0.5") thickness, solid top, heavy duty. For conveyor curves — corner tracks: Regina Conveyor Catalogue p344. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
AR793TKD/000 |
82.6 mm (3.25")
|
12.7 mm
|
457.2 mm
|
2200 N
|
2.02 kg
|
AR793TKRA/000 |
83.8 mm (3.30")
|
12.7 mm
|
457.2 mm
|
2200 N
|
2.04 kg
|
AR793TKG/000 |
114.3 mm (4.50")
|
12.7 mm
|
609.6 mm
|
2200 N
|
2.4 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- AR — Abrasion Resistant Polyamide
- Packaging
- Rolls of
3.048m
AR — Abrasion Resistance Polyamide
Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
