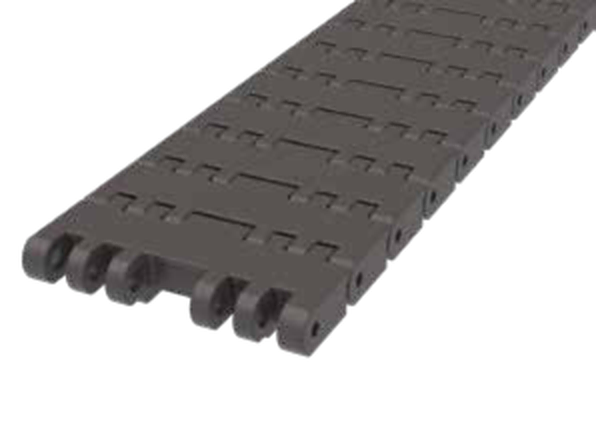

D2K 1305 Series Chain
Strong hinge design ensures high mechanical strength for the most demanding applications. Optimized edge radius and no gap between hinges allows for a superior product handling in linear and side transfer of products. Particularly suitable for glass products and cans. Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote
| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
12.7 mm |
3100 N |
1.17 kg/m |
||
114.3 mm |
12.7 mm |
4600 N |
1.63 kg/m |
||
152.4 mm |
12.7 mm |
6600 N |
— | 2.13 kg/m |
|
190.5 mm |
12.7 mm |
7800 N |
2.68 kg/m |
||
381 mm |
12.7 mm |
15200 N |
— | 5.39 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
