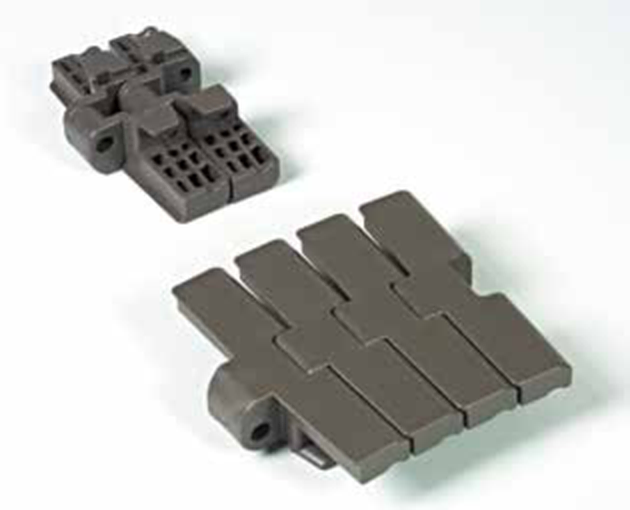

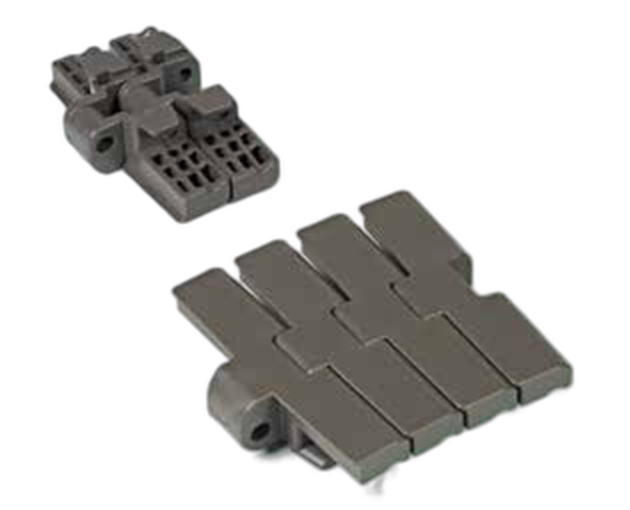

D2K 793T Series
TAB sideflexing chain, 12,7 mm (0.5") thickness, solid top, heavy duty. For conveyor curves — corner tracks: Regina Conveyor Catalogue p344. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote

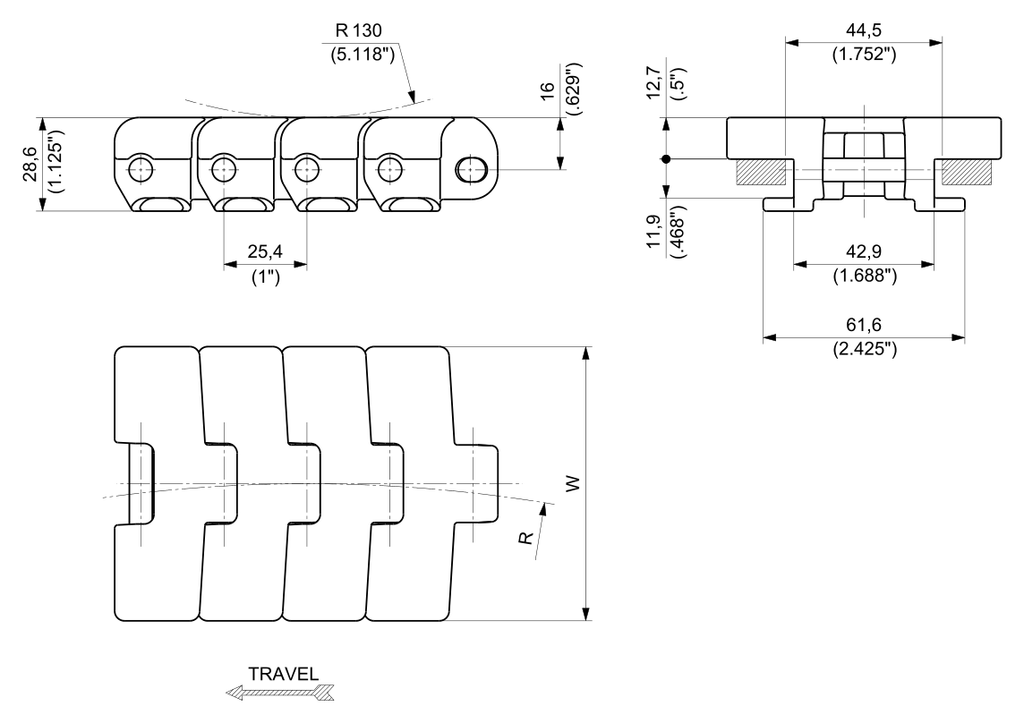

| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
D2K793TKD/000 |
82.6 mm (3.25")
|
12.7 mm
|
457.2 mm
|
2200 N
|
2.09 kg
|
D2K793TKRA/000 |
83.8 mm (3.30")
|
12.7 mm
|
457.2 mm
|
2200 N
|
2.11 kg
|
D2K793TKG/000 |
114.3 mm (4.50")
|
12.7 mm
|
609.6 mm
|
2200 N
|
2.48 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
