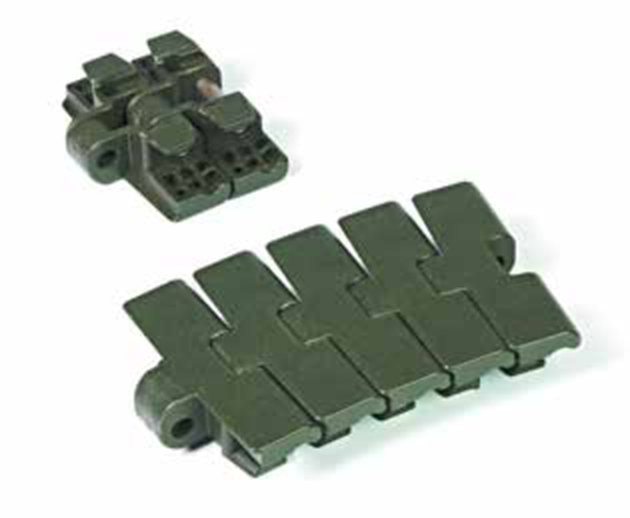

EF 783T Series
TAB sideflexing chain, 8,7 mm (0.343") thickness, solid top, light duty. For conveyor curves — corner tracks: Regina Conveyor Catalogue p344. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote

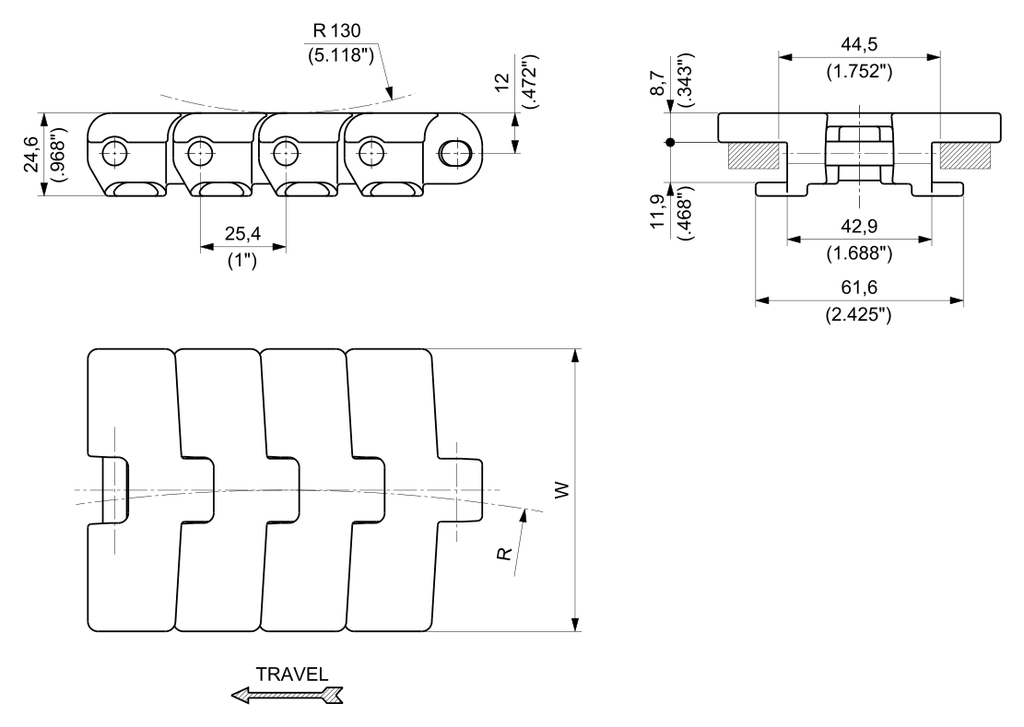

| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
EF783TKD/000 |
82.6 mm (3.25")
|
8.7 mm
|
457.2 mm
|
1700 N
|
1.76 kg
|
EF783TKRA/000 |
83.8 mm (3.30")
|
8.7 mm
|
457.2 mm
|
1700 N
|
1.78 kg
|
EF783TKG/000 |
114.3 mm (4.50")
|
8.7 mm
|
609.6 mm
|
1700 N
|
2.04 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic
- Packaging
- Rolls of
3.048m
EF — Ecological Friction Abating Sliding Thermoplastic (e-F.A.S.T.®)
Ultimate dry running homopolymer acetal resin developed combining REGINA field expertise with Delrin (former DuPont™) centenarian acetal resin knowledge. Today's standards for high performance filling lines require a combination of high speed and high productivity, while reducing or eliminating lubrication. REGINA e-F.A.S.T.® material is capable of exceeding such standards, thanks to its unique characteristic of delivering a much lower and constant coefficent of friction over time in dry or almost dry running conditions vs. other plastic chains.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
