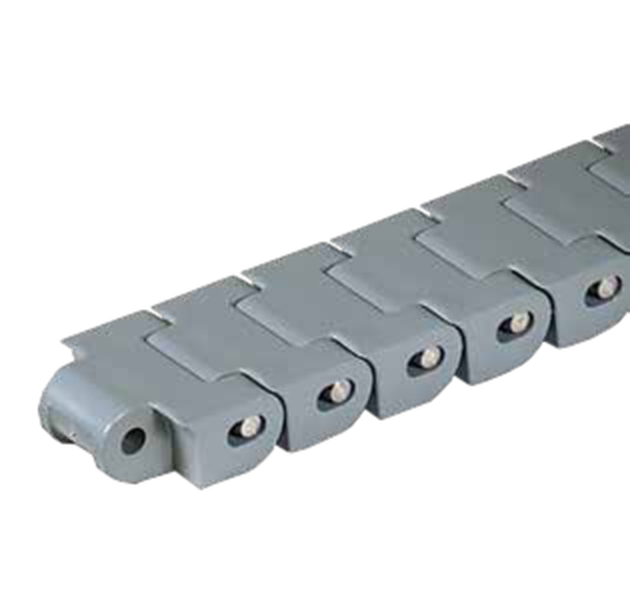

ULF UCC 138 Series
¾" pitch heavy duty chain, 15 mm (0.591") thickness, solid top. Optimum support of the conveyed products, no risk of flight detachment (compared to two piece chains). No gap between the plates even when engaging the sprockets. Particularly suitable for packaging machines applications. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
66100321 |
34.92 mm (1.37")
|
15 mm
|
1225 N
|
0.68 kg
|
No products match the selected filters.
Product Information
- Type
- ULTOP
- Pitch
19.05mm- Thickness
15.0mm- Material
- ULF — Ultra Low Friction Polyester Resin
- Packaging
- Rolls of
3.048m
ULF — Ultra Low Friction Polyester Resin
Polyester resin that offers good mechanical strength in combination with low coefficient of friction.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
