UP 1305 Series

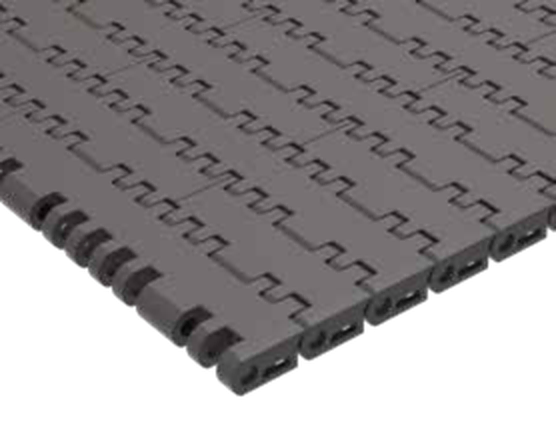

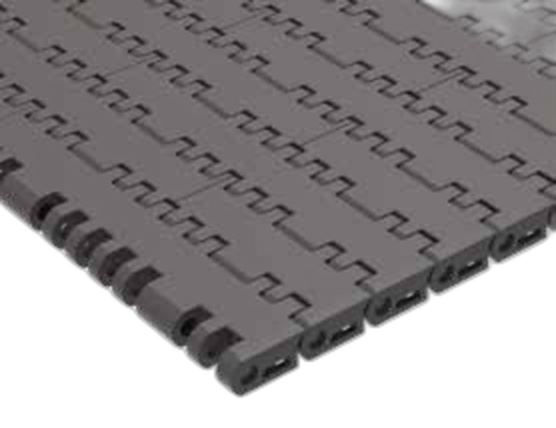

Matveyor 1305 Series solid top modular belt, 25,4 mm pitch, UP — Ultra Performance Homopolymer Delrin®. Belt widths 228,6 mm (9") or wider in 76,2 mm (3") increments; belts wider than 1524 mm (60") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 63" wide UP belt → 1305UP063). Belt widths ≤ 609,6 mm (24") are supplied in rolls of 3,048 m (10 ft) each. Belt widths ≥ 685,8 mm (27") and ≤ 990,6 mm (39") are supplied in rolls of 1,524 m (5 ft) each. Belt widths ≥ 1066,8 mm (42") are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
1305UP009 |
9" (228.6 mm) | Austenitic Stainless Steel | 43100 N |
3.17 kg/m |
1305UP012 |
12" (304.8 mm) | Austenitic Stainless Steel | 43100 N |
4.23 kg/m |
1305UP015 |
15" (381.0 mm) | Austenitic Stainless Steel | 43100 N |
5.29 kg/m |
1305UP018 |
18" (457.2 mm) | Austenitic Stainless Steel | 43100 N |
6.35 kg/m |
1305UP021 |
21" (533.4 mm) | Austenitic Stainless Steel | 43100 N |
7.4 kg/m |
1305UP024 |
24" (609.6 mm) | Austenitic Stainless Steel | 43100 N |
8.46 kg/m |
1305UP027 |
27" (685.8 mm) | Austenitic Stainless Steel | 43100 N |
9.52 kg/m |
1305UP030 |
30" (762.0 mm) | Austenitic Stainless Steel | 43100 N |
10.58 kg/m |
1305UP033 |
33" (838.2 mm) | Austenitic Stainless Steel | 43100 N |
11.63 kg/m |
1305UP036 |
36" (914.4 mm) | Austenitic Stainless Steel | 43100 N |
12.69 kg/m |
1305UP039 |
39" (990.6 mm) | Austenitic Stainless Steel | 43100 N |
13.75 kg/m |
1305UP042 |
42" (1066.8 mm) | Austenitic Stainless Steel | 43100 N |
14.81 kg/m |
1305UP045 |
45" (1143.0 mm) | Austenitic Stainless Steel | 43100 N |
15.86 kg/m |
1305UP048 |
48" (1219.2 mm) | Austenitic Stainless Steel | 43100 N |
16.92 kg/m |
1305UP051 |
51" (1295.4 mm) | Austenitic Stainless Steel | 43100 N |
17.98 kg/m |
1305UP054 |
54" (1371.6 mm) | Austenitic Stainless Steel | 43100 N |
19.04 kg/m |
1305UP057 |
57" (1447.8 mm) | Austenitic Stainless Steel | 43100 N |
20.1 kg/m |
1305UP060 |
60" (1524.0 mm) | Austenitic Stainless Steel | 43100 N |
21.15 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor

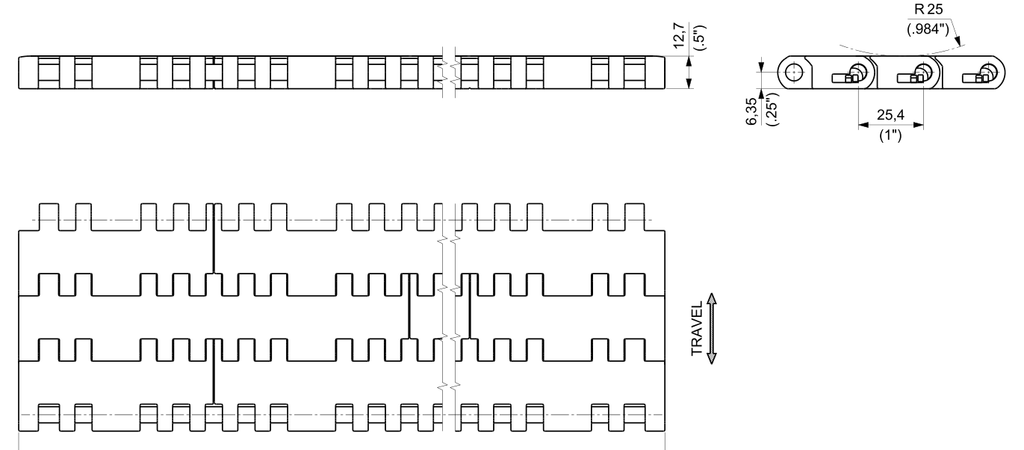

- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
