Regina

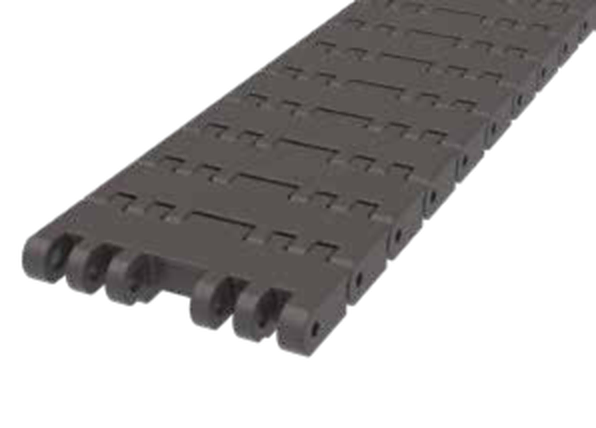

UP 1305 Series Chain
Strong hinge design ensures high mechanical strength for the most demanding applications. Optimized edge radius and no gap between hinges allows for a superior product handling in linear and side transfer of products. Particularly suitable for glass products and cans. Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote

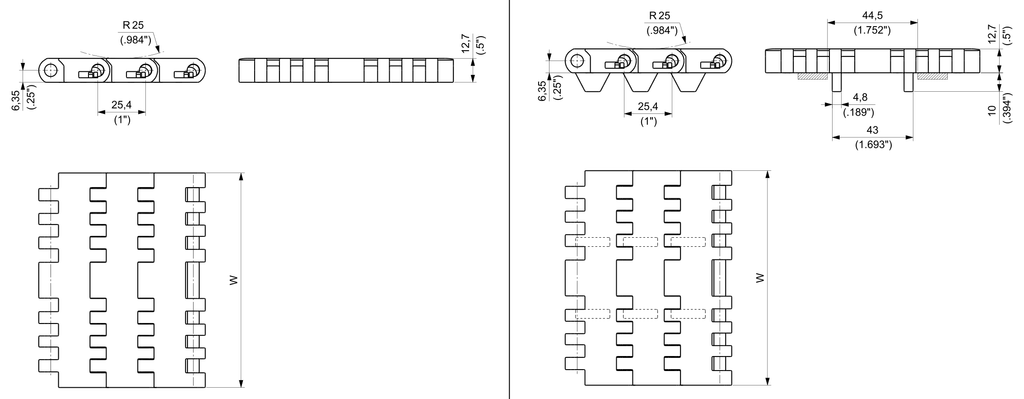

| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
12.7 mm |
3100 N |
1.17 kg/m |
||
114.3 mm |
12.7 mm |
4600 N |
1.63 kg/m |
||
152.4 mm |
12.7 mm |
6600 N |
— | 2.13 kg/m |
|
190.5 mm |
12.7 mm |
7800 N |
2.68 kg/m |
||
381 mm |
12.7 mm |
15200 N |
— | 5.39 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
