Regina
UP 1405 Series Chain

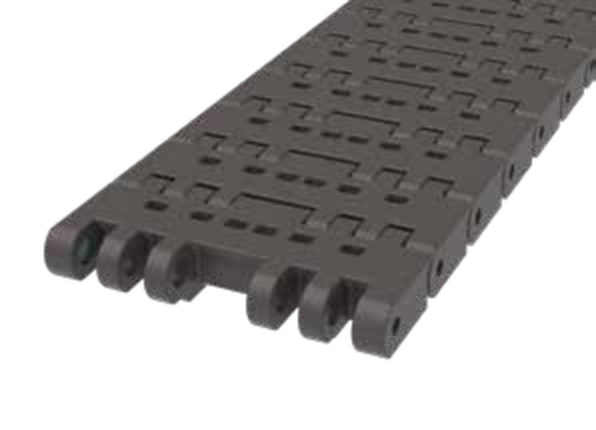

Top surface with perforated design used to ensure the flow of water or air through the belt and to remove debris, for a cleaner contact surface between belt and container. Particularly suitable for cans conveying. Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote
| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
12.7 mm |
3100 N |
1.14 kg/m |
||
114.3 mm |
12.7 mm |
4600 N |
1.58 kg/m |
||
152.4 mm |
12.7 mm |
6600 N |
— | 2.08 kg/m |
|
190.5 mm |
12.7 mm |
7800 N |
2.61 kg/m |
||
381 mm |
12.7 mm |
15200 N |
— | 5.27 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
