Regina
UP 4650 Series (Ri 1450 mm)

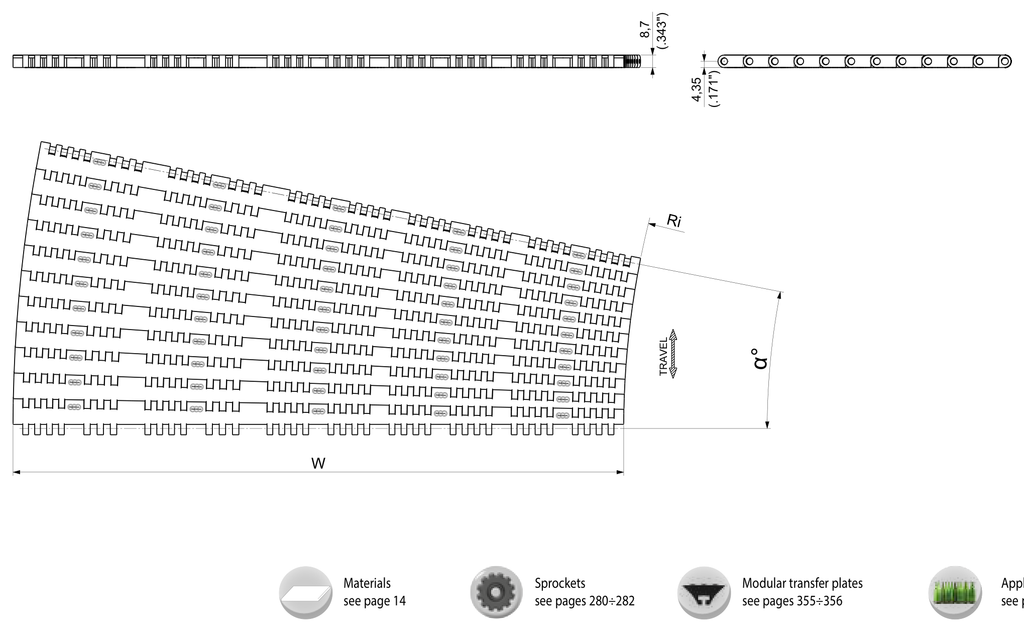

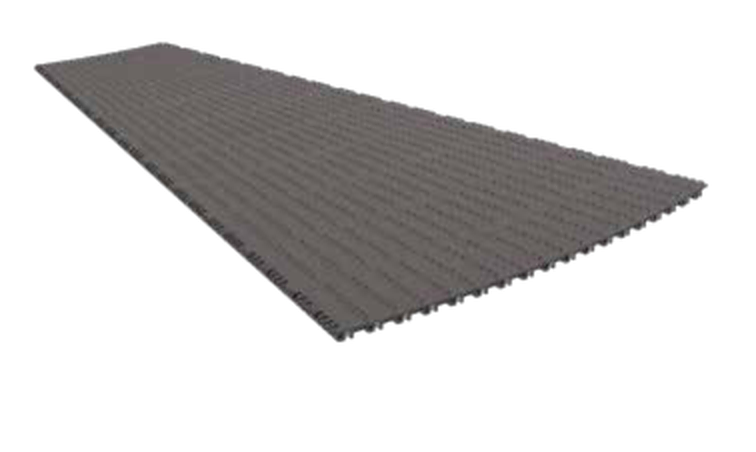

Heavy duty fixed radius solid top belt for traditional left, right or "U" turn conveying, supplied as pre-configured curve segments with inner sideflexing radius Ri = 1450 mm (57.09"). Working load 25000 N/m (at 25°C/77°F). Belt weight 7,79 kg/m². Supplied as pre-configured curve segments.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Inner radius Ri | Curve angle α | Weight |
|---|---|---|---|---|
4650UP0340E11 |
340 mm (13.39")
|
1450 mm
|
30°
|
2.65 kg
|
4650UP0340C11 |
340 mm (13.39")
|
1450 mm
|
45°
|
2.65 kg
|
4650UP0340B11 |
340 mm (13.39")
|
1450 mm
|
60°
|
2.65 kg
|
4650UP0340D11 |
340 mm (13.39")
|
1450 mm
|
75°
|
2.65 kg
|
4650UP0340A11 |
340 mm (13.39")
|
1450 mm
|
90°
|
2.65 kg
|
4650UP0340G11 |
340 mm (13.39")
|
1450 mm
|
180°
|
2.65 kg
|
4650UP0425E11 |
425 mm (16.73")
|
1450 mm
|
30°
|
3.31 kg
|
4650UP0425C11 |
425 mm (16.73")
|
1450 mm
|
45°
|
3.31 kg
|
4650UP0425B11 |
425 mm (16.73")
|
1450 mm
|
60°
|
3.31 kg
|
4650UP0425D11 |
425 mm (16.73")
|
1450 mm
|
75°
|
3.31 kg
|
4650UP0425A11 |
425 mm (16.73")
|
1450 mm
|
90°
|
3.31 kg
|
4650UP0425G11 |
425 mm (16.73")
|
1450 mm
|
180°
|
3.31 kg
|
4650UP0510E11 |
510 mm (20.08")
|
1450 mm
|
30°
|
3.97 kg
|
4650UP0510C11 |
510 mm (20.08")
|
1450 mm
|
45°
|
3.97 kg
|
4650UP0510B11 |
510 mm (20.08")
|
1450 mm
|
60°
|
3.97 kg
|
4650UP0510D11 |
510 mm (20.08")
|
1450 mm
|
75°
|
3.97 kg
|
4650UP0510A11 |
510 mm (20.08")
|
1450 mm
|
90°
|
3.97 kg
|
4650UP0510G11 |
510 mm (20.08")
|
1450 mm
|
180°
|
3.97 kg
|
4650UP0595E11 |
595 mm (23.43")
|
1450 mm
|
30°
|
4.64 kg
|
4650UP0595C11 |
595 mm (23.43")
|
1450 mm
|
45°
|
4.64 kg
|
4650UP0595B11 |
595 mm (23.43")
|
1450 mm
|
60°
|
4.64 kg
|
4650UP0595D11 |
595 mm (23.43")
|
1450 mm
|
75°
|
4.64 kg
|
4650UP0595A11 |
595 mm (23.43")
|
1450 mm
|
90°
|
4.64 kg
|
4650UP0595G11 |
595 mm (23.43")
|
1450 mm
|
180°
|
4.64 kg
|
4650UP0680E11 |
680 mm (26.77")
|
1450 mm
|
30°
|
5.3 kg
|
4650UP0680C11 |
680 mm (26.77")
|
1450 mm
|
45°
|
5.3 kg
|
4650UP0680B11 |
680 mm (26.77")
|
1450 mm
|
60°
|
5.3 kg
|
4650UP0680D11 |
680 mm (26.77")
|
1450 mm
|
75°
|
5.3 kg
|
4650UP0680A11 |
680 mm (26.77")
|
1450 mm
|
90°
|
5.3 kg
|
4650UP0680G11 |
680 mm (26.77")
|
1450 mm
|
180°
|
5.3 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
