Regina
UP 4650 Series (Ri 770 mm)

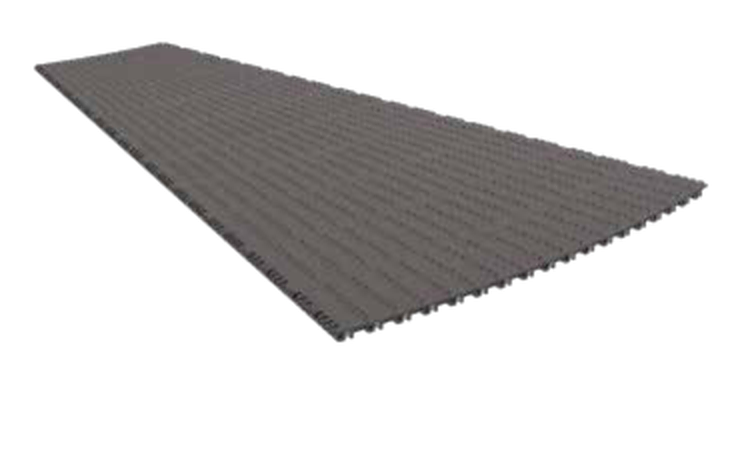

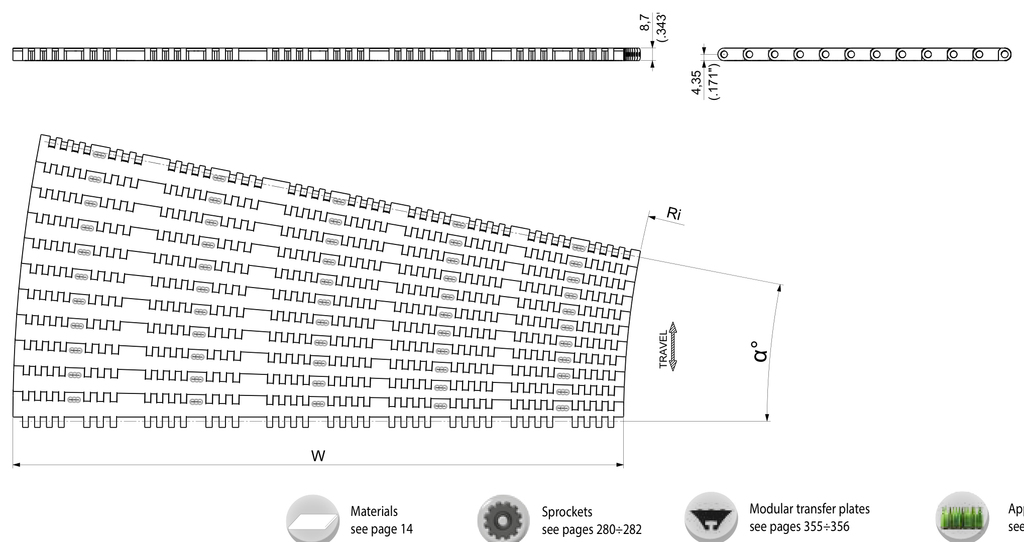

Heavy duty fixed radius solid top belt for traditional left, right or "U" turn conveying, supplied as pre-configured curve segments with inner sideflexing radius Ri = 770 mm (30.31"). Working load 25000 N/m (at 25°C/77°F). Belt weight 7,79 kg/m². Supplied as pre-configured curve segments.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Inner radius Ri | Curve angle α | Weight |
|---|---|---|---|---|
4650UP0340E03 |
340 mm (13.39")
|
770 mm
|
30°
|
2.65 kg
|
4650UP0340C03 |
340 mm (13.39")
|
770 mm
|
45°
|
2.65 kg
|
4650UP0340B03 |
340 mm (13.39")
|
770 mm
|
60°
|
2.65 kg
|
4650UP0340D03 |
340 mm (13.39")
|
770 mm
|
75°
|
2.65 kg
|
4650UP0340A03 |
340 mm (13.39")
|
770 mm
|
90°
|
2.65 kg
|
4650UP0340G03 |
340 mm (13.39")
|
770 mm
|
180°
|
2.65 kg
|
4650UP0425E03 |
425 mm (16.73")
|
770 mm
|
30°
|
3.31 kg
|
4650UP0425C03 |
425 mm (16.73")
|
770 mm
|
45°
|
3.31 kg
|
4650UP0425B03 |
425 mm (16.73")
|
770 mm
|
60°
|
3.31 kg
|
4650UP0425D03 |
425 mm (16.73")
|
770 mm
|
75°
|
3.31 kg
|
4650UP0425A03 |
425 mm (16.73")
|
770 mm
|
90°
|
3.31 kg
|
4650UP0425G03 |
425 mm (16.73")
|
770 mm
|
180°
|
3.31 kg
|
4650UP0510E03 |
510 mm (20.08")
|
770 mm
|
30°
|
3.97 kg
|
4650UP0510C03 |
510 mm (20.08")
|
770 mm
|
45°
|
3.97 kg
|
4650UP0510B03 |
510 mm (20.08")
|
770 mm
|
60°
|
3.97 kg
|
4650UP0510D03 |
510 mm (20.08")
|
770 mm
|
75°
|
3.97 kg
|
4650UP0510A03 |
510 mm (20.08")
|
770 mm
|
90°
|
3.97 kg
|
4650UP0510G03 |
510 mm (20.08")
|
770 mm
|
180°
|
3.97 kg
|
4650UP0595E03 |
595 mm (23.43")
|
770 mm
|
30°
|
4.64 kg
|
4650UP0595C03 |
595 mm (23.43")
|
770 mm
|
45°
|
4.64 kg
|
4650UP0595B03 |
595 mm (23.43")
|
770 mm
|
60°
|
4.64 kg
|
4650UP0595D03 |
595 mm (23.43")
|
770 mm
|
75°
|
4.64 kg
|
4650UP0595A03 |
595 mm (23.43")
|
770 mm
|
90°
|
4.64 kg
|
4650UP0595G03 |
595 mm (23.43")
|
770 mm
|
180°
|
4.64 kg
|
4650UP0680E03 |
680 mm (26.77")
|
770 mm
|
30°
|
5.3 kg
|
4650UP0680C03 |
680 mm (26.77")
|
770 mm
|
45°
|
5.3 kg
|
4650UP0680B03 |
680 mm (26.77")
|
770 mm
|
60°
|
5.3 kg
|
4650UP0680D03 |
680 mm (26.77")
|
770 mm
|
75°
|
5.3 kg
|
4650UP0680A03 |
680 mm (26.77")
|
770 mm
|
90°
|
5.3 kg
|
4650UP0680G03 |
680 mm (26.77")
|
770 mm
|
180°
|
5.3 kg
|
4650UP0765E03 |
765 mm (30.12")
|
770 mm
|
30°
|
5.96 kg
|
4650UP0765C03 |
765 mm (30.12")
|
770 mm
|
45°
|
5.96 kg
|
4650UP0765B03 |
765 mm (30.12")
|
770 mm
|
60°
|
5.96 kg
|
4650UP0765D03 |
765 mm (30.12")
|
770 mm
|
75°
|
5.96 kg
|
4650UP0765A03 |
765 mm (30.12")
|
770 mm
|
90°
|
5.96 kg
|
4650UP0765G03 |
765 mm (30.12")
|
770 mm
|
180°
|
5.96 kg
|
4650UP0850E03 |
850 mm (33.46")
|
770 mm
|
30°
|
6.62 kg
|
4650UP0850C03 |
850 mm (33.46")
|
770 mm
|
45°
|
6.62 kg
|
4650UP0850B03 |
850 mm (33.46")
|
770 mm
|
60°
|
6.62 kg
|
4650UP0850D03 |
850 mm (33.46")
|
770 mm
|
75°
|
6.62 kg
|
4650UP0850A03 |
850 mm (33.46")
|
770 mm
|
90°
|
6.62 kg
|
4650UP0850G03 |
850 mm (33.46")
|
770 mm
|
180°
|
6.62 kg
|
4650UP0935E03 |
935 mm (36.81")
|
770 mm
|
30°
|
7.28 kg
|
4650UP0935C03 |
935 mm (36.81")
|
770 mm
|
45°
|
7.28 kg
|
4650UP0935B03 |
935 mm (36.81")
|
770 mm
|
60°
|
7.28 kg
|
4650UP0935D03 |
935 mm (36.81")
|
770 mm
|
75°
|
7.28 kg
|
4650UP0935A03 |
935 mm (36.81")
|
770 mm
|
90°
|
7.28 kg
|
4650UP0935G03 |
935 mm (36.81")
|
770 mm
|
180°
|
7.28 kg
|
4650UP1020E03 |
1020 mm (40.16")
|
770 mm
|
30°
|
7.95 kg
|
4650UP1020C03 |
1020 mm (40.16")
|
770 mm
|
45°
|
7.95 kg
|
4650UP1020B03 |
1020 mm (40.16")
|
770 mm
|
60°
|
7.95 kg
|
4650UP1020D03 |
1020 mm (40.16")
|
770 mm
|
75°
|
7.95 kg
|
4650UP1020A03 |
1020 mm (40.16")
|
770 mm
|
90°
|
7.95 kg
|
4650UP1020G03 |
1020 mm (40.16")
|
770 mm
|
180°
|
7.95 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
