Regina
UP 783T Series

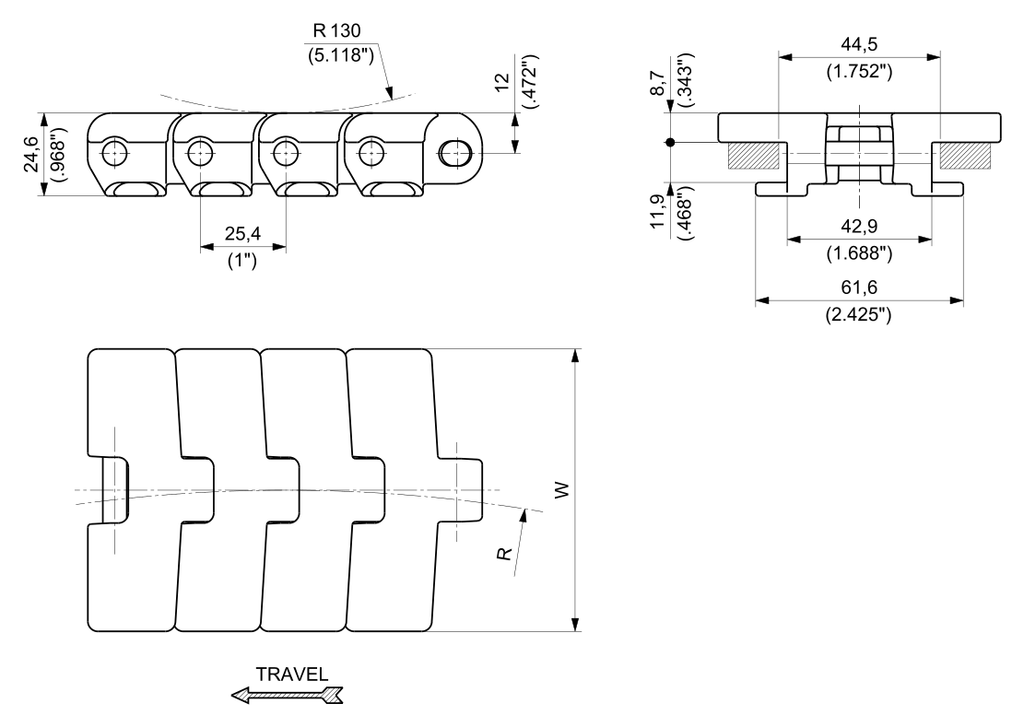

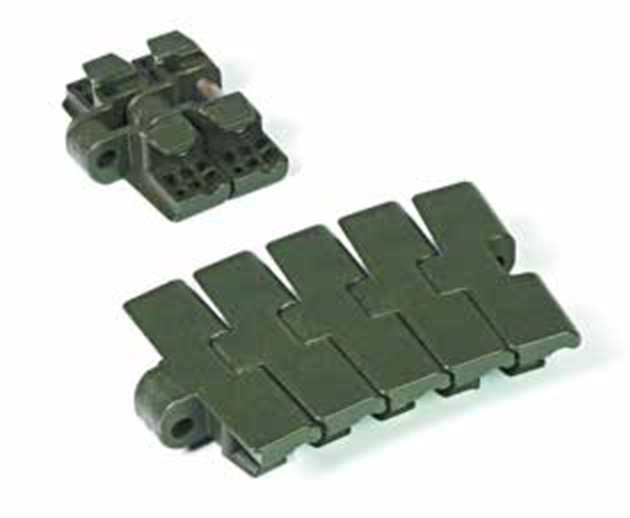

TAB sideflexing chain, 8,7 mm (0.343") thickness, solid top, light duty. For conveyor curves — corner tracks: Regina Conveyor Catalogue p344. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
UP783TKD/000 |
82.6 mm (3.25")
|
8.7 mm
|
457.2 mm
|
1700 N
|
1.76 kg
|
UP783TKRA/000 |
83.8 mm (3.30")
|
8.7 mm
|
457.2 mm
|
1700 N
|
1.78 kg
|
UP783TKG/000 |
114.3 mm (4.50")
|
8.7 mm
|
609.6 mm
|
1700 N
|
2.04 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
