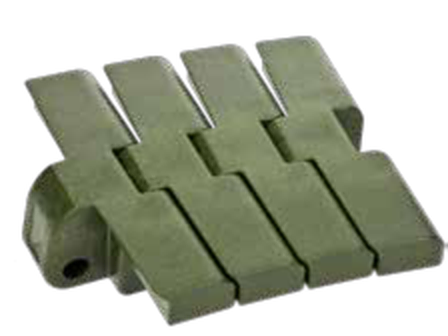

UP 793L Series
The special Low Pin Center chain design holds the chains down flat and level in the curves, unlike conventional beveled and TAB chain styles, which lift up on the outer edges. This eliminates product tippage, especially on multi-strand conveyors. All of this comes without the extra cost of magnetic corner tracks. These chains can simply be lifted anywhere in the carry track for easy cleaning and maintenance. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote

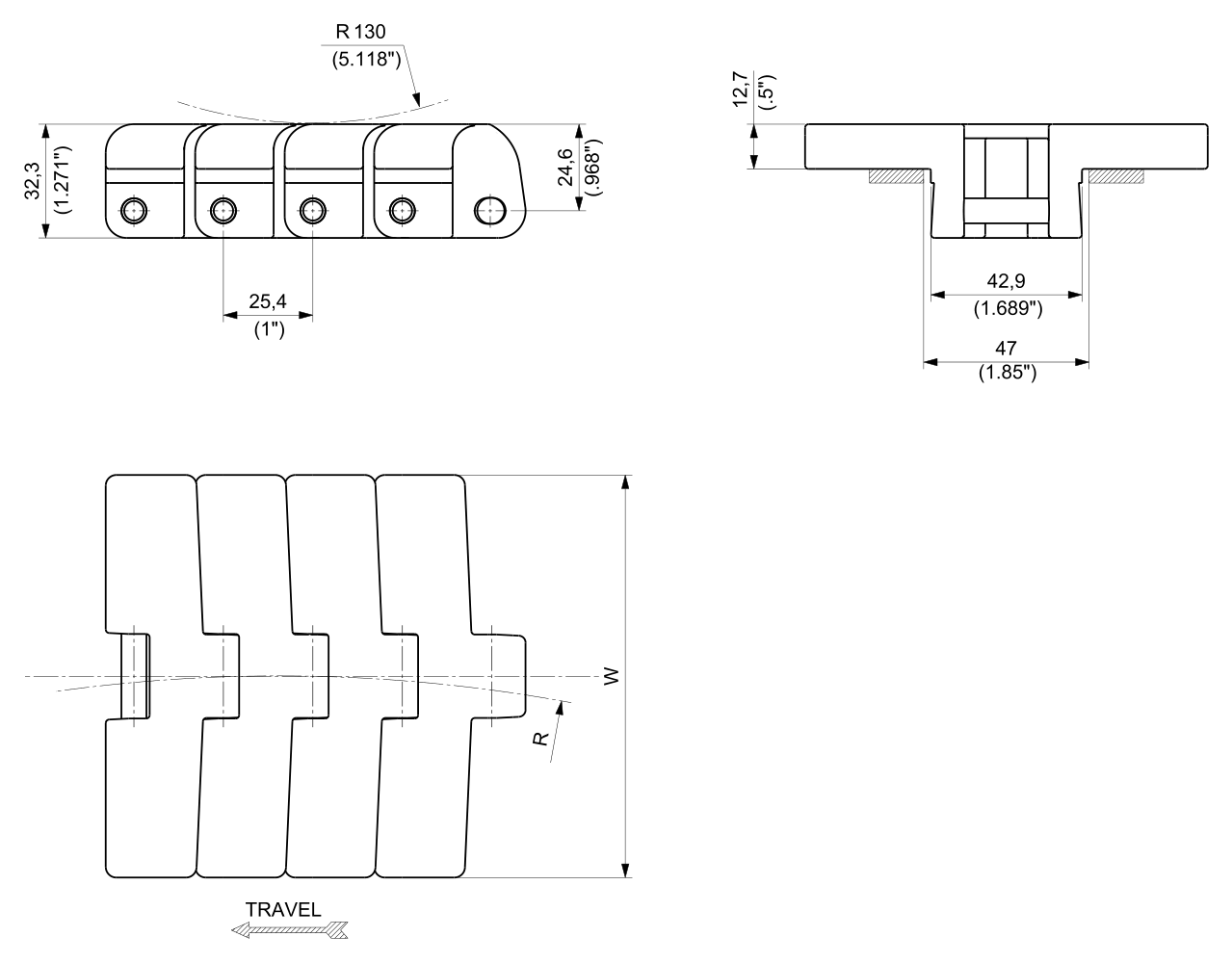

| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
UP793LKG/000 |
114.3 mm (4.5")
|
12.7 mm
|
609.6 mm
|
2200 N
|
2.55 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
