UP HF 4650 Series (Ri 1280 mm)

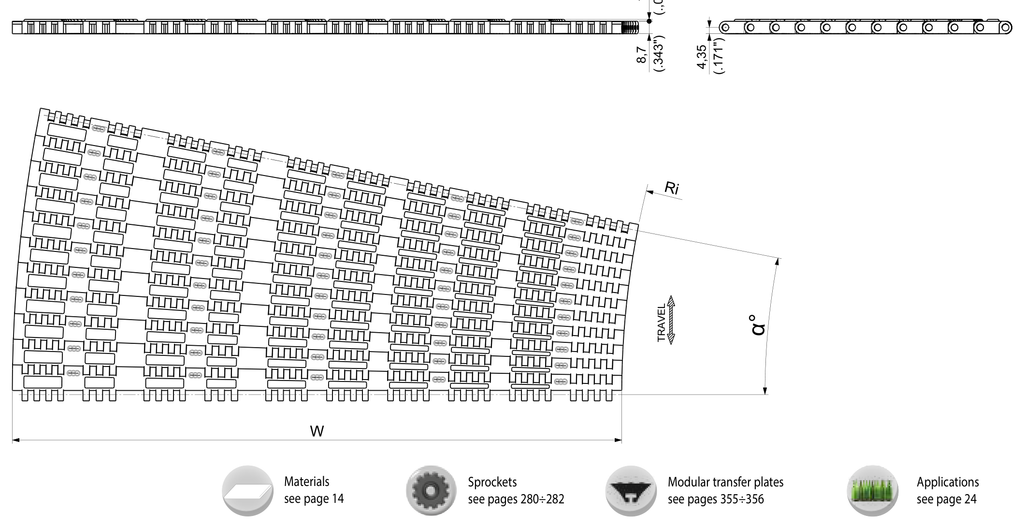

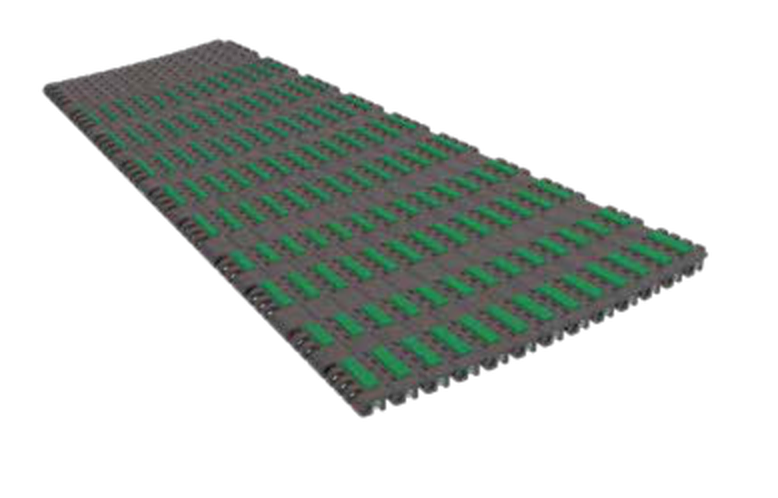

Heavy duty fixed radius rubberized surface belt for traditional left, right or "U" turn conveying, supplied as pre-configured curve segments with inner sideflexing radius Ri = 1280 mm (50.39"). Working load 25000 N/m (at 25°C/77°F). Belt weight 8,2 kg/m². Supplied as pre-configured curve segments.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Inner radius Ri | Curve angle α | Weight |
|---|---|---|---|---|
HF4650UP0340E09 |
340 mm (13.39")
|
1280 mm
|
30°
|
2.79 kg
|
HF4650UP0340C09 |
340 mm (13.39")
|
1280 mm
|
45°
|
2.79 kg
|
HF4650UP0340B09 |
340 mm (13.39")
|
1280 mm
|
60°
|
2.79 kg
|
HF4650UP0340D09 |
340 mm (13.39")
|
1280 mm
|
75°
|
2.79 kg
|
HF4650UP0340A09 |
340 mm (13.39")
|
1280 mm
|
90°
|
2.79 kg
|
HF4650UP0340G09 |
340 mm (13.39")
|
1280 mm
|
180°
|
2.79 kg
|
HF4650UP0425E09 |
425 mm (16.73")
|
1280 mm
|
30°
|
3.48 kg
|
HF4650UP0425C09 |
425 mm (16.73")
|
1280 mm
|
45°
|
3.48 kg
|
HF4650UP0425B09 |
425 mm (16.73")
|
1280 mm
|
60°
|
3.48 kg
|
HF4650UP0425D09 |
425 mm (16.73")
|
1280 mm
|
75°
|
3.48 kg
|
HF4650UP0425A09 |
425 mm (16.73")
|
1280 mm
|
90°
|
3.48 kg
|
HF4650UP0425G09 |
425 mm (16.73")
|
1280 mm
|
180°
|
3.48 kg
|
HF4650UP0510E09 |
510 mm (20.08")
|
1280 mm
|
30°
|
4.18 kg
|
HF4650UP0510C09 |
510 mm (20.08")
|
1280 mm
|
45°
|
4.18 kg
|
HF4650UP0510B09 |
510 mm (20.08")
|
1280 mm
|
60°
|
4.18 kg
|
HF4650UP0510D09 |
510 mm (20.08")
|
1280 mm
|
75°
|
4.18 kg
|
HF4650UP0510A09 |
510 mm (20.08")
|
1280 mm
|
90°
|
4.18 kg
|
HF4650UP0510G09 |
510 mm (20.08")
|
1280 mm
|
180°
|
4.18 kg
|
HF4650UP0595E09 |
595 mm (23.43")
|
1280 mm
|
30°
|
4.88 kg
|
HF4650UP0595C09 |
595 mm (23.43")
|
1280 mm
|
45°
|
4.88 kg
|
HF4650UP0595B09 |
595 mm (23.43")
|
1280 mm
|
60°
|
4.88 kg
|
HF4650UP0595D09 |
595 mm (23.43")
|
1280 mm
|
75°
|
4.88 kg
|
HF4650UP0595A09 |
595 mm (23.43")
|
1280 mm
|
90°
|
4.88 kg
|
HF4650UP0595G09 |
595 mm (23.43")
|
1280 mm
|
180°
|
4.88 kg
|
HF4650UP0680E09 |
680 mm (26.77")
|
1280 mm
|
30°
|
5.58 kg
|
HF4650UP0680C09 |
680 mm (26.77")
|
1280 mm
|
45°
|
5.58 kg
|
HF4650UP0680B09 |
680 mm (26.77")
|
1280 mm
|
60°
|
5.58 kg
|
HF4650UP0680D09 |
680 mm (26.77")
|
1280 mm
|
75°
|
5.58 kg
|
HF4650UP0680A09 |
680 mm (26.77")
|
1280 mm
|
90°
|
5.58 kg
|
HF4650UP0680G09 |
680 mm (26.77")
|
1280 mm
|
180°
|
5.58 kg
|
HF4650UP0765E09 |
765 mm (30.12")
|
1280 mm
|
30°
|
6.27 kg
|
HF4650UP0765C09 |
765 mm (30.12")
|
1280 mm
|
45°
|
6.27 kg
|
HF4650UP0765B09 |
765 mm (30.12")
|
1280 mm
|
60°
|
6.27 kg
|
HF4650UP0765D09 |
765 mm (30.12")
|
1280 mm
|
75°
|
6.27 kg
|
HF4650UP0765A09 |
765 mm (30.12")
|
1280 mm
|
90°
|
6.27 kg
|
HF4650UP0765G09 |
765 mm (30.12")
|
1280 mm
|
180°
|
6.27 kg
|
HF4650UP0850E09 |
850 mm (33.46")
|
1280 mm
|
30°
|
6.97 kg
|
HF4650UP0850C09 |
850 mm (33.46")
|
1280 mm
|
45°
|
6.97 kg
|
HF4650UP0850B09 |
850 mm (33.46")
|
1280 mm
|
60°
|
6.97 kg
|
HF4650UP0850D09 |
850 mm (33.46")
|
1280 mm
|
75°
|
6.97 kg
|
HF4650UP0850A09 |
850 mm (33.46")
|
1280 mm
|
90°
|
6.97 kg
|
HF4650UP0850G09 |
850 mm (33.46")
|
1280 mm
|
180°
|
6.97 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
