UP HF 4650 Series (Ri 770 mm)

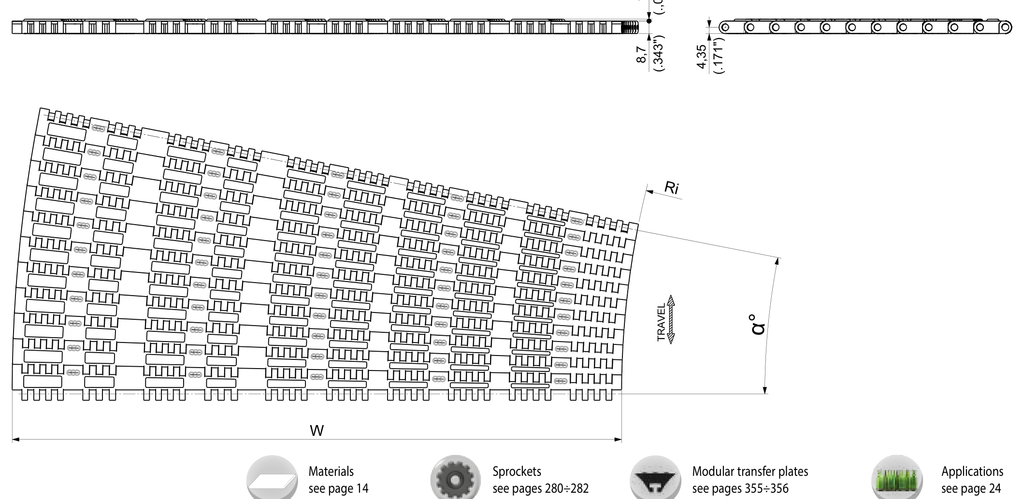

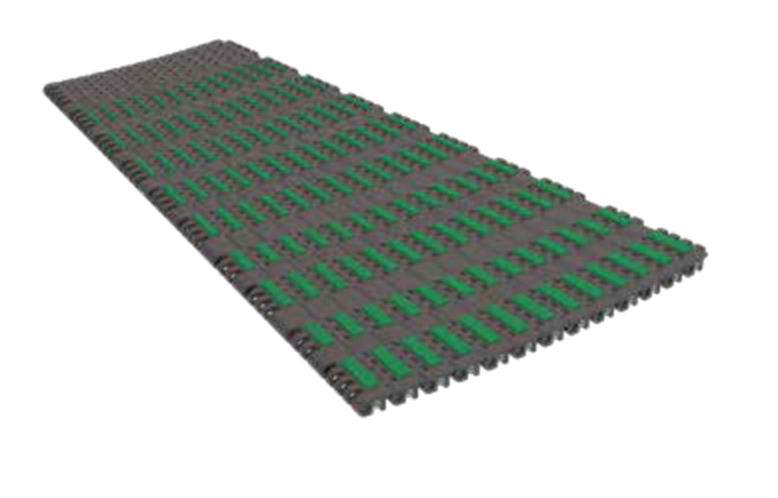

Heavy duty fixed radius rubberized surface belt for traditional left, right or "U" turn conveying, supplied as pre-configured curve segments with inner sideflexing radius Ri = 770 mm (30.31"). Working load 25000 N/m (at 25°C/77°F). Belt weight 8,2 kg/m². Supplied as pre-configured curve segments.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Inner radius Ri | Curve angle α | Weight |
|---|---|---|---|---|
HF4650UP0340E03 |
340 mm (13.39")
|
770 mm
|
30°
|
2.79 kg
|
HF4650UP0340C03 |
340 mm (13.39")
|
770 mm
|
45°
|
2.79 kg
|
HF4650UP0340B03 |
340 mm (13.39")
|
770 mm
|
60°
|
2.79 kg
|
HF4650UP0340D03 |
340 mm (13.39")
|
770 mm
|
75°
|
2.79 kg
|
HF4650UP0340A03 |
340 mm (13.39")
|
770 mm
|
90°
|
2.79 kg
|
HF4650UP0340G03 |
340 mm (13.39")
|
770 mm
|
180°
|
2.79 kg
|
HF4650UP0425E03 |
425 mm (16.73")
|
770 mm
|
30°
|
3.48 kg
|
HF4650UP0425C03 |
425 mm (16.73")
|
770 mm
|
45°
|
3.48 kg
|
HF4650UP0425B03 |
425 mm (16.73")
|
770 mm
|
60°
|
3.48 kg
|
HF4650UP0425D03 |
425 mm (16.73")
|
770 mm
|
75°
|
3.48 kg
|
HF4650UP0425A03 |
425 mm (16.73")
|
770 mm
|
90°
|
3.48 kg
|
HF4650UP0425G03 |
425 mm (16.73")
|
770 mm
|
180°
|
3.48 kg
|
HF4650UP0510E03 |
510 mm (20.08")
|
770 mm
|
30°
|
4.18 kg
|
HF4650UP0510C03 |
510 mm (20.08")
|
770 mm
|
45°
|
4.18 kg
|
HF4650UP0510B03 |
510 mm (20.08")
|
770 mm
|
60°
|
4.18 kg
|
HF4650UP0510D03 |
510 mm (20.08")
|
770 mm
|
75°
|
4.18 kg
|
HF4650UP0510A03 |
510 mm (20.08")
|
770 mm
|
90°
|
4.18 kg
|
HF4650UP0510G03 |
510 mm (20.08")
|
770 mm
|
180°
|
4.18 kg
|
HF4650UP0595E03 |
595 mm (23.43")
|
770 mm
|
30°
|
4.88 kg
|
HF4650UP0595C03 |
595 mm (23.43")
|
770 mm
|
45°
|
4.88 kg
|
HF4650UP0595B03 |
595 mm (23.43")
|
770 mm
|
60°
|
4.88 kg
|
HF4650UP0595D03 |
595 mm (23.43")
|
770 mm
|
75°
|
4.88 kg
|
HF4650UP0595A03 |
595 mm (23.43")
|
770 mm
|
90°
|
4.88 kg
|
HF4650UP0595G03 |
595 mm (23.43")
|
770 mm
|
180°
|
4.88 kg
|
HF4650UP0680E03 |
680 mm (26.77")
|
770 mm
|
30°
|
5.58 kg
|
HF4650UP0680C03 |
680 mm (26.77")
|
770 mm
|
45°
|
5.58 kg
|
HF4650UP0680B03 |
680 mm (26.77")
|
770 mm
|
60°
|
5.58 kg
|
HF4650UP0680D03 |
680 mm (26.77")
|
770 mm
|
75°
|
5.58 kg
|
HF4650UP0680A03 |
680 mm (26.77")
|
770 mm
|
90°
|
5.58 kg
|
HF4650UP0680G03 |
680 mm (26.77")
|
770 mm
|
180°
|
5.58 kg
|
HF4650UP0765E03 |
765 mm (30.12")
|
770 mm
|
30°
|
6.27 kg
|
HF4650UP0765C03 |
765 mm (30.12")
|
770 mm
|
45°
|
6.27 kg
|
HF4650UP0765B03 |
765 mm (30.12")
|
770 mm
|
60°
|
6.27 kg
|
HF4650UP0765D03 |
765 mm (30.12")
|
770 mm
|
75°
|
6.27 kg
|
HF4650UP0765A03 |
765 mm (30.12")
|
770 mm
|
90°
|
6.27 kg
|
HF4650UP0765G03 |
765 mm (30.12")
|
770 mm
|
180°
|
6.27 kg
|
HF4650UP0850E03 |
850 mm (33.46")
|
770 mm
|
30°
|
6.97 kg
|
HF4650UP0850C03 |
850 mm (33.46")
|
770 mm
|
45°
|
6.97 kg
|
HF4650UP0850B03 |
850 mm (33.46")
|
770 mm
|
60°
|
6.97 kg
|
HF4650UP0850D03 |
850 mm (33.46")
|
770 mm
|
75°
|
6.97 kg
|
HF4650UP0850A03 |
850 mm (33.46")
|
770 mm
|
90°
|
6.97 kg
|
HF4650UP0850G03 |
850 mm (33.46")
|
770 mm
|
180°
|
6.97 kg
|
HF4650UP0935E03 |
935 mm (36.81")
|
770 mm
|
30°
|
7.67 kg
|
HF4650UP0935C03 |
935 mm (36.81")
|
770 mm
|
45°
|
7.67 kg
|
HF4650UP0935B03 |
935 mm (36.81")
|
770 mm
|
60°
|
7.67 kg
|
HF4650UP0935D03 |
935 mm (36.81")
|
770 mm
|
75°
|
7.67 kg
|
HF4650UP0935A03 |
935 mm (36.81")
|
770 mm
|
90°
|
7.67 kg
|
HF4650UP0935G03 |
935 mm (36.81")
|
770 mm
|
180°
|
7.67 kg
|
HF4650UP1020E03 |
1020 mm (40.16")
|
770 mm
|
30°
|
8.36 kg
|
HF4650UP1020C03 |
1020 mm (40.16")
|
770 mm
|
45°
|
8.36 kg
|
HF4650UP1020B03 |
1020 mm (40.16")
|
770 mm
|
60°
|
8.36 kg
|
HF4650UP1020D03 |
1020 mm (40.16")
|
770 mm
|
75°
|
8.36 kg
|
HF4650UP1020A03 |
1020 mm (40.16")
|
770 mm
|
90°
|
8.36 kg
|
HF4650UP1020G03 |
1020 mm (40.16")
|
770 mm
|
180°
|
8.36 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
