Regina
UP RR 611 Series

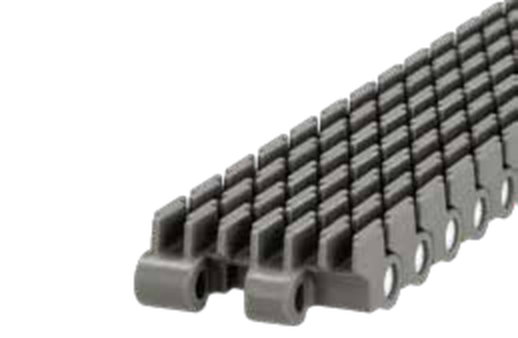

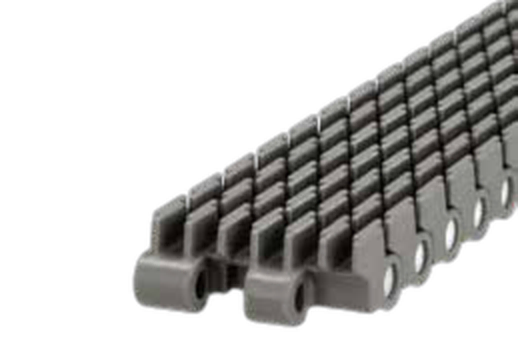

Raised rib surface with special "Z" design guarantees the best support for the most unstable products like PET bottles with petaloid base. Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote

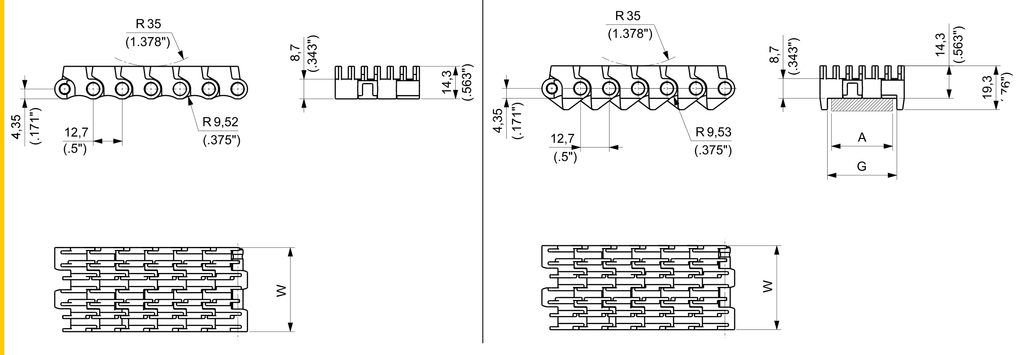

| Width W | Internal guide G | Guide track A | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|---|
29 mm |
— | — | 570 N |
— | 0.37 kg/m |
|
37 mm |
30.5 mm |
30 mm |
570 N |
0.47 kg/m |
||
46 mm |
— | — | 570 N |
— | 0.57 kg/m |
|
55 mm |
— | — | 570 N |
— | 0.69 kg/m |
|
76 mm |
— | — | 1067 N |
— | 0.75 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
12.7mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
