Regina
AR 793M Series

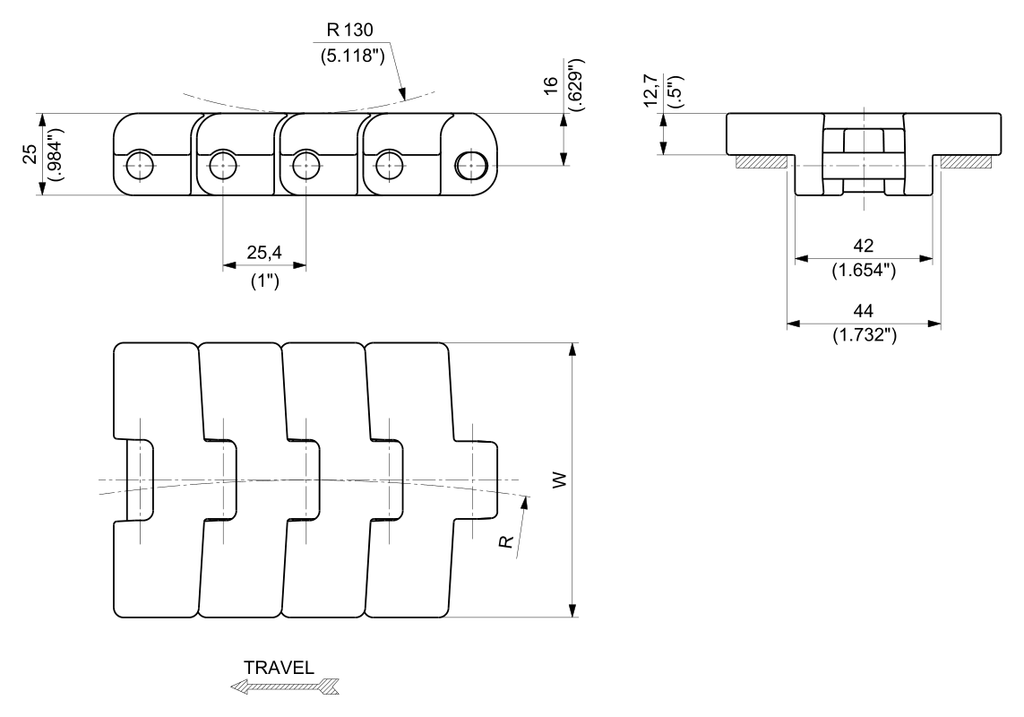

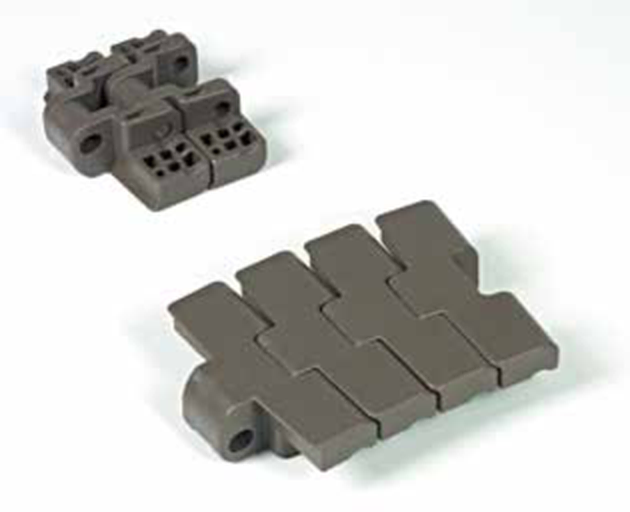

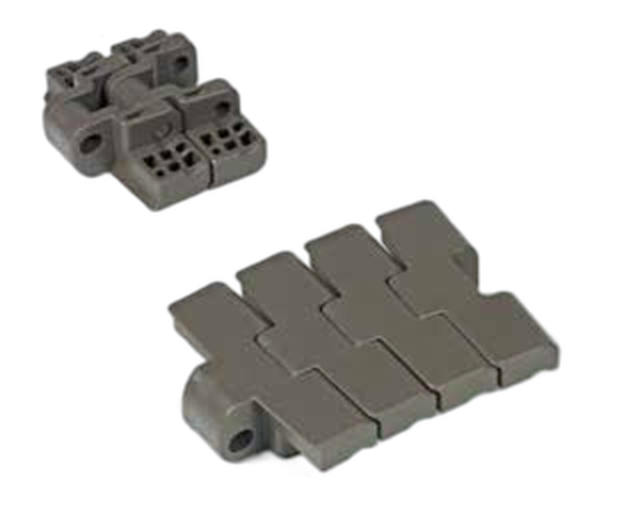

Magnetic sideflexing chain, 12,7 mm (0.5") thickness, solid top, heavy duty. For conveyor curves — corner tracks: Regina Conveyor Catalogue p303. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
AR793MKRA/000 |
83.8 mm (3.30")
|
12.7 mm
|
500 mm
|
2200 N
|
2.04 kg
|
AR793MKG/000 |
114.3 mm (4.50")
|
12.7 mm
|
500 mm
|
2200 N
|
2.38 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- AR — Abrasion Resistant Polyamide
- Packaging
- Rolls of
3.048m
AR — Abrasion Resistance Polyamide
Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.
