Regina

D2K 610 Series

Name: D2K 610 Series
Brand: Regina

Modular Belts · 610

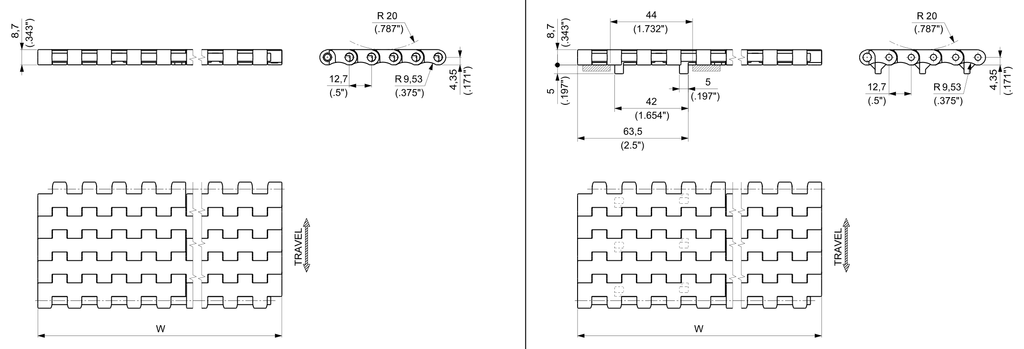

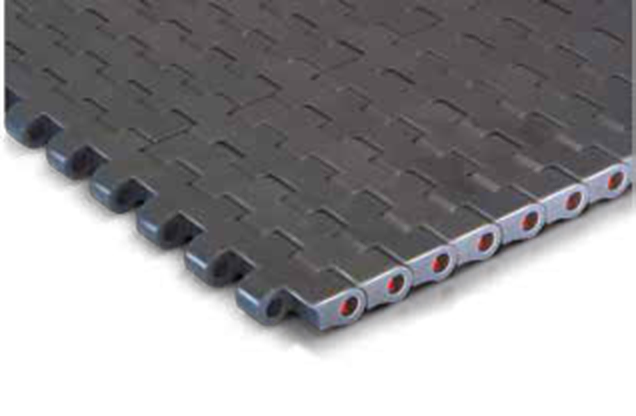

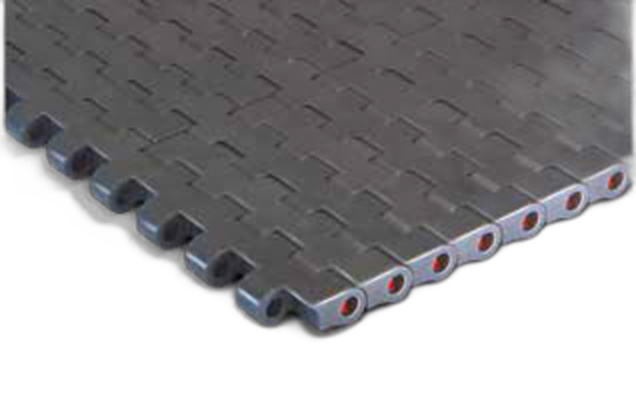

Matveyor 610 Series solid top modular belt, 12,7 mm pitch, D2K — Special Delrin® Reinforced with Kevlar®. Belt widths 85 mm (3.346") or wider in 85 mm (3.346") increments; belts wider than 1020 mm (40.16") are available in 85 mm (3.35") increments by substituting the last four digits of the part number with the desired width. Belt widths ≤ 1020 mm (40.16") are supplied in rolls of 3,048 m (10 ft) each. Belt widths ≥ 1105 mm (43.50") are supplied at the length requested by the customer.

Select a part number to add it to your quote

Width

Width	Part Number: Without Tracking Guide	Part Number: With Tracking Guide	Weight
85 mm (3.35")			`0.81` kg/m
170 mm (6.69")			`1.62` kg/m
255 mm (10.04")			`2.44` kg/m
340 mm (13.39")			`3.25` kg/m
425 mm (16.73")			`4.06` kg/m
510 mm (20.08")			`4.87` kg/m
595 mm (23.43")			`5.68` kg/m
680 mm (26.77")			`6.49` kg/m
765 mm (30.12")			`7.31` kg/m
850 mm (33.46")			`8.12` kg/m
935 mm (36.81")			`8.93` kg/m
1020 mm (40.16")			`9.74` kg/m

Type: Matveyor
Pitch: 12.7 mm
Thickness: 8.7 mm
Material: D2K — Special Delrin® Reinforced with Kevlar®
Packaging: Rolls of 3.048 m
