D2K 650M Series

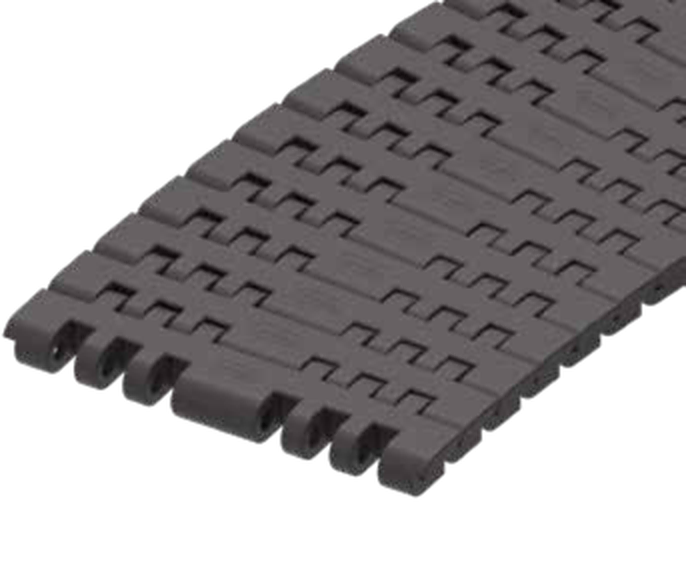

Sideflexing magnetic ½" pitch chain, 8,7 mm (0.343") thickness, solid top. For packaging machine infeed layouts with 90° curves (corner tracks — Regina Conveyor Catalogue p303). Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
D2K650MKRA/000 |
83.8 mm (3.30")
|
8.7 mm
|
500 mm
|
2500 N
|
1.19 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
12.7mm- Thickness
8.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
