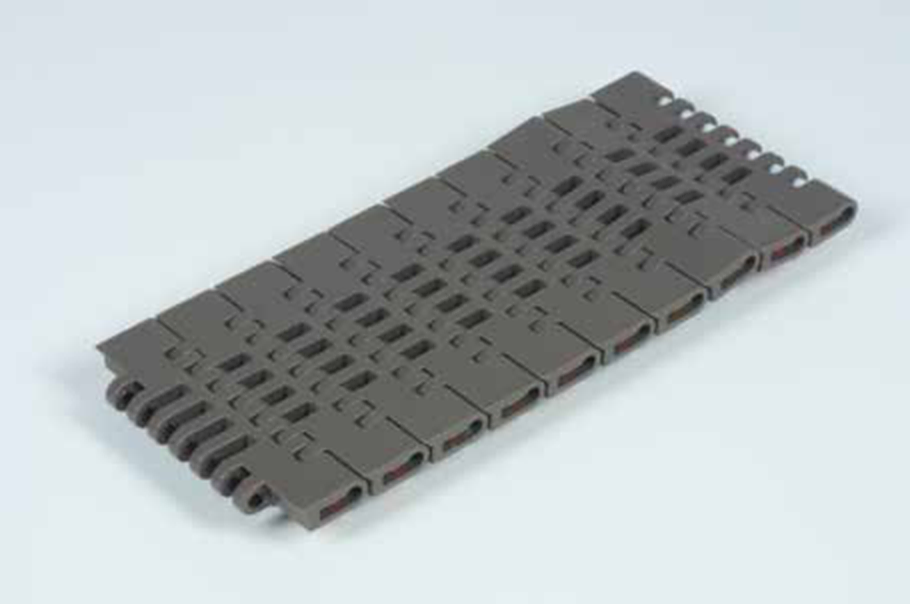

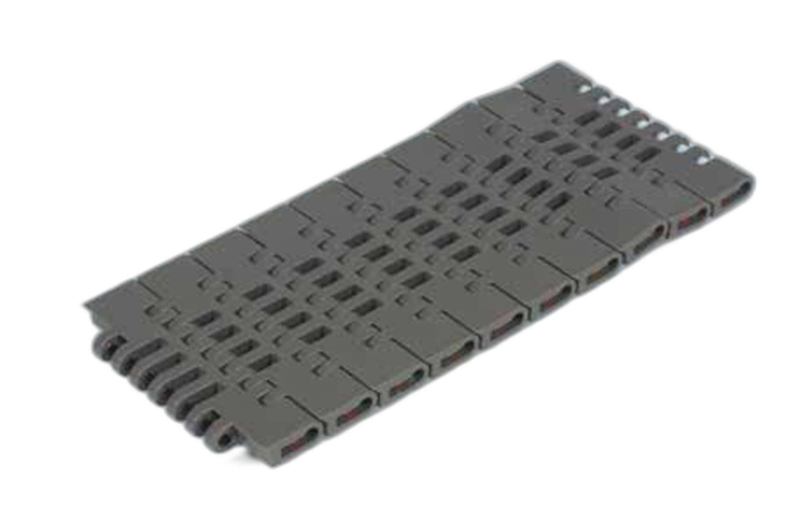

D2K 7200 Series Chain
This chain has an excellent combination of open and support areas to allow drainage of liquids and good support of the conveyed product. Particularly suitable for conveying of aluminium cans. Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote
| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
8.7 mm |
2300 N |
0.8 kg/m |
||
114.3 mm |
8.7 mm |
3290 N |
1.08 kg/m |
||
152.4 mm |
8.7 mm |
4370 N |
1.41 kg/m |
||
190.5 mm |
8.7 mm |
5450 N |
1.74 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
19.05mm- Thickness
8.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
