EF 7300 Series

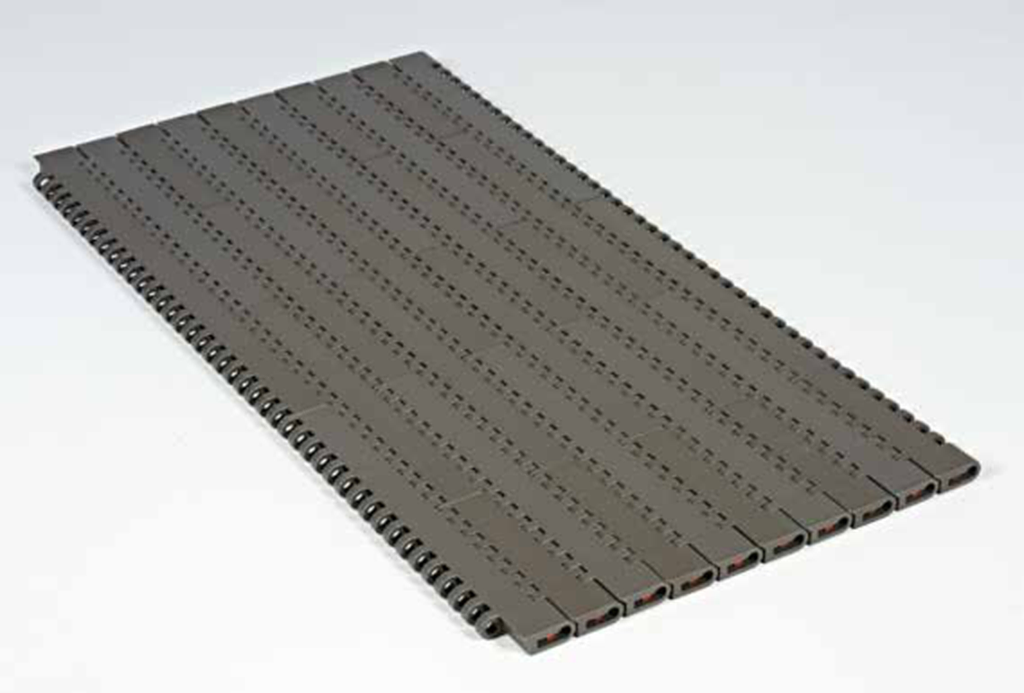

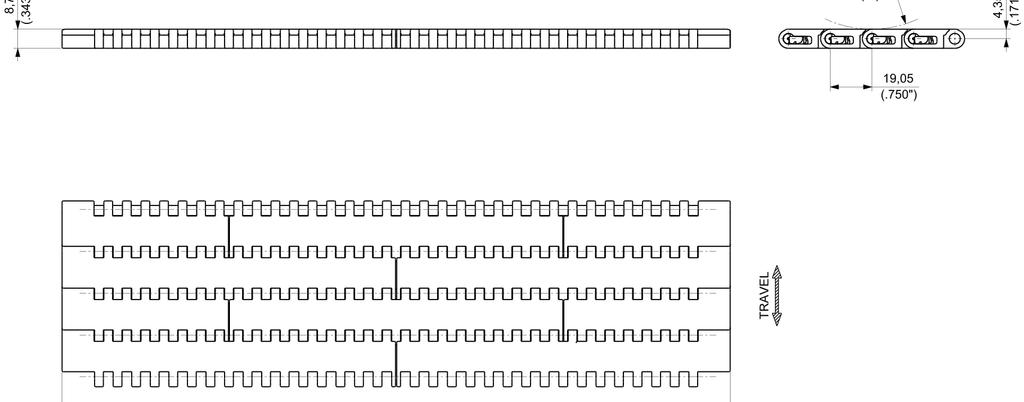

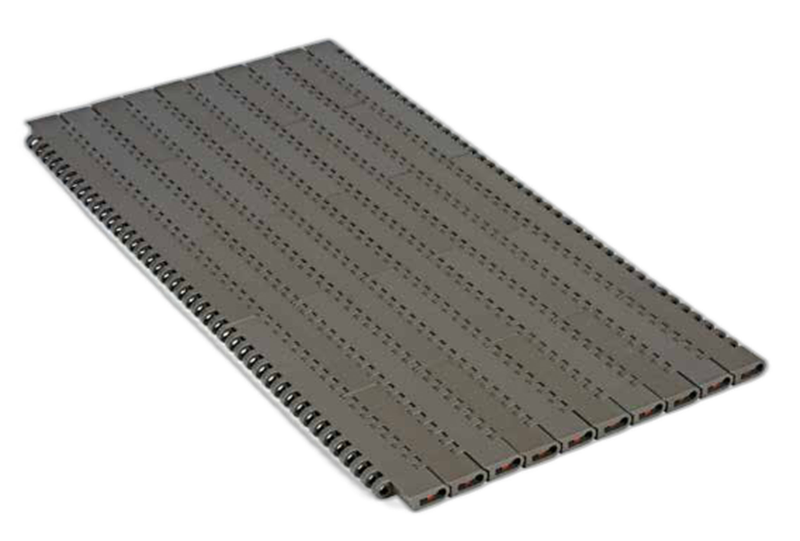

Matveyor 7300 Series solid top modular belt, 19,05 mm pitch, EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic. Belt widths 228,6 mm (9") or wider in 76,2 mm (3") increments; belts wider than 1524 mm (60") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 63" wide UP belt → 7300UP063). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
7300EF009 |
9" (228.6 mm) | Austenitic Stainless Steel | 30000 N |
2.14 kg/m |
7300EF012 |
12" (304.8 mm) | Austenitic Stainless Steel | 30000 N |
2.85 kg/m |
7300EF015 |
15" (381.0 mm) | Austenitic Stainless Steel | 30000 N |
3.57 kg/m |
7300EF018 |
18" (457.2 mm) | Austenitic Stainless Steel | 30000 N |
4.28 kg/m |
7300EF021 |
21" (533.4 mm) | Austenitic Stainless Steel | 30000 N |
4.99 kg/m |
7300EF024 |
24" (609.6 mm) | Austenitic Stainless Steel | 30000 N |
5.71 kg/m |
7300EF027 |
27" (685.8 mm) | Austenitic Stainless Steel | 30000 N |
6.42 kg/m |
7300EF030 |
30" (762.0 mm) | Austenitic Stainless Steel | 30000 N |
7.13 kg/m |
7300EF033 |
33" (838.2 mm) | Austenitic Stainless Steel | 30000 N |
7.85 kg/m |
7300EF036 |
36" (914.4 mm) | Austenitic Stainless Steel | 30000 N |
8.56 kg/m |
7300EF039 |
39" (990.6 mm) | Austenitic Stainless Steel | 30000 N |
9.27 kg/m |
7300EF042 |
42" (1066.8 mm) | Austenitic Stainless Steel | 30000 N |
9.99 kg/m |
7300EF045 |
45" (1143.0 mm) | Austenitic Stainless Steel | 30000 N |
10.7 kg/m |
7300EF048 |
48" (1219.2 mm) | Austenitic Stainless Steel | 30000 N |
11.41 kg/m |
7300EF051 |
51" (1295.4 mm) | Austenitic Stainless Steel | 30000 N |
12.12 kg/m |
7300EF054 |
54" (1371.6 mm) | Austenitic Stainless Steel | 30000 N |
12.84 kg/m |
7300EF057 |
57" (1447.8 mm) | Austenitic Stainless Steel | 30000 N |
13.55 kg/m |
7300EF060 |
60" (1524.0 mm) | Austenitic Stainless Steel | 30000 N |
14.26 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
19.05mm- Thickness
8.7mm- Material
- EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic
- Packaging
- Rolls of
3.048m
EF — Ecological Friction Abating Sliding Thermoplastic (e-F.A.S.T.®)
Ultimate dry running homopolymer acetal resin developed combining REGINA field expertise with Delrin (former DuPont™) centenarian acetal resin knowledge. Today's standards for high performance filling lines require a combination of high speed and high productivity, while reducing or eliminating lubrication. REGINA e-F.A.S.T.® material is capable of exceeding such standards, thanks to its unique characteristic of delivering a much lower and constant coefficent of friction over time in dry or almost dry running conditions vs. other plastic chains.
