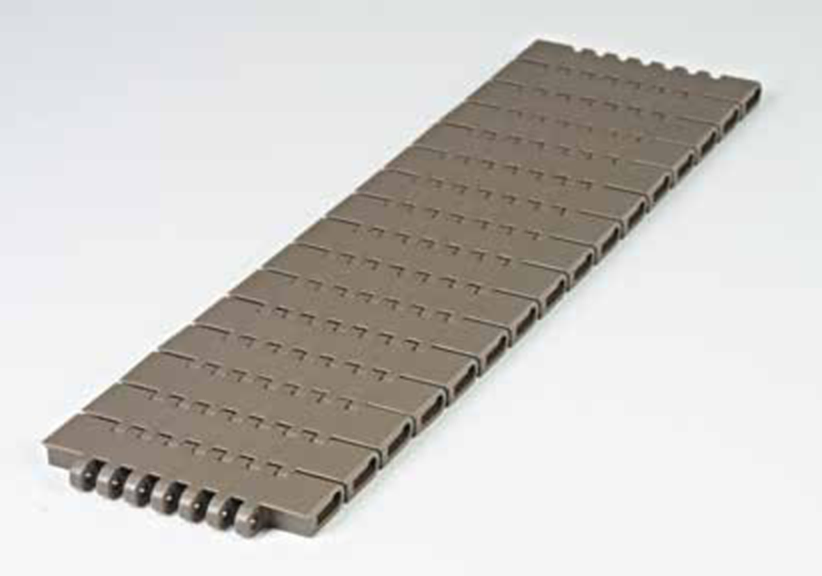

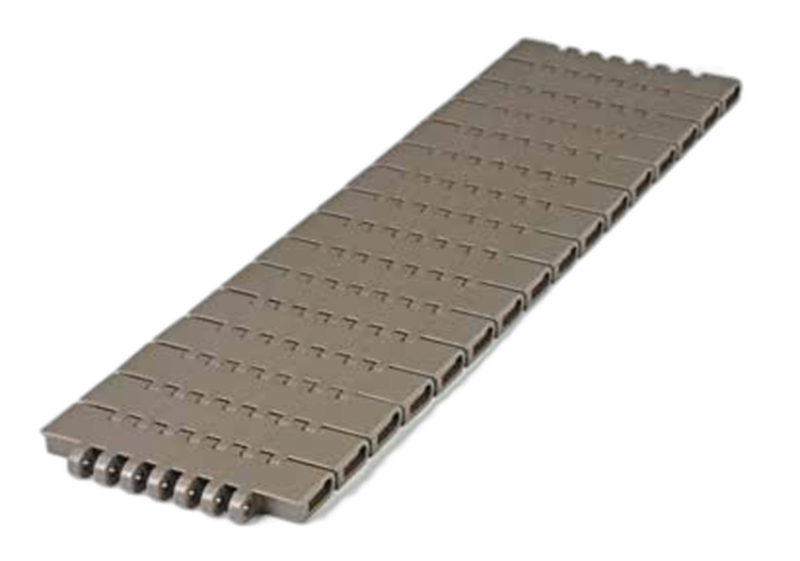

EF 7300 Series Chain
Extremely good flatness, manufacturing accuracy, and low coefficient of friction make the side transfer of the products very easy. Completely closed surface, no gap between the modules, even when engaging on the sprockets. Particularly suitable for glass products, small sized products and unstable containers (for example PET bottles with petaloid base). Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote

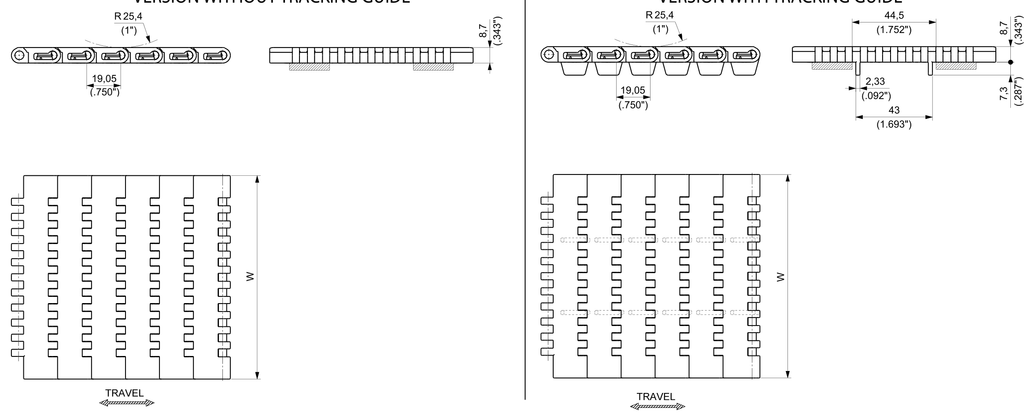

| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
8.7 mm |
2300 N |
0.84 kg/m |
||
114.3 mm |
8.7 mm |
3290 N |
1.15 kg/m |
||
152.4 mm |
8.7 mm |
4370 N |
1.51 kg/m |
||
190.5 mm |
8.7 mm |
5450 N |
1.87 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
19.05mm- Thickness
8.7mm- Material
- EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic
- Packaging
- Rolls of
3.048m
EF — Ecological Friction Abating Sliding Thermoplastic (e-F.A.S.T.®)
Ultimate dry running homopolymer acetal resin developed combining REGINA field expertise with Delrin (former DuPont™) centenarian acetal resin knowledge. Today's standards for high performance filling lines require a combination of high speed and high productivity, while reducing or eliminating lubrication. REGINA e-F.A.S.T.® material is capable of exceeding such standards, thanks to its unique characteristic of delivering a much lower and constant coefficent of friction over time in dry or almost dry running conditions vs. other plastic chains.
