EF 8300 Series

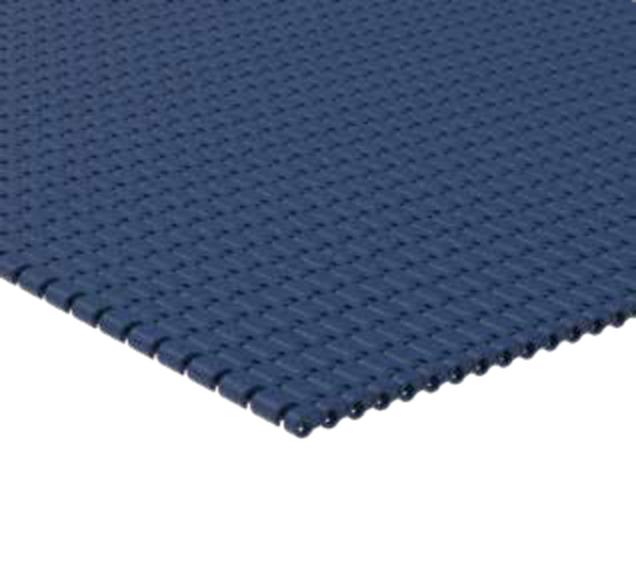

Matveyor 8300 Series solid top modular belt, 8 mm pitch, EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic. Belt widths 76,2 mm (3") or wider in 76,2 mm (3") increments; belts wider than 990,6 mm (39") are available by substituting the last three digits of the part number with the desired width in inches (e.g. 42" → 8300EF042). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
8300EF006 |
6" (152.4 mm) | Austenitic Stainless Steel | 8000 N |
0.82 kg/m |
8300EF009 |
9" (228.6 mm) | Austenitic Stainless Steel | 8000 N |
1.23 kg/m |
8300EF012 |
12" (304.8 mm) | Austenitic Stainless Steel | 8000 N |
1.63 kg/m |
8300EF015 |
15" (381.0 mm) | Austenitic Stainless Steel | 8000 N |
2.04 kg/m |
8300EF018 |
18" (457.2 mm) | Austenitic Stainless Steel | 8000 N |
2.45 kg/m |
8300EF021 |
21" (533.4 mm) | Austenitic Stainless Steel | 8000 N |
2.86 kg/m |
8300EF024 |
24" (609.6 mm) | Austenitic Stainless Steel | 8000 N |
3.27 kg/m |
8300EF027 |
27" (685.8 mm) | Austenitic Stainless Steel | 8000 N |
3.68 kg/m |
8300EF030 |
30" (762.0 mm) | Austenitic Stainless Steel | 8000 N |
4.08 kg/m |
8300EF033 |
33" (838.2 mm) | Austenitic Stainless Steel | 8000 N |
4.49 kg/m |
8300EF036 |
36" (914.4 mm) | Austenitic Stainless Steel | 8000 N |
4.9 kg/m |
8300EF039 |
39" (990.6 mm) | Austenitic Stainless Steel | 8000 N |
5.31 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
8.0mm- Thickness
6.15mm- Material
- EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic
- Packaging
- Rolls of
3.048m
EF — Ecological Friction Abating Sliding Thermoplastic (e-F.A.S.T.®)
Ultimate dry running homopolymer acetal resin developed combining REGINA field expertise with Delrin (former DuPont™) centenarian acetal resin knowledge. Today's standards for high performance filling lines require a combination of high speed and high productivity, while reducing or eliminating lubrication. REGINA e-F.A.S.T.® material is capable of exceeding such standards, thanks to its unique characteristic of delivering a much lower and constant coefficent of friction over time in dry or almost dry running conditions vs. other plastic chains.
