PP 200 Series

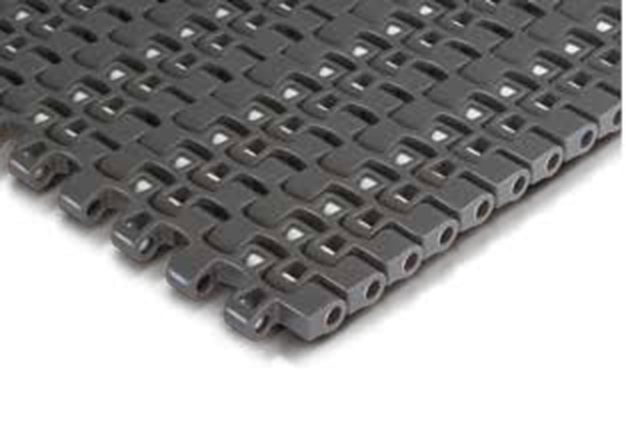

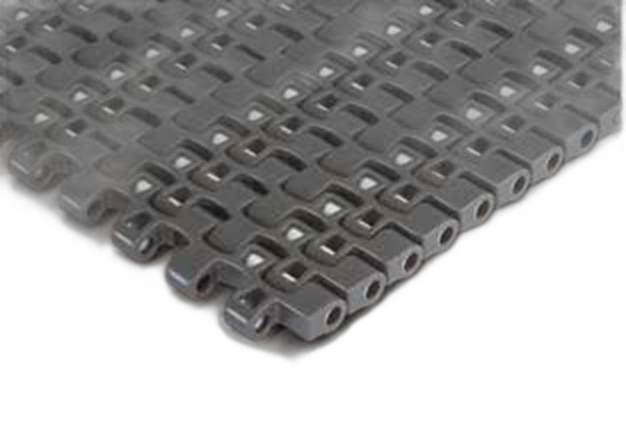

Matveyor 200 Series flush grid modular belt, 12,7 mm pitch, PP — Special Polypropylene. Belt widths 76,2 mm (3") or wider in 76,2 mm (3") increments; belts wider than 990,6 mm (39") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 42" wide UP belt → 200BUP042). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
200BPP003 |
3" (76.2 mm) | Austenitic Stainless Steel | 10000 N |
0.41 kg/m |
200BPP006 |
6" (152.4 mm) | Austenitic Stainless Steel | 10000 N |
0.83 kg/m |
200BPP009 |
9" (228.6 mm) | Austenitic Stainless Steel | 10000 N |
1.24 kg/m |
200BPP012 |
12" (304.8 mm) | Austenitic Stainless Steel | 10000 N |
1.66 kg/m |
200BPP015 |
15" (381.0 mm) | Austenitic Stainless Steel | 10000 N |
2.07 kg/m |
200BPP018 |
18" (457.2 mm) | Austenitic Stainless Steel | 10000 N |
2.49 kg/m |
200BPP021 |
21" (533.4 mm) | Austenitic Stainless Steel | 10000 N |
2.9 kg/m |
200BPP024 |
24" (609.6 mm) | Austenitic Stainless Steel | 10000 N |
3.32 kg/m |
200BPP027 |
27" (685.8 mm) | Austenitic Stainless Steel | 10000 N |
3.73 kg/m |
200BPP030 |
30" (762.0 mm) | Austenitic Stainless Steel | 10000 N |
4.15 kg/m |
200BPP033 |
33" (838.2 mm) | Austenitic Stainless Steel | 10000 N |
4.56 kg/m |
200BPP036 |
36" (914.4 mm) | Austenitic Stainless Steel | 10000 N |
4.97 kg/m |
200BPP039 |
39" (990.6 mm) | Austenitic Stainless Steel | 10000 N |
5.39 kg/m |
No products match the selected filters.
Product Information

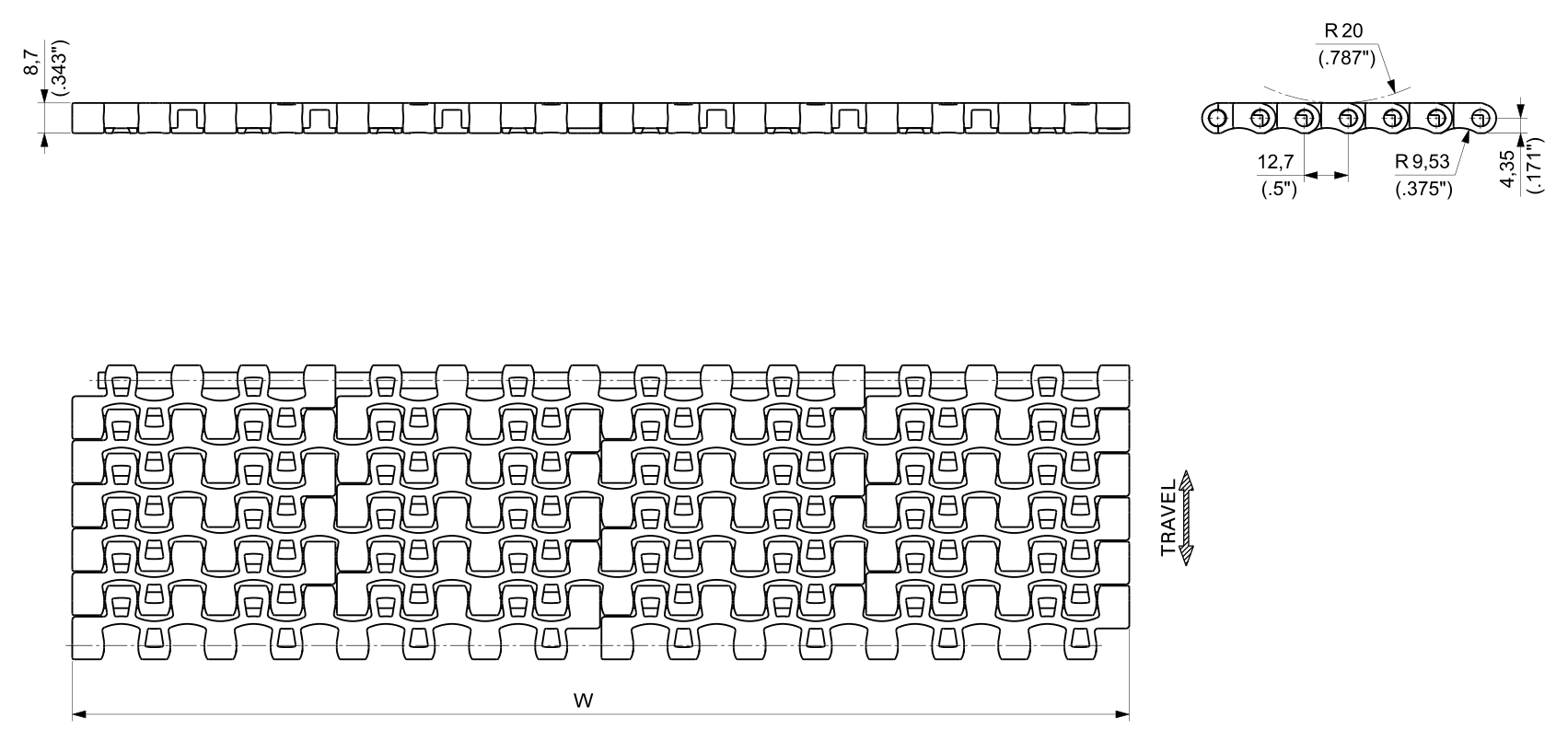

- Type
- Matveyor
- Pitch
12.7mm- Thickness
8.7mm- Material
- PP — Special Polypropylene
- Packaging
- Rolls of
3.048m
PP — Special Polypropylene
For Matveyor® Belts. Special polypropylene that guarantees the best corrosion resistance to withstand chemical attack and an optimum high temperature resistance.
