Regina

PP 300 Series

Name: PP 300 Series
Brand: Regina

Modular Belts · 300

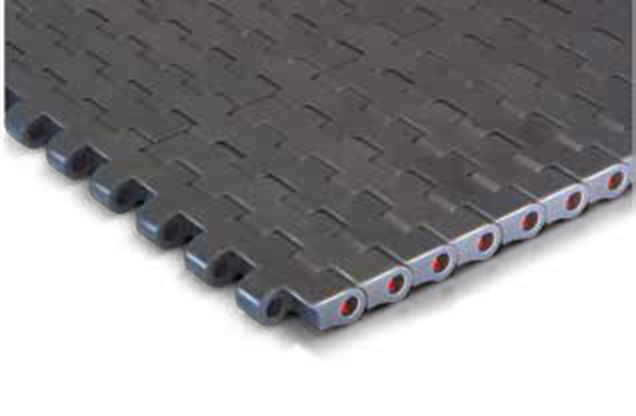

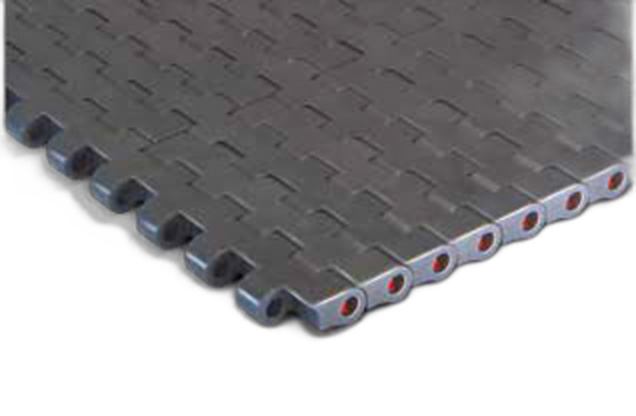

Matveyor 300 Series solid top modular belt, 12,7 mm pitch, PP — Special Polypropylene. Belt widths 114,3 mm (4 ½"), 76,2 mm (3") or wider in 76,2 mm (3") increments; belts wider than 990,6 mm (39") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 42" wide UP belt → 300BUP042). 114,3 mm (4.5") wide belt is supplied in rolls of 3,048 m (10 ft) each. Other belt widths are supplied in the length requested by the customer.

Select a row to add it to your quote

Width

Code	Width W	Pin	Working load	Weight
`300APPKG/000`	4.5" (114.3 mm)	Austenitic Stainless Steel	`10000` N	`0.75` kg/m
`300BPP003`	3" (76.2 mm)	Austenitic Stainless Steel	`10000` N	`0.5` kg/m
`300BPP006`	6" (152.4 mm)	Austenitic Stainless Steel	`10000` N	`1.0` kg/m
`300BPP009`	9" (228.6 mm)	Austenitic Stainless Steel	`10000` N	`1.5` kg/m
`300BPP012`	12" (304.8 mm)	Austenitic Stainless Steel	`10000` N	`2.0` kg/m
`300BPP015`	15" (381.0 mm)	Austenitic Stainless Steel	`10000` N	`2.5` kg/m
`300BPP018`	18" (457.2 mm)	Austenitic Stainless Steel	`10000` N	`2.99` kg/m
`300BPP021`	21" (533.4 mm)	Austenitic Stainless Steel	`10000` N	`3.49` kg/m
`300BPP024`	24" (609.6 mm)	Austenitic Stainless Steel	`10000` N	`3.99` kg/m
`300BPP027`	27" (685.8 mm)	Austenitic Stainless Steel	`10000` N	`4.49` kg/m
`300BPP030`	30" (762.0 mm)	Austenitic Stainless Steel	`10000` N	`4.99` kg/m
`300BPP033`	33" (838.2 mm)	Austenitic Stainless Steel	`10000` N	`5.49` kg/m
`300BPP036`	36" (914.4 mm)	Austenitic Stainless Steel	`10000` N	`5.99` kg/m
`300BPP039`	39" (990.6 mm)	Austenitic Stainless Steel	`10000` N	`6.49` kg/m

Type: Matveyor

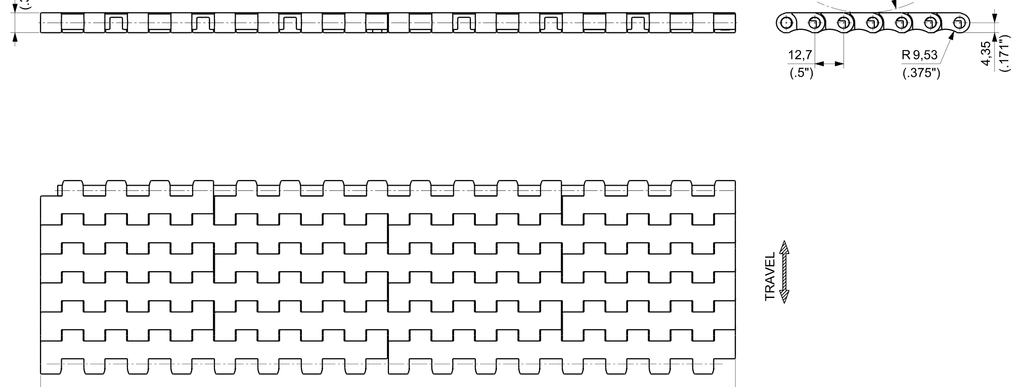

Pitch: 12.7 mm
Thickness: 8.7 mm
Material: PP — Special Polypropylene
Packaging: Rolls of 3.048 m
