PP 3135 Series

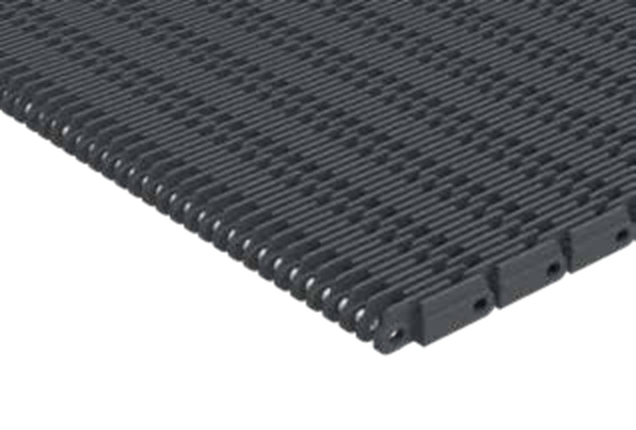

Matveyor 3135 Series raised rib modular belt, 50,8 mm pitch, PP — Special Polypropylene. Belt widths 304,8 mm (12") or wider in 76,2 mm (3") increments; belts wider than 1524 mm (60") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 63" wide belt → 3135PP063). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
3135PP012 |
12" (304.8 mm) | Austenitic Stainless Steel | 24670 N |
3.28 kg/m |
3135PP015 |
15" (381.0 mm) | Austenitic Stainless Steel | 24670 N |
4.1 kg/m |
3135PP018 |
18" (457.2 mm) | Austenitic Stainless Steel | 24670 N |
4.92 kg/m |
3135PP021 |
21" (533.4 mm) | Austenitic Stainless Steel | 24670 N |
5.74 kg/m |
3135PP024 |
24" (609.6 mm) | Austenitic Stainless Steel | 24670 N |
6.56 kg/m |
3135PP027 |
27" (685.8 mm) | Austenitic Stainless Steel | 24670 N |
7.38 kg/m |
3135PP030 |
30" (762.0 mm) | Austenitic Stainless Steel | 24670 N |
8.2 kg/m |
3135PP033 |
33" (838.2 mm) | Austenitic Stainless Steel | 24670 N |
9.02 kg/m |
3135PP036 |
36" (914.4 mm) | Austenitic Stainless Steel | 24670 N |
9.84 kg/m |
3135PP039 |
39" (990.6 mm) | Austenitic Stainless Steel | 24670 N |
10.66 kg/m |
3135PP042 |
42" (1066.8 mm) | Austenitic Stainless Steel | 24670 N |
11.48 kg/m |
3135PP045 |
45" (1143.0 mm) | Austenitic Stainless Steel | 24670 N |
12.3 kg/m |
3135PP048 |
48" (1219.2 mm) | Austenitic Stainless Steel | 24670 N |
13.12 kg/m |
3135PP051 |
51" (1295.4 mm) | Austenitic Stainless Steel | 24670 N |
13.94 kg/m |
3135PP054 |
54" (1371.6 mm) | Austenitic Stainless Steel | 24670 N |
14.76 kg/m |
3135PP057 |
57" (1447.8 mm) | Austenitic Stainless Steel | 24670 N |
15.58 kg/m |
3135PP060 |
60" (1524.0 mm) | Austenitic Stainless Steel | 24670 N |
16.4 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
50.8mm- Thickness
14.2mm- Material
- PP — Special Polypropylene
- Packaging
- Rolls of
3.048m
PP — Special Polypropylene
For Matveyor® Belts. Special polypropylene that guarantees the best corrosion resistance to withstand chemical attack and an optimum high temperature resistance.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
