Regina

ULF HF 200 Series

Name: ULF HF 200 Series
Brand: Regina

Modular Belts · HF 200

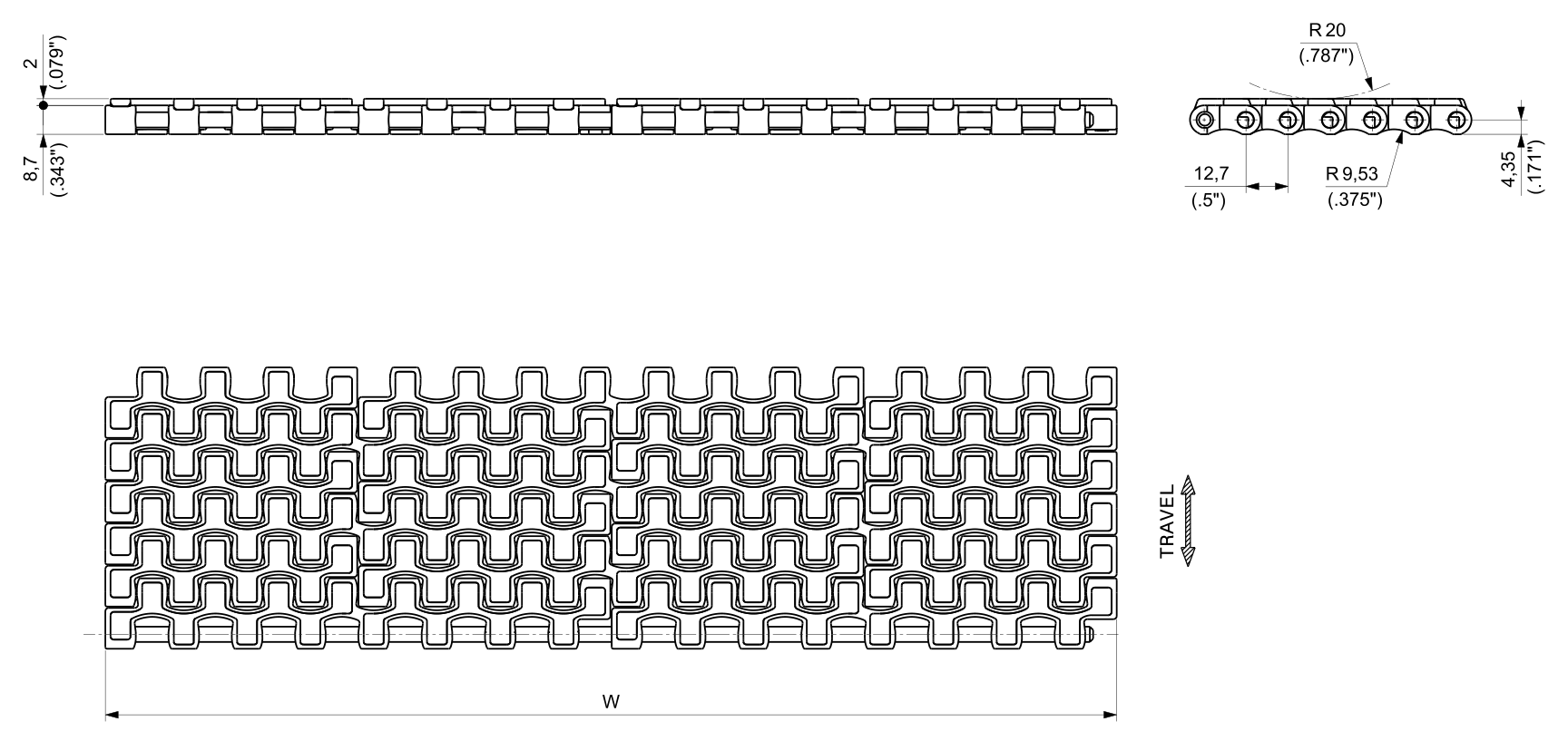

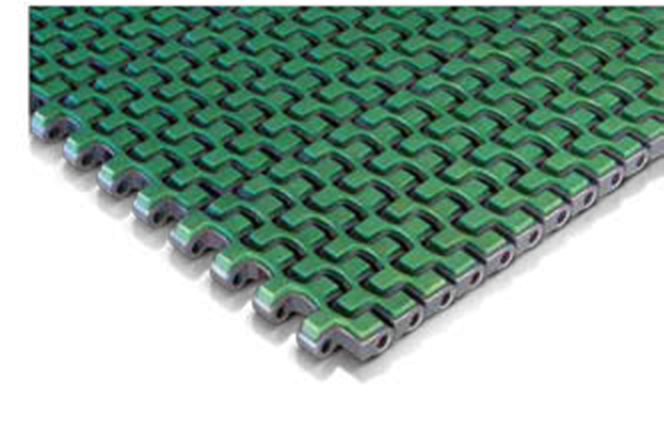

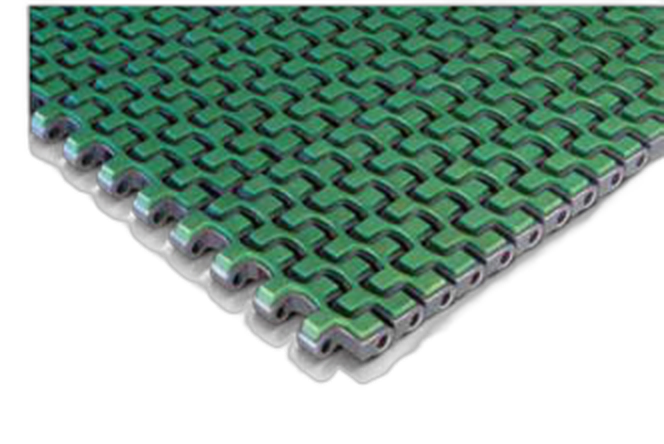

Matveyor HF 200 Series rubberized surface modular belt, 12,7 mm pitch, ULF — Ultra Low Friction Polyester Resin. Belt widths 76,2 mm (3") or wider in 76,2 mm (3") increments; belts wider than 990,6 mm (39") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 42" wide ULF belt → HF200ULF042). Belts are supplied in the length requested by the customer.

Select a row to add it to your quote

Width

Code	Width W	Pin	Working load	Weight
`HF200ULF003`	3" (76.2 mm)	Austenitic Stainless Steel	`10000` N	`0.68` kg/m
`HF200ULF006`	6" (152.4 mm)	Austenitic Stainless Steel	`10000` N	`1.35` kg/m
`HF200ULF009`	9" (228.6 mm)	Austenitic Stainless Steel	`10000` N	`2.03` kg/m
`HF200ULF012`	12" (304.8 mm)	Austenitic Stainless Steel	`10000` N	`2.7` kg/m
`HF200ULF015`	15" (381.0 mm)	Austenitic Stainless Steel	`10000` N	`3.38` kg/m
`HF200ULF018`	18" (457.2 mm)	Austenitic Stainless Steel	`10000` N	`4.05` kg/m
`HF200ULF021`	21" (533.4 mm)	Austenitic Stainless Steel	`10000` N	`4.73` kg/m
`HF200ULF024`	24" (609.6 mm)	Austenitic Stainless Steel	`10000` N	`5.4` kg/m
`HF200ULF027`	27" (685.8 mm)	Austenitic Stainless Steel	`10000` N	`6.08` kg/m
`HF200ULF030`	30" (762.0 mm)	Austenitic Stainless Steel	`10000` N	`6.75` kg/m
`HF200ULF033`	33" (838.2 mm)	Austenitic Stainless Steel	`10000` N	`7.43` kg/m
`HF200ULF036`	36" (914.4 mm)	Austenitic Stainless Steel	`10000` N	`8.1` kg/m
`HF200ULF039`	39" (990.6 mm)	Austenitic Stainless Steel	`10000` N	`8.78` kg/m

Type: Matveyor
Pitch: 12.7 mm
Thickness: 8.7 mm
Material: ULF — Ultra Low Friction Polyester Resin
Packaging: Rolls of 3.048 m
