Regina

UP 611 Series

Name: UP 611 Series
Brand: Regina

Modular Belts · 611

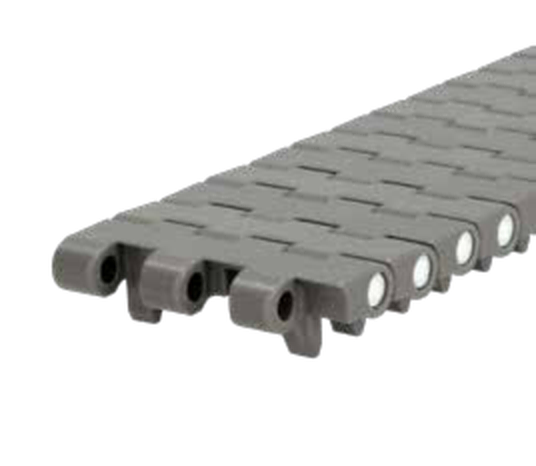

½" pitch chain, combined with curved bottom contour provides chordal effect minimization, down to 0,15 mm with a ¾" diameter nosebar, with the maximization of product stability during travel and head transfer. Rolls of 3,048 m (10 feet).

Select a part number to add it to your quote

Width

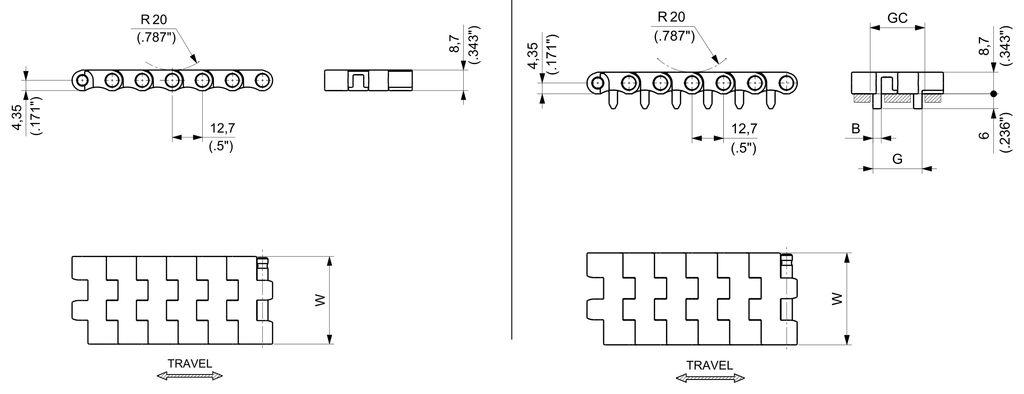

Width W	Guide track GC	Internal guide G	Tracking guide thickness B	Working load	Part Number: Without Tracking Guide	Weight
`34` mm	`21.8` mm	`19.8` mm	`3.4` mm	`570` N		`0.32` kg/m
`37` mm	`21.8` mm	`19.8` mm	`3.4` mm	`570` N		`0.35` kg/m
`51` mm	`37.8` mm	`35.8` mm	`5` mm	`570` N		`0.49` kg/m
`76` mm	`45` mm	`43` mm	`5.25` mm	`1067` N		`0.75` kg/m
`29` mm	`21.8` mm	`19.8` mm	`3.4` mm	`570` N	—	`0.29` kg/m

Type: Matveyor
Pitch: 12.7 mm
Thickness: 8.7 mm
Material: UP — Ultra Performance Homopolymer Delrin®
Packaging: Rolls of 3.048 m
