Regina
UP 650M Series

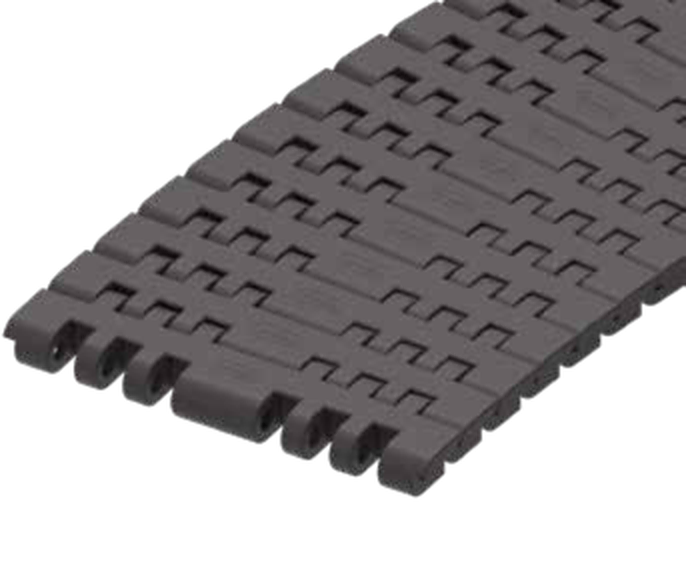

Sideflexing magnetic ½" pitch chain, 8,7 mm (0.343") thickness, solid top. For packaging machine infeed layouts with 90° curves (corner tracks — Regina Conveyor Catalogue p303). Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Sideflexing radius R | Working load | Weight |
|---|---|---|---|---|---|
UP650MKRA/000 |
83.8 mm (3.30")
|
8.7 mm
|
500 mm
|
2500 N
|
1.19 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
12.7mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
