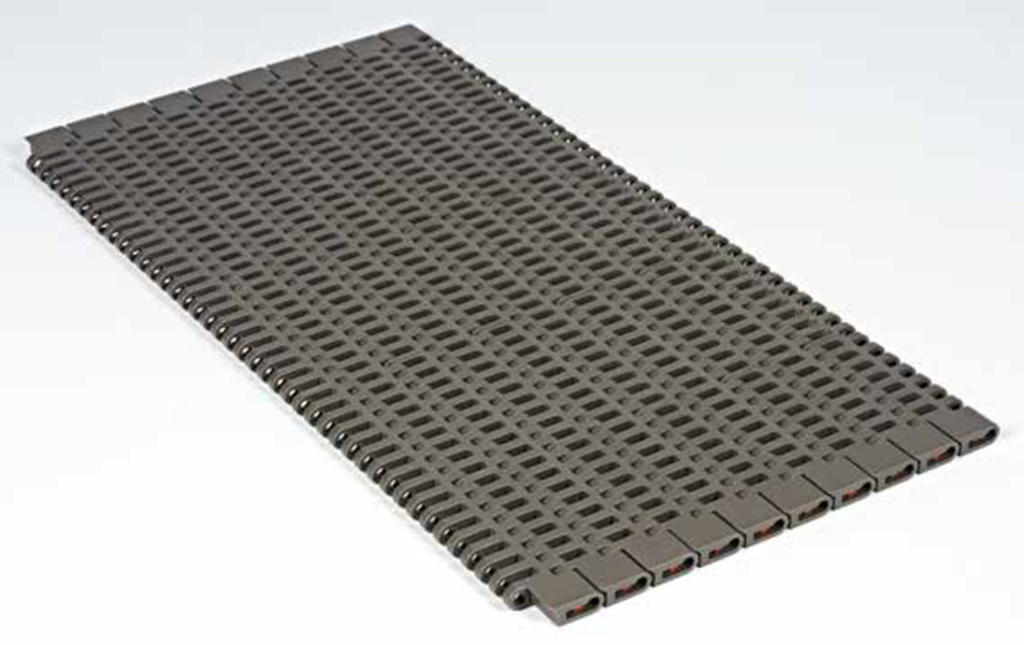

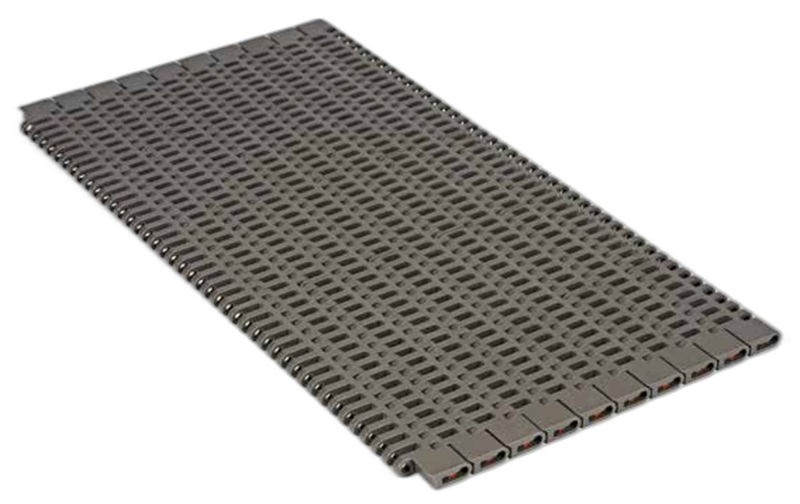

UP 7200 Series
Matveyor 7200 Series flush grid modular belt, 19,05 mm pitch, UP — Ultra Performance Homopolymer Delrin®. Belt widths 228,6 mm (9") or wider in 76,2 mm (3") increments; belts wider than 1524 mm (60") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 63" wide UP belt → 7200UP063). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
7200UP009 |
9" (228.6 mm) | Austenitic Stainless Steel | 30000 N |
1.93 kg/m |
7200UP012 |
12" (304.8 mm) | Austenitic Stainless Steel | 30000 N |
2.58 kg/m |
7200UP015 |
15" (381.0 mm) | Austenitic Stainless Steel | 30000 N |
3.22 kg/m |
7200UP018 |
18" (457.2 mm) | Austenitic Stainless Steel | 30000 N |
3.87 kg/m |
7200UP021 |
21" (533.4 mm) | Austenitic Stainless Steel | 30000 N |
4.51 kg/m |
7200UP024 |
24" (609.6 mm) | Austenitic Stainless Steel | 30000 N |
5.16 kg/m |
7200UP027 |
27" (685.8 mm) | Austenitic Stainless Steel | 30000 N |
5.8 kg/m |
7200UP030 |
30" (762.0 mm) | Austenitic Stainless Steel | 30000 N |
6.45 kg/m |
7200UP033 |
33" (838.2 mm) | Austenitic Stainless Steel | 30000 N |
7.09 kg/m |
7200UP036 |
36" (914.4 mm) | Austenitic Stainless Steel | 30000 N |
7.74 kg/m |
7200UP039 |
39" (990.6 mm) | Austenitic Stainless Steel | 30000 N |
8.38 kg/m |
7200UP042 |
42" (1066.8 mm) | Austenitic Stainless Steel | 30000 N |
9.03 kg/m |
7200UP045 |
45" (1143.0 mm) | Austenitic Stainless Steel | 30000 N |
9.67 kg/m |
7200UP048 |
48" (1219.2 mm) | Austenitic Stainless Steel | 30000 N |
10.31 kg/m |
7200UP051 |
51" (1295.4 mm) | Austenitic Stainless Steel | 30000 N |
10.96 kg/m |
7200UP054 |
54" (1371.6 mm) | Austenitic Stainless Steel | 30000 N |
11.6 kg/m |
7200UP057 |
57" (1447.8 mm) | Austenitic Stainless Steel | 30000 N |
12.25 kg/m |
7200UP060 |
60" (1524.0 mm) | Austenitic Stainless Steel | 30000 N |
12.89 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
19.05mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
