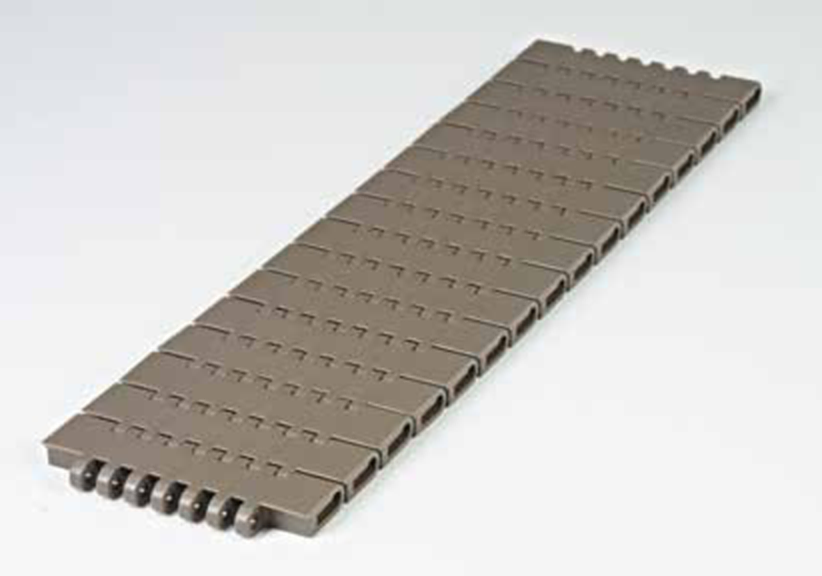

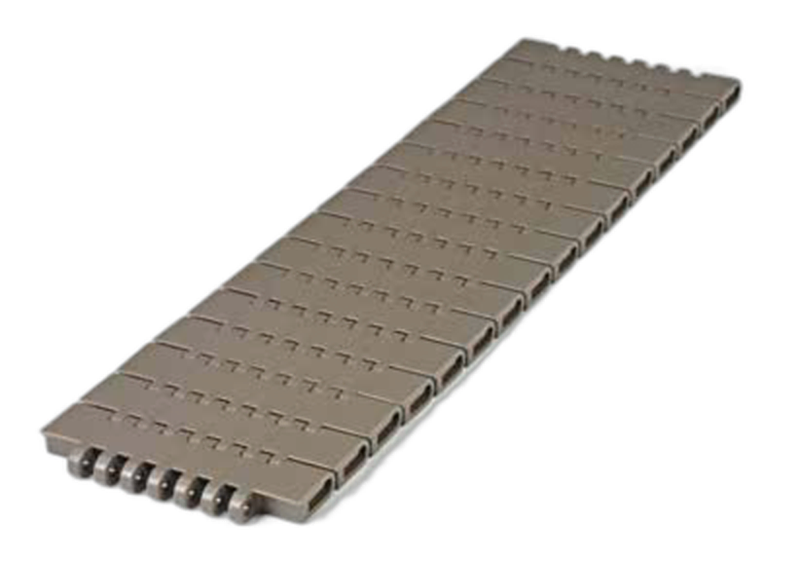

UP 7300 Series Chain
Extremely good flatness, manufacturing accuracy, and low coefficient of friction make the side transfer of the products very easy. Completely closed surface, no gap between the modules, even when engaging on the sprockets. Particularly suitable for glass products, small sized products and unstable containers (for example PET bottles with petaloid base). Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote

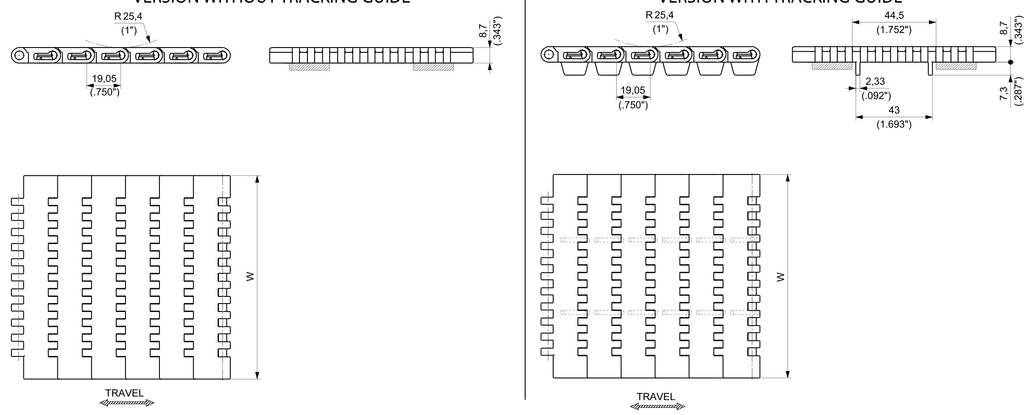

| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
8.7 mm |
2300 N |
0.84 kg/m |
||
114.3 mm |
8.7 mm |
3290 N |
1.15 kg/m |
||
152.4 mm |
8.7 mm |
4370 N |
1.51 kg/m |
||
190.5 mm |
8.7 mm |
5450 N |
1.87 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
19.05mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
