Description

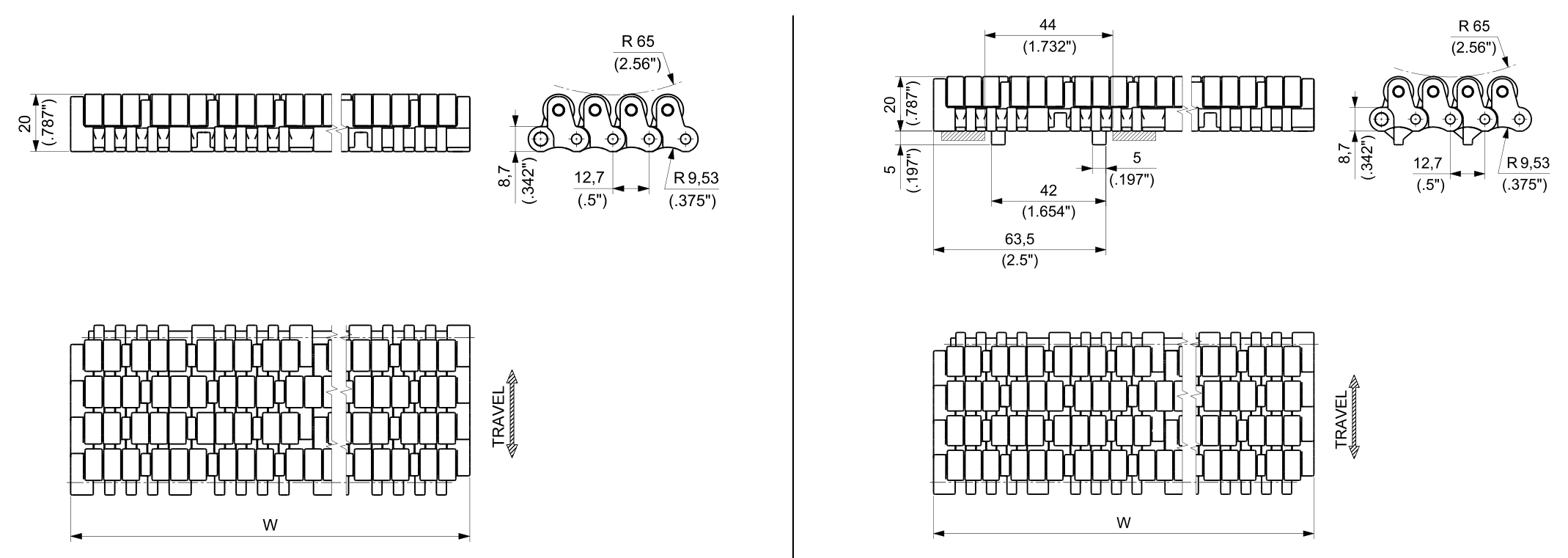

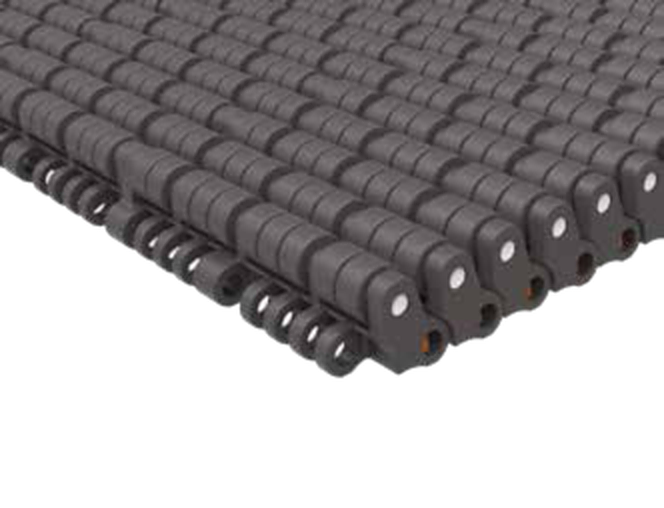

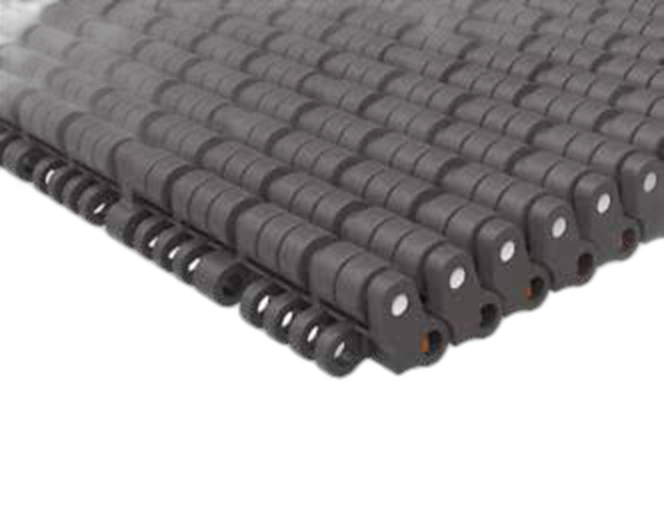

Matveyor LBP 610 Series lbp rollers modular belt, 12,7 mm pitch, UP — Ultra Performance Homopolymer Delrin® (module and roller). Belt widths 85 mm (3.346") or wider in 85 mm (3.346") increments; belts wider than 1020 mm (40.16") are available in 85 mm (3.35") increments by substituting the last four digits of the part number with the desired width (e.g. 1105 mm wide belt without guide → LBP610AUP1105). Belt widths ≤ 680 mm (26.77") are supplied in rolls of 1,524 m (5 ft) each. Belt widths ≥ 765 mm (30.12") and ≤ 1020 mm (40.16") are supplied in rolls of 1,016 m (3.33 ft) each. Belt widths ≥ 1105 mm (43.50") are supplied at the length requested by the customer.
