AR USP Series

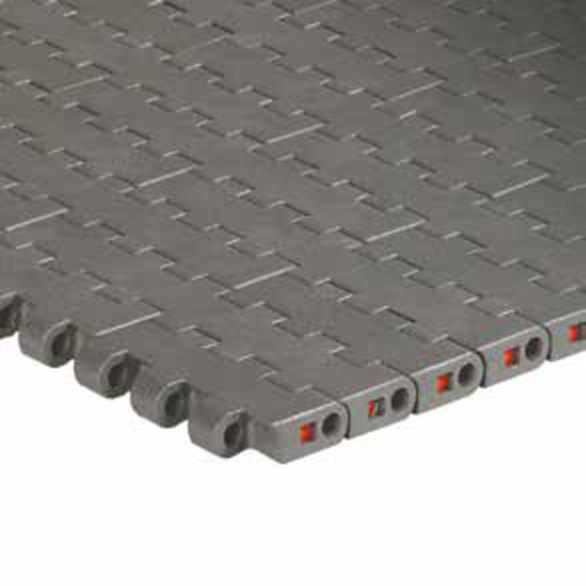

Matveyor USP Series solid top modular belt, 25,4 mm pitch, AR — Abrasion Resistant Polyamide. Belt widths 152,4 mm (6") or wider in 76,2 mm (3") increments; belts wider than 1524 mm (60") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 63" wide UP belt → USPUP063). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
USPAR006 |
6" (152.4 mm) | Austenitic Stainless Steel | 30000 N |
2.04 kg/m |
USPAR009 |
9" (228.6 mm) | Austenitic Stainless Steel | 30000 N |
3.06 kg/m |
USPAR012 |
12" (304.8 mm) | Austenitic Stainless Steel | 30000 N |
4.08 kg/m |
USPAR015 |
15" (381.0 mm) | Austenitic Stainless Steel | 30000 N |
5.11 kg/m |
USPAR018 |
18" (457.2 mm) | Austenitic Stainless Steel | 30000 N |
6.13 kg/m |
USPAR021 |
21" (533.4 mm) | Austenitic Stainless Steel | 30000 N |
7.15 kg/m |
USPAR024 |
24" (609.6 mm) | Austenitic Stainless Steel | 30000 N |
8.17 kg/m |
USPAR027 |
27" (685.8 mm) | Austenitic Stainless Steel | 30000 N |
9.19 kg/m |
USPAR030 |
30" (762.0 mm) | Austenitic Stainless Steel | 30000 N |
10.21 kg/m |
USPAR033 |
33" (838.2 mm) | Austenitic Stainless Steel | 30000 N |
11.23 kg/m |
USPAR036 |
36" (914.4 mm) | Austenitic Stainless Steel | 30000 N |
12.25 kg/m |
USPAR039 |
39" (990.6 mm) | Austenitic Stainless Steel | 30000 N |
13.27 kg/m |
USPAR042 |
42" (1066.8 mm) | Austenitic Stainless Steel | 30000 N |
14.3 kg/m |
USPAR045 |
45" (1143.0 mm) | Austenitic Stainless Steel | 30000 N |
15.32 kg/m |
USPAR048 |
48" (1219.2 mm) | Austenitic Stainless Steel | 30000 N |
16.34 kg/m |
USPAR051 |
51" (1295.4 mm) | Austenitic Stainless Steel | 30000 N |
17.36 kg/m |
USPAR054 |
54" (1371.6 mm) | Austenitic Stainless Steel | 30000 N |
18.38 kg/m |
USPAR057 |
57" (1447.8 mm) | Austenitic Stainless Steel | 30000 N |
19.4 kg/m |
USPAR060 |
60" (1524.0 mm) | Austenitic Stainless Steel | 30000 N |
20.42 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- AR — Abrasion Resistant Polyamide
- Packaging
- Rolls of
3.048m
AR — Abrasion Resistance Polyamide
Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.
