Regina

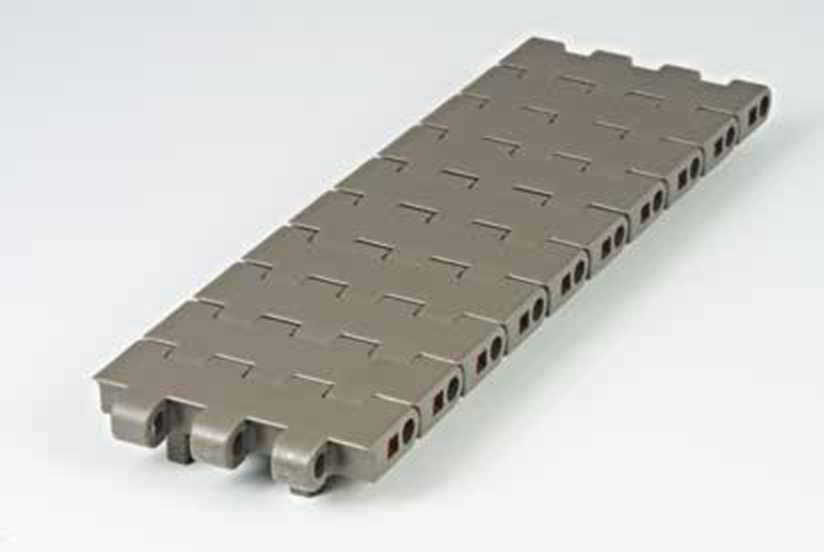

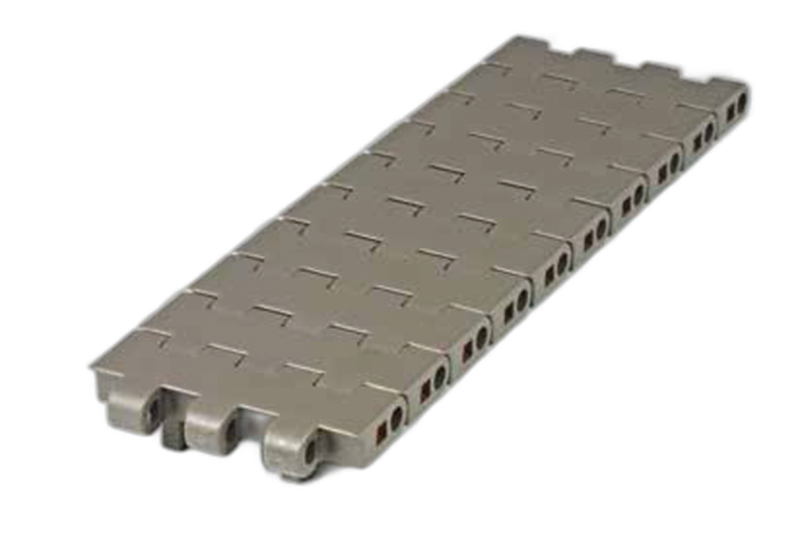

AR USP Series Chain
Completely closed surface, no gap between modules, even when engaging on the sprockets. Particularly suitable for glass products. Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote
| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
12.7 mm |
2500 N |
1.23 kg/m |
||
114.3 mm |
12.7 mm |
3430 N |
1.67 kg/m |
||
190.5 mm |
12.7 mm |
5710 N |
2.73 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- AR — Abrasion Resistant Polyamide
- Packaging
- Rolls of
3.048m
AR — Abrasion Resistance Polyamide
Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.
