D2K USP Series

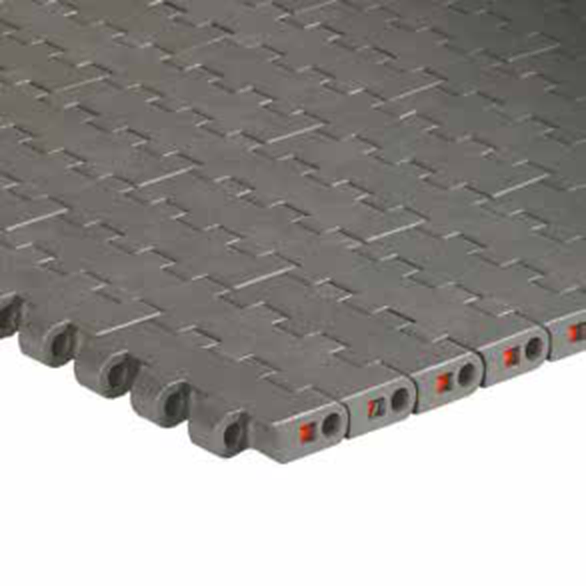

Matveyor USP Series solid top modular belt, 25,4 mm pitch, D2K — Special Delrin® Reinforced with Kevlar®. Belt widths 152,4 mm (6") or wider in 76,2 mm (3") increments; belts wider than 1524 mm (60") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 63" wide UP belt → USPUP063). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
USPD2K006 |
6" (152.4 mm) | Austenitic Stainless Steel | 30000 N |
2.12 kg/m |
USPD2K009 |
9" (228.6 mm) | Austenitic Stainless Steel | 30000 N |
3.18 kg/m |
USPD2K012 |
12" (304.8 mm) | Austenitic Stainless Steel | 30000 N |
4.25 kg/m |
USPD2K015 |
15" (381.0 mm) | Austenitic Stainless Steel | 30000 N |
5.31 kg/m |
USPD2K018 |
18" (457.2 mm) | Austenitic Stainless Steel | 30000 N |
6.37 kg/m |
USPD2K021 |
21" (533.4 mm) | Austenitic Stainless Steel | 30000 N |
7.43 kg/m |
USPD2K024 |
24" (609.6 mm) | Austenitic Stainless Steel | 30000 N |
8.49 kg/m |
USPD2K027 |
27" (685.8 mm) | Austenitic Stainless Steel | 30000 N |
9.55 kg/m |
USPD2K030 |
30" (762.0 mm) | Austenitic Stainless Steel | 30000 N |
10.61 kg/m |
USPD2K033 |
33" (838.2 mm) | Austenitic Stainless Steel | 30000 N |
11.68 kg/m |
USPD2K036 |
36" (914.4 mm) | Austenitic Stainless Steel | 30000 N |
12.74 kg/m |
USPD2K039 |
39" (990.6 mm) | Austenitic Stainless Steel | 30000 N |
13.8 kg/m |
USPD2K042 |
42" (1066.8 mm) | Austenitic Stainless Steel | 30000 N |
14.86 kg/m |
USPD2K045 |
45" (1143.0 mm) | Austenitic Stainless Steel | 30000 N |
15.92 kg/m |
USPD2K048 |
48" (1219.2 mm) | Austenitic Stainless Steel | 30000 N |
16.98 kg/m |
USPD2K051 |
51" (1295.4 mm) | Austenitic Stainless Steel | 30000 N |
18.04 kg/m |
USPD2K054 |
54" (1371.6 mm) | Austenitic Stainless Steel | 30000 N |
19.11 kg/m |
USPD2K057 |
57" (1447.8 mm) | Austenitic Stainless Steel | 30000 N |
20.17 kg/m |
USPD2K060 |
60" (1524.0 mm) | Austenitic Stainless Steel | 30000 N |
21.23 kg/m |
No products match the selected filters.

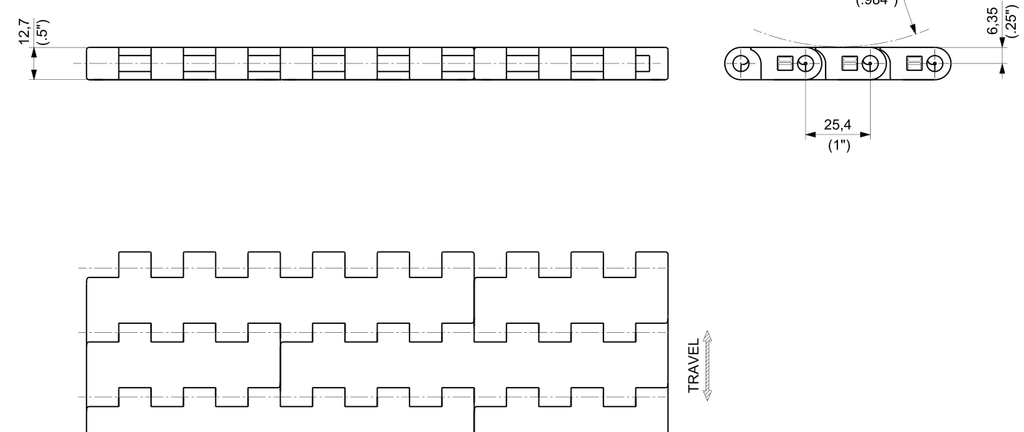

Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
