Regina

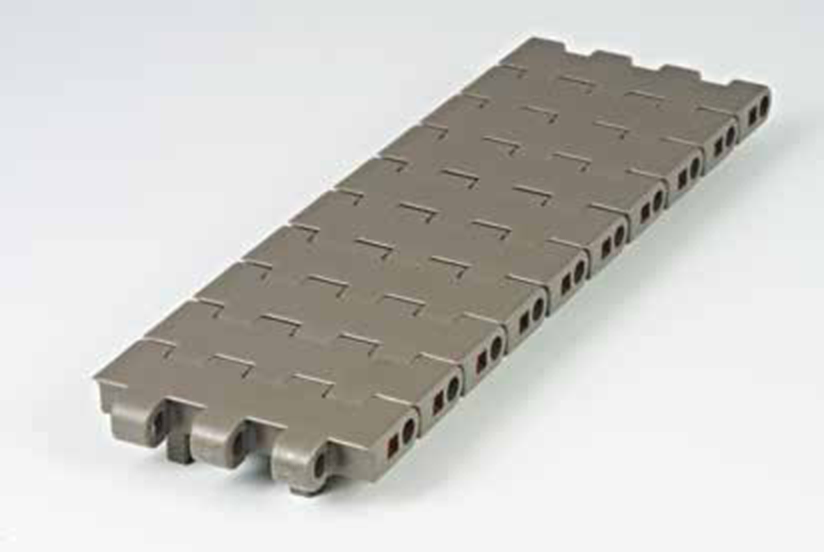

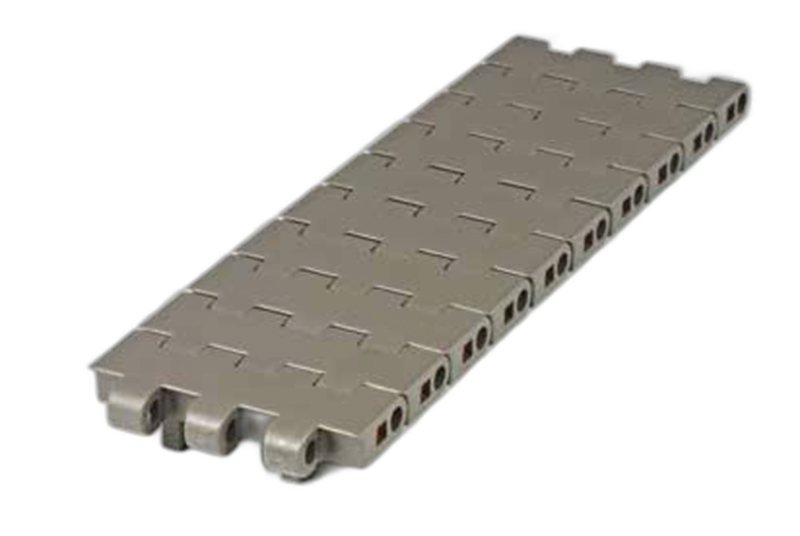

D2K USP Series Chain
Completely closed surface, no gap between modules, even when engaging on the sprockets. Particularly suitable for glass products. Rolls of 3,048 m (10 feet).
Product Configuration
Select a part number to add it to your quote

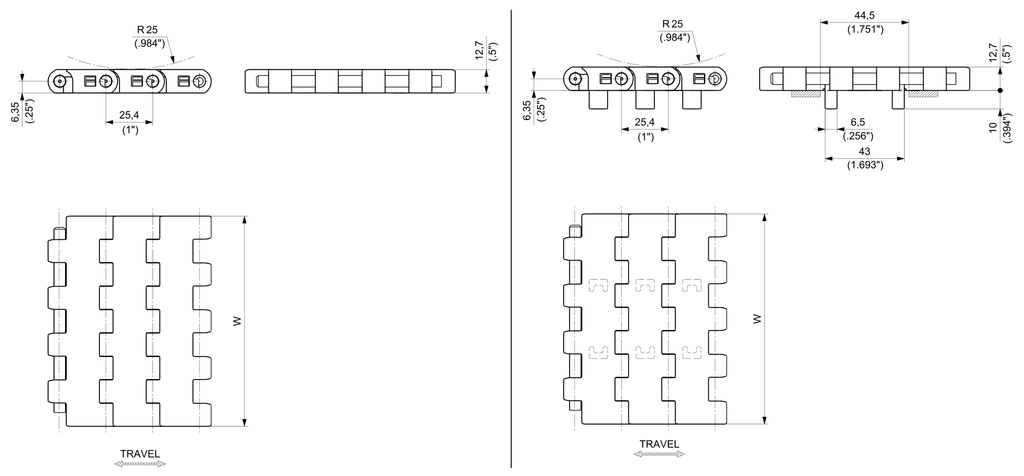

| Width W | Plate thickness | Working load | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|---|---|
82.6 mm |
12.7 mm |
2500 N |
1.27 kg/m |
||
114.3 mm |
12.7 mm |
3430 N |
1.73 kg/m |
||
190.5 mm |
12.7 mm |
5710 N |
2.83 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
