Description

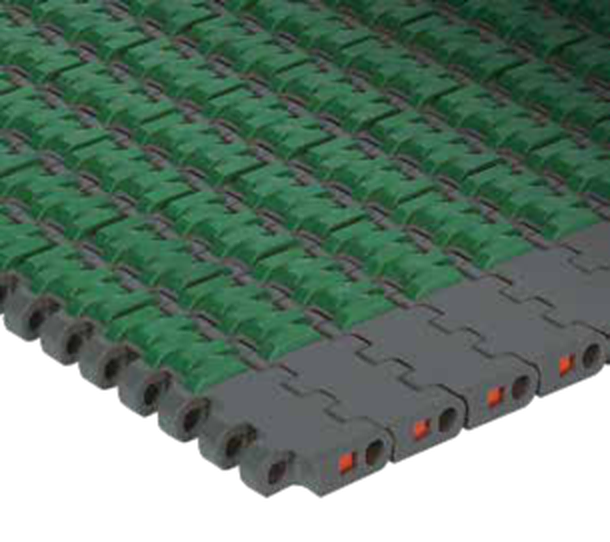

Matveyor HFS USPM Series rubberized surface — side indent modular belt, 25,4 mm pitch, ULF — Ultra Low Friction Polyester Resin. Belt widths 255 mm (10.04") or wider in 85 mm increments; belts wider than 1020 mm (40.16") are available in 85 mm (3.35") increments by substituting the last four digits of the part number with the desired width (e.g. 1105 mm wide ULF belt → HFSUMULF1105). Belt widths ≤ 680 mm (26.77") are supplied in rolls of 3,048 m (10 ft) each. Belt widths ≥ 765 mm (30.12") and ≤ 1020 mm (40.16") are supplied in rolls of 1,524 m (5 ft) each. Belt widths ≥ 1105 mm (43.50") are supplied at the length requested by the customer.
