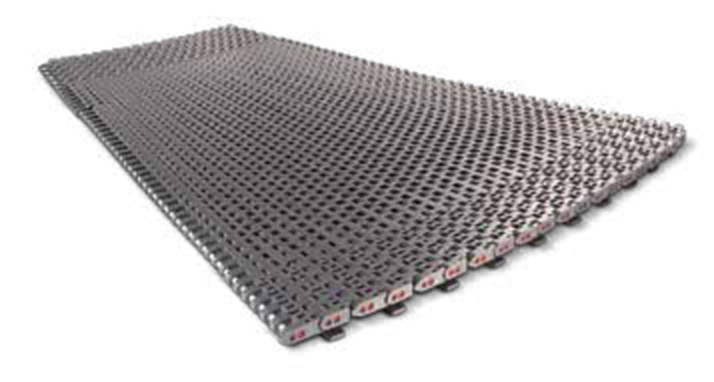

UP 2556HTB Series
Heavy duty sideflexing belt with radial bearing and split guide system, for traditional left, right or "U" turn conveying. Average ratio between internal sideflexing radius and width = 1.8. Guide system with one side TAB + Stainless Steel Bearing (waterproof). Reinforced outer modules, standard sideflexing radius. Corner tracks: Regina Conveyor Catalogue p348. Rolls of 1,524 m (5 ft).
Product Configuration
Select a row to add it to your quote

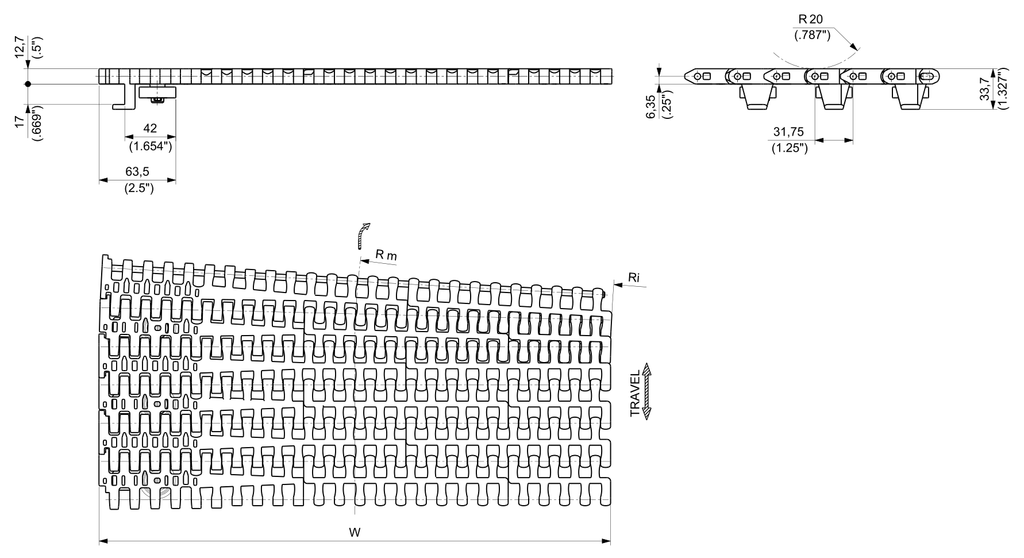

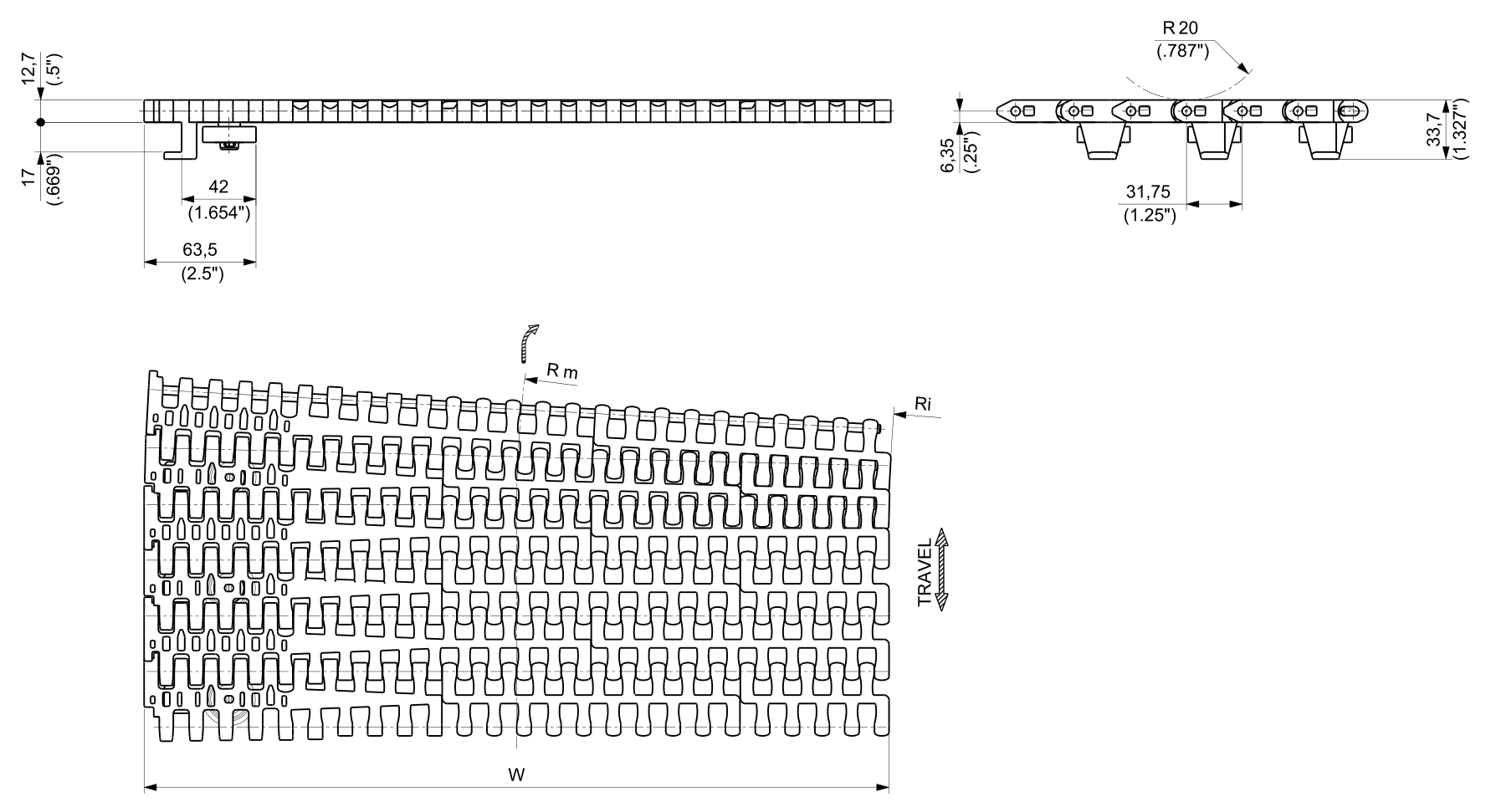

| Code | Width W | Inner radius Ri | Medium radius Rm | Weight |
|---|---|---|---|---|
2556HTB-UP0255 |
255 mm (10.04")
|
472.5 mm
|
600 mm
|
3.24 kg
|
2556HTB-UP0340 |
340 mm (13.39")
|
630 mm
|
800 mm
|
3.97 kg
|
2556HTB-UP0425 |
425 mm (16.73")
|
787.3 mm
|
1000 mm
|
4.7 kg
|
2556HTB-UP0510 |
510 mm (20.08")
|
945 mm
|
1200 mm
|
5.43 kg
|
2556HTB-UP0595 |
595 mm (23.43")
|
1102.5 mm
|
1400 mm
|
6.16 kg
|
2556HTB-UP0680 |
680 mm (26.77")
|
1260 mm
|
1600 mm
|
6.9 kg
|
2556HTB-UP0765 |
765 mm (30.12")
|
1417.5 mm
|
1800 mm
|
7.63 kg
|
2556HTB-UP0850 |
850 mm (33.46")
|
1575 mm
|
2000 mm
|
8.36 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
31.75mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
