UP USPM Series

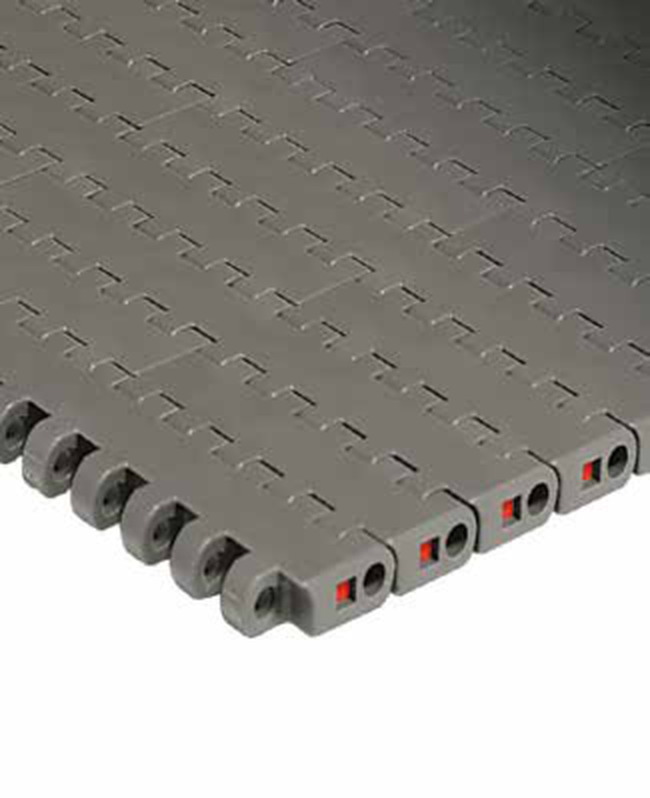

Matveyor USPM Series solid top modular belt, 25,4 mm pitch, UP — Ultra Performance Homopolymer Delrin®. Belt widths 85 mm (3.34") or wider in 85 mm (3.34") increments; belts wider than 1020 mm (40.16") are available in 85 mm (3.35") increments by substituting the last four digits of the part number with the desired width (e.g. 1105 mm wide UP belt without guide → USPMUP1105). Belt widths ≤ 680 mm (26.77") are supplied in rolls of 3,048 m (10 ft) each. Belt widths ≥ 765 mm (30.12") and ≤ 1020 mm (40.16") are supplied in rolls of 1,524 m (5 ft) each. Belt widths ≥ 1105 mm (43.50") are supplied at the length requested by the customer.
Product Configuration
Select a part number to add it to your quote
| Width | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|
| 85 mm (3.34") | 1.2 kg/m |
||
| 170 mm (6.69") | 2.4 kg/m |
||
| 255 mm (10.04") | 3.6 kg/m |
||
| 340 mm (13.39") | 4.8 kg/m |
||
| 425 mm (16.73") | 6.0 kg/m |
||
| 510 mm (20.08") | 7.2 kg/m |
||
| 595 mm (23.43") | 8.4 kg/m |
||
| 680 mm (26.77") | 9.59 kg/m |
||
| 765 mm (30.12") | 10.79 kg/m |
||
| 850 mm (33.46") | 11.99 kg/m |
||
| 935 mm (36.81") | 13.19 kg/m |
||
| 1020 mm (40.16") | 14.39 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
