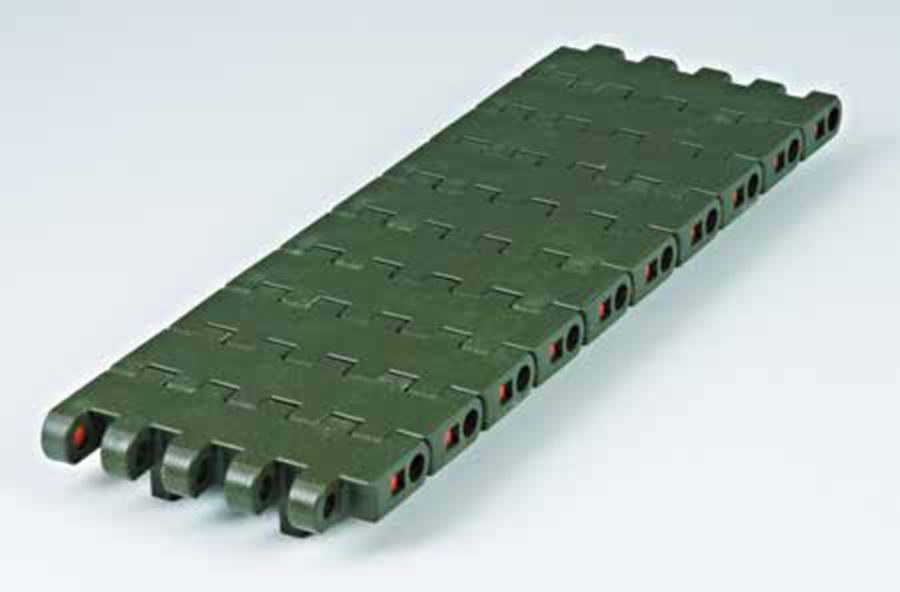

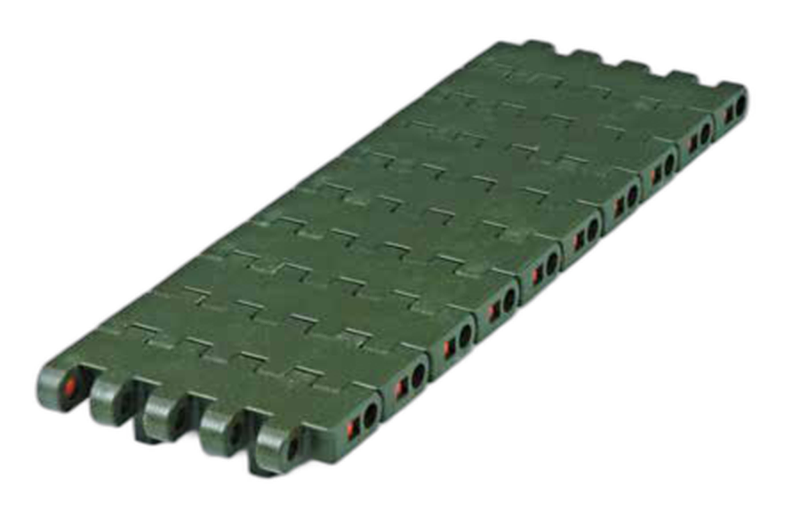

UP USPM Series Chain
The extremely good flatness, manufacturing accuracy and low coefficient of friction make the side transfer of the products very easy. Completely closed surface, no gap between the modules, even when engaging on the sprockets. Particularly suitable for glass products, small sized products and unstable containers (for example PET bottles with petaloid base). Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote

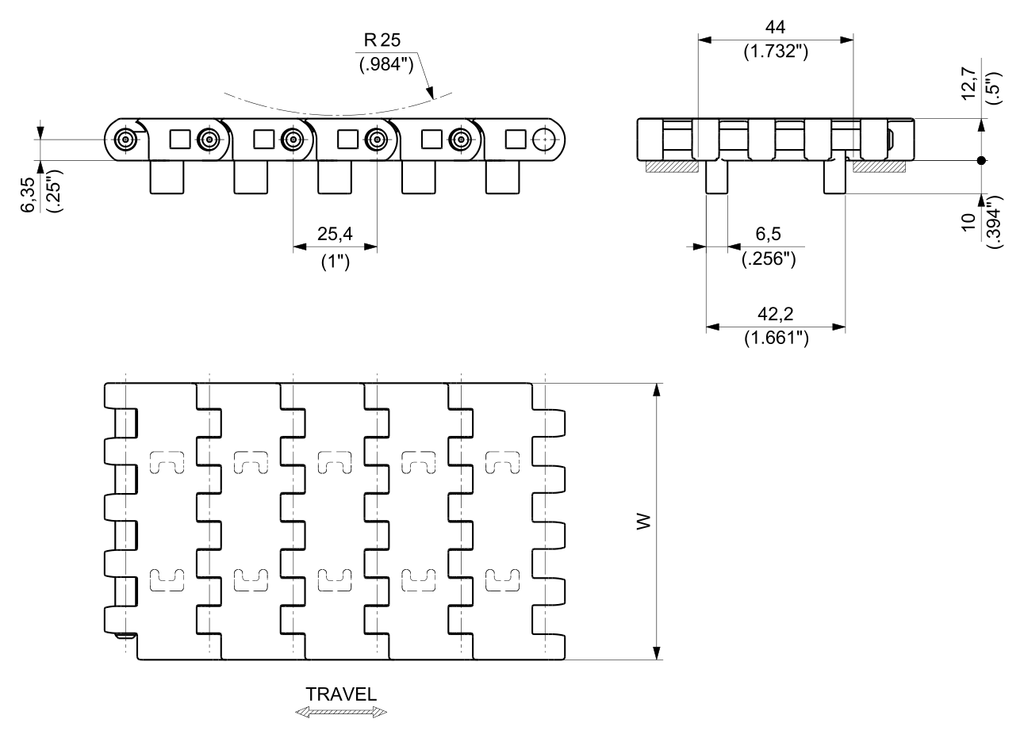

| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
USPMGUPKRA/000 |
83.8 mm (3.30")
|
12.7 mm
|
2975 N
|
1.24 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
