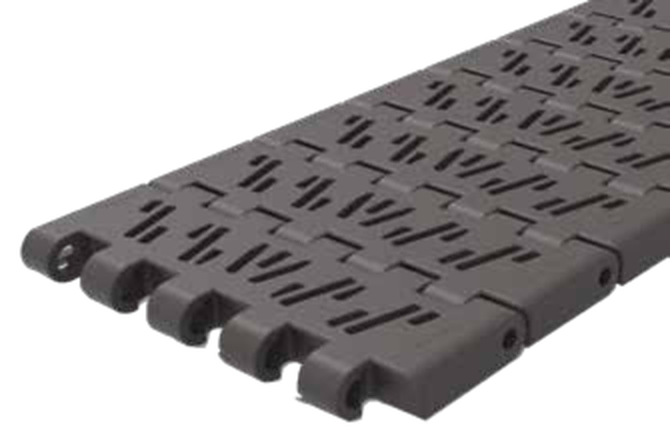

D2K 1501 Series
Excellent planarity for a superior stability and improved side transfer of the most critical beverage containers. Optimized design of the open area ensuring that liquids and contamination do not remain on the chain surface. Ideal for high speed single track conveyors and pressureless combiners and decombiners. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
1501AGD2KKRA/000 |
83.8 mm (3.30")
|
8.7 mm
|
1850 N
|
0.73 kg
|
1501AGD2K0085 |
85 mm (3.35")
|
8.7 mm
|
1850 N
|
0.73 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
