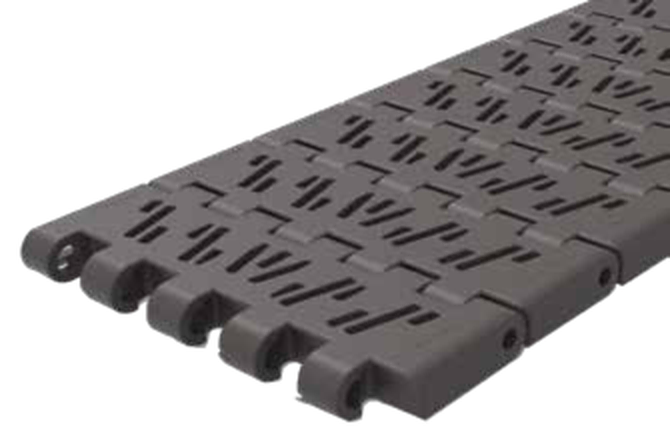

EF 1501 Series
Excellent planarity for a superior stability and improved side transfer of the most critical beverage containers. Optimized design of the open area ensuring that liquids and contamination do not remain on the chain surface. Ideal for high speed single track conveyors and pressureless combiners and decombiners. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
1501AGEFKRA/000 |
83.8 mm (3.30")
|
8.7 mm
|
1850 N
|
0.73 kg
|
1501AGEF0085 |
85 mm (3.35")
|
8.7 mm
|
1850 N
|
0.73 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic
- Packaging
- Rolls of
3.048m
EF — Ecological Friction Abating Sliding Thermoplastic (e-F.A.S.T.®)
Ultimate dry running homopolymer acetal resin developed combining REGINA field expertise with Delrin (former DuPont™) centenarian acetal resin knowledge. Today's standards for high performance filling lines require a combination of high speed and high productivity, while reducing or eliminating lubrication. REGINA e-F.A.S.T.® material is capable of exceeding such standards, thanks to its unique characteristic of delivering a much lower and constant coefficent of friction over time in dry or almost dry running conditions vs. other plastic chains.
